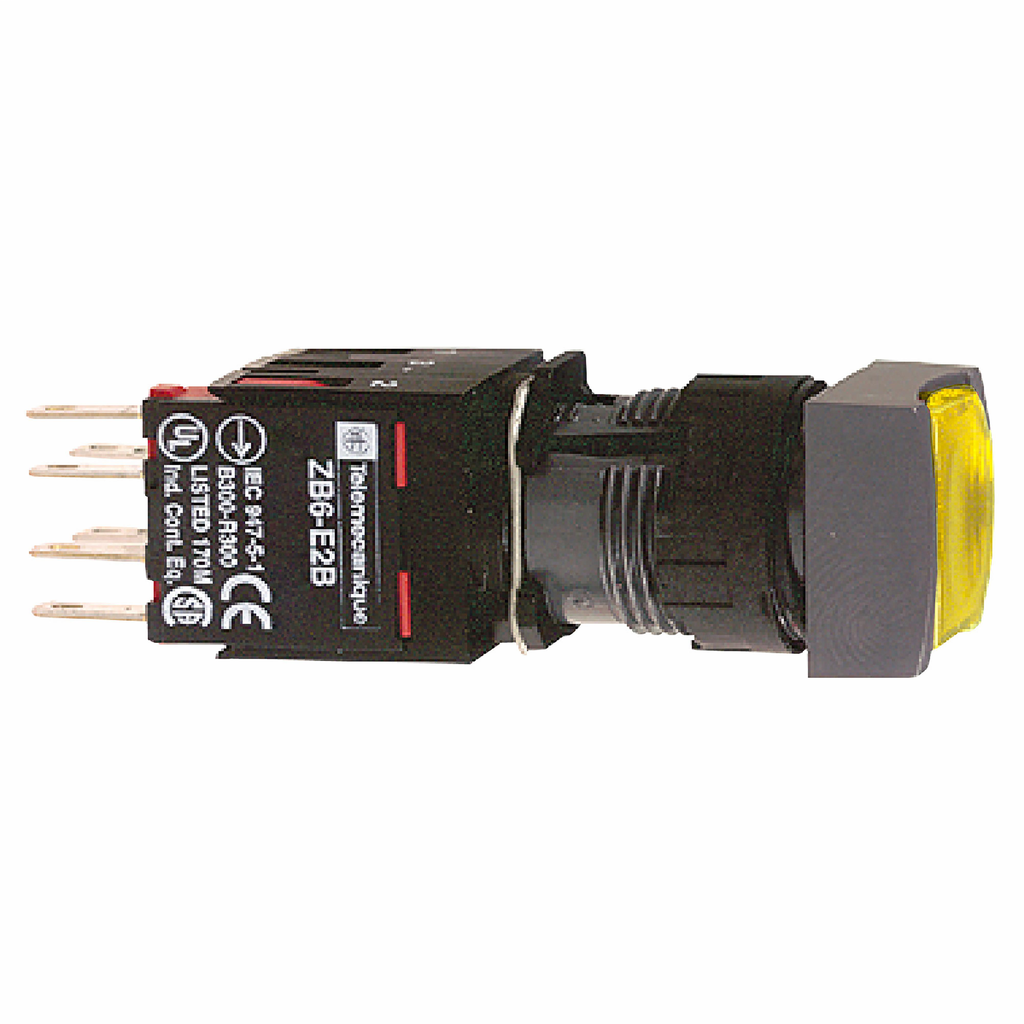

Square D™ XB6CW5G1B Sq Yellow Flush 1 no
SKUPDW~6421635
MFGR #XB6CW5G1B
Price Not Available
Schneider Electric,Sq Yellow Flush 1 no 120vac,1 NO,16 mm,48...120 V AC,Harmony XB6,LED,integral LED,complete illuminated push-button,complete illuminated push-button,plastic,slow-break,spring return
Schneider Electric,Sq Yellow Flush 1 no 120vac,1 NO,16 mm,48...120 V AC,Harmony XB6,LED,integral LED,complete illuminated push-button,complete illuminated push-button,plastic,slow-break,spring return
Action SLOW-BREAK Actuator SPRING RETURN,YELLOW FLUSH, UNMARKED Amperage Rating 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 ARRA Compliant N Bezel|Housing Plastic Bezel Buy American Compliant N Catalog Number XB6CW5G1B Connection Faston connectors 2.8 x 0.5 mm Connection Type Quick-Connect Contact Rating 3 A at 120 VAC, 1.5 A at 240 VAC, 0.22 A at 125 VDC, 0.1 A at 250 VDC Country of Origin MX Enclosure NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94 Enclosure Type NEMA 4/4X/13/IP65 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Weight Per Pack 0.1000 lb Harmonization Tariff Schedule Code 8536509031 Indicator LED,INTEGRAL LED Insulation 250 V 3)EN/IEC 60947-1 Item Group 22459 Lamp Type Integral LED Mounting Type Panel Operating Temperature -25-70 A°C Returnable Y Series XB6 Sub Brand XB6 Terminal Type Solder Tab Type Square Unmarked UNSPSC 39122216 UPC 11 785901543664 UPC 12 785901543664 Voltage Rating 48...120 V AC Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Color Yellow Contact Configuration 1NO Contact Type Slow Break Operator Type Spring Return Size 16 mm COMPLETE ILLUMINATED PUSH-BUTTON,PLASTIC Pushbuttons with momentary, selector switches and key switches, 2 or 3 positions, mushroom head pushbuttons and emergency stops Operator actuation in momentary and maintained functions Illuminated functions in push buttons, selector switches, pilot lights and emergency stops Protected LED options as well as, neon and incandescent bulbs Compact for restrictive areas Simple to install but flexible The IP65 degree of protection enables it to meet many types of applications
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | SPRING RETURN,YELLOW FLUSH, UNMARKED |
| Amperage Rating | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| ARRA Compliant | N |
| Bezel|Housing | Plastic Bezel |
| Buy American Compliant | N |
| Catalog Number | XB6CW5G1B |
| Connection | Faston connectors 2.8 x 0.5 mm |
| Connection Type | Quick-Connect |
| Contact Rating | 3 A at 120 VAC, 1.5 A at 240 VAC, 0.22 A at 125 VDC, 0.1 A at 250 VDC |
| Country of Origin | MX |
| Enclosure | NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94 |
| Enclosure Type | NEMA 4/4X/13/IP65 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1000 lb |
| Harmonization Tariff Schedule Code | 8536509031 |
| Indicator | LED,INTEGRAL LED |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 22459 |
| Lamp Type | Integral LED |
| Mounting Type | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | XB6 |
| Sub Brand | XB6 |
| Terminal Type | Solder Tab |
| Type | Square Unmarked |
| UNSPSC | 39122216 |
| UPC 11 | 785901543664 |
| UPC 12 | 785901543664 |
| Voltage Rating | 48...120 V AC |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Color | Yellow |
| Contact Configuration | 1NO |
| Contact Type | Slow Break |
| Operator Type | Spring Return |
| Size | 16 mm |
| COMPLETE ILLUMINATED PUSH-BUTTON,PLASTIC |
| Pushbuttons with momentary, selector switches and key switches, 2 or 3 positions, mushroom head pushbuttons and emergency stops |
| Operator actuation in momentary and maintained functions |
| Illuminated functions in push buttons, selector switches, pilot lights and emergency stops |
| Protected LED options as well as, neon and incandescent bulbs |
| Compact for restrictive areas |
| Simple to install but flexible |
| The IP65 degree of protection enables it to meet many types of applications |
