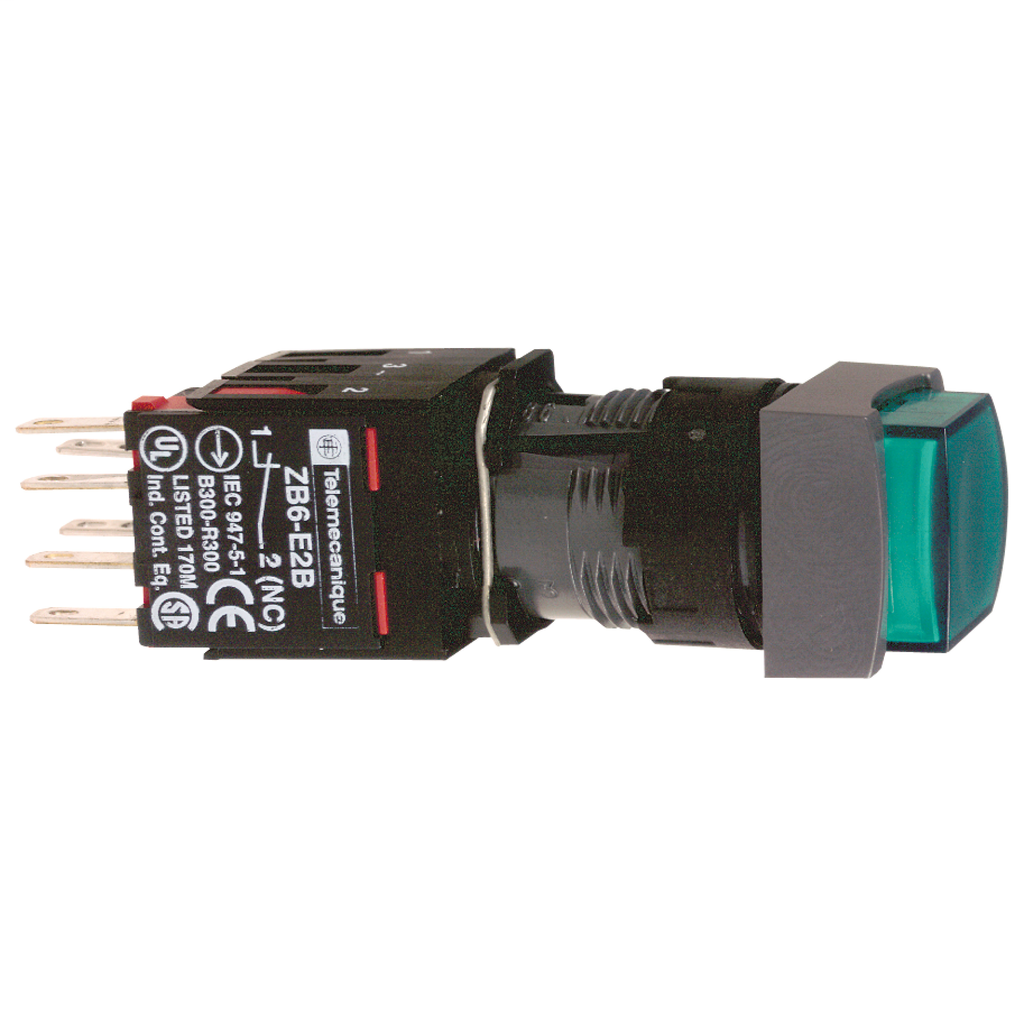

Square D™ XB6CE3B5B PUSHBUTTON OPERATOR 1
SKUPDW~6421595
MFGR #XB6CE3B5B
$/ea
Schneider Electric,PUSHBUTTON OPERATOR 16MM XB6 +OPTIONS,1 NO + 1 NC,12...24 V AC/DC,16 mm,Harmony XB6,LED,integral LED,complete illuminated push-button,complete illuminated push-button,plastic,slow-break,spring return
Schneider Electric,PUSHBUTTON OPERATOR 16MM XB6 +OPTIONS,1 NO + 1 NC,12...24 V AC/DC,16 mm,Harmony XB6,LED,integral LED,complete illuminated push-button,complete illuminated push-button,plastic,slow-break,spring return
Action SLOW-BREAK Actuator GREEN PROJECTING, UNMARKED,SPRING RETURN Amperage Rating 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 ARRA Compliant N Bezel|Housing Plastic Bezel Brand Schneider Electric Buy American Compliant N Catalog Number XB6CE3B5B Color Green Connection Faston connectors 2.8 x 0.5 mm Connection Type Quick-Connect Contact Configuration 1NO-1NC Contact Rating 3 A at 120 VAC, 1.5 A at 240 VAC, 0.22 A at 125 VDC, 0.1 A at 250 VDC Contact Type Slow Break Country of Origin MX Enclosure NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94 Enclosure Type NEMA 4/4X/13/IP65 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Weight Per Pack 0.2000 lb Harmonization Tariff Schedule Code 8536509031 Indicator LED,INTEGRAL LED Insulation 250 V 3)EN/IEC 60947-1 Item Group 22459 Lamp Type Integral LED Manufacturer Schneider Electric Mounting Type Panel Operating Temperature -25-70 A°C Operator Type Spring Return Returnable Y Series XB6 Size 16 mm Stock Status NONSTOCK Sub Brand XB6 Terminal Type Solder Tab Type Square Unmarked UNSPSC 39122216 UPC 11 785901356875 UPC 12 785901356875 Voltage Rating 12...24 V AC/DC COMPLETE ILLUMINATED PUSH-BUTTON,PLASTIC Pushbuttons with momentary, selector switches and key switches, 2 or 3 positions, mushroom head pushbuttons and emergency stops Operator actuation in momentary and maintained functions Illuminated functions in push buttons, selector switches, pilot lights and emergency stops Protected LED options as well as, neon and incandescent bulbs Compact for restrictive areas Simple to install but flexible The IP65 degree of protection enables it to meet many types of applications
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | GREEN PROJECTING, UNMARKED,SPRING RETURN |
| Amperage Rating | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| ARRA Compliant | N |
| Bezel|Housing | Plastic Bezel |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | XB6CE3B5B |
| Color | Green |
| Connection | Faston connectors 2.8 x 0.5 mm |
| Connection Type | Quick-Connect |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 3 A at 120 VAC, 1.5 A at 240 VAC, 0.22 A at 125 VDC, 0.1 A at 250 VDC |
| Contact Type | Slow Break |
| Country of Origin | MX |
| Enclosure | NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94 |
| Enclosure Type | NEMA 4/4X/13/IP65 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2000 lb |
| Harmonization Tariff Schedule Code | 8536509031 |
| Indicator | LED,INTEGRAL LED |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 22459 |
| Lamp Type | Integral LED |
| Manufacturer | Schneider Electric |
| Mounting Type | Panel |
| Operating Temperature | -25-70 A°C |
| Operator Type | Spring Return |
| Returnable | Y |
| Series | XB6 |
| Size | 16 mm |
| Stock Status | NONSTOCK |
| Sub Brand | XB6 |
| Terminal Type | Solder Tab |
| Type | Square Unmarked |
| UNSPSC | 39122216 |
| UPC 11 | 785901356875 |
| UPC 12 | 785901356875 |
| Voltage Rating | 12...24 V AC/DC |
| COMPLETE ILLUMINATED PUSH-BUTTON,PLASTIC |
| Pushbuttons with momentary, selector switches and key switches, 2 or 3 positions, mushroom head pushbuttons and emergency stops |
| Operator actuation in momentary and maintained functions |
| Illuminated functions in push buttons, selector switches, pilot lights and emergency stops |
| Protected LED options as well as, neon and incandescent bulbs |
| Compact for restrictive areas |
| Simple to install but flexible |
| The IP65 degree of protection enables it to meet many types of applications |
