Square D™

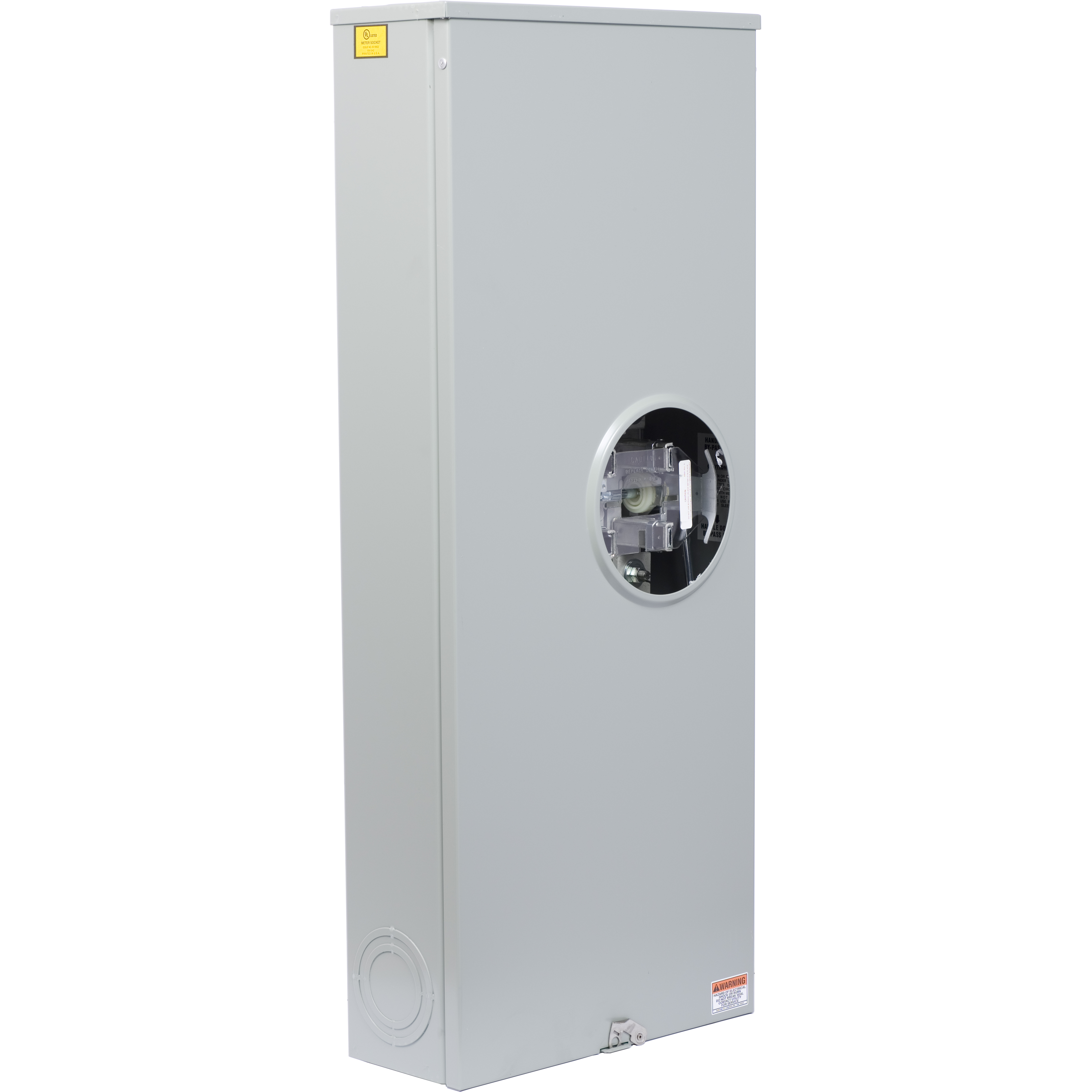

Square D™ UTH43369T 3-Wire 1-Cutout Meter Socket With Lever Bypass, 120/240 VAC, 320 A, 1 Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™
Square D™ UTH43369T 3-Wire 1-Cutout Meter Socket With Lever Bypass, 120/240 VAC, 320 A, 1 Phase, NEMA 3R Enclosure
SKUPDW~6419634
MFGR #UTH43369T
$/ea
Square D™ Meter Socket, 3-Wire 1-Cutout, 120/240 VAC, 320 A, 1 ph, Overhead/Underground Feed, 4 Jaws, 4 AWG to 600 kcmil, 6 AWG to 350 kcmil Al/Cu Wire, A-L, ACPL Closing Plate Hub, Ringless Cover, Hex Lug Terminal, Surface Mounting, NEMA 3R Enclosure
Square D™ Meter Socket, 3-Wire 1-Cutout, 120/240 VAC, 320 A, 1 ph, Overhead/Underground Feed, 4 Jaws, 4 AWG to 600 kcmil, 6 AWG to 350 kcmil Al/Cu Wire, A-L, ACPL Closing Plate Hub, Ringless Cover, Hex Lug Terminal, Surface Mounting, NEMA 3R Enclosure
Alternate Catalog Number UTH43369T ARRA Compliant N Buy American Compliant N Bypass Type Lever Bypass Cable Entry OH-UG Catalog Number UTH43369T Country of Origin US Cover Type Ringless Currency USD Enclosure Steel EU RoHS Indicator Y Feed Type Overhead/Underground Gross Weight Per Pack 0.1814 lb Gross Weight per Pack Metric 18.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 17.0000 in Height [Metric] 17.0000 cm Hub Opening A-L ACPL closing plate Hub Type A-L, ACPL Closing Plate Item Group 00039 Jaw Quantity 4 with jaw release;4 with jaw release Length 100.1000 in Length [Metric] 100.1000 cm Line Side Wire Range AWG 6...350 kcmil aluminium/copper)service ground;AWG 4...600 kcmil aluminium/copper)line side Mounting Surface Mounting Type Surface Number Of Cutouts 1 Number of Jaws 4 Returnable Y Standard UL LISTED Substitute Product Catalog Number ACPL Terminal Type Hex Lug Type 3-Wire 1-Cutout UNSPSC 39121102 UPC 11 78590123050 UPC 12 785901230502 Warranty Description Contractual Warranty:18 months Width 40.1000 in Width [Metric] 40.1000 cm Wire Size 4 AWG to 600 kcmil, 6 AWG to 350 kcmil Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 320 Enclosure Type NEMA 3R Phase 1 Voltage Rating 120/240 VAC RINGLESS 4 AWG to 600 kcmil at line side, 6 AWG to 350 kcmil aluminum/copper at service ground
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | UTH43369T |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | Lever Bypass |
| Cable Entry | OH-UG |
| Catalog Number | UTH43369T |
| Country of Origin | US |
| Cover Type | Ringless |
| Currency | USD |
| Enclosure | Steel |
| EU RoHS Indicator | Y |
| Feed Type | Overhead/Underground |
| Gross Weight Per Pack | 0.1814 lb |
| Gross Weight per Pack Metric | 18.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 17.0000 in |
| Height [Metric] | 17.0000 cm |
| Hub Opening | A-L ACPL closing plate |
| Hub Type | A-L, ACPL Closing Plate |
| Item Group | 00039 |
| Jaw Quantity | 4 with jaw release;4 with jaw release |
| Length | 100.1000 in |
| Length [Metric] | 100.1000 cm |
| Line Side Wire Range | AWG 6...350 kcmil aluminium/copper)service ground;AWG 4...600 kcmil aluminium/copper)line side |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Cutouts | 1 |
| Number of Jaws | 4 |
| Returnable | Y |
| Standard | UL LISTED |
| Substitute Product Catalog Number | ACPL |
| Terminal Type | Hex Lug |
| Type | 3-Wire 1-Cutout |
| UNSPSC | 39121102 |
| UPC 11 | 78590123050 |
| UPC 12 | 785901230502 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 40.1000 in |
| Width [Metric] | 40.1000 cm |
| Wire Size | 4 AWG to 600 kcmil, 6 AWG to 350 kcmil Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 320 |
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| Voltage Rating | 120/240 VAC |
| RINGLESS |
| 4 AWG to 600 kcmil at line side, 6 AWG to 350 kcmil aluminum/copper at service ground |
