Square D™

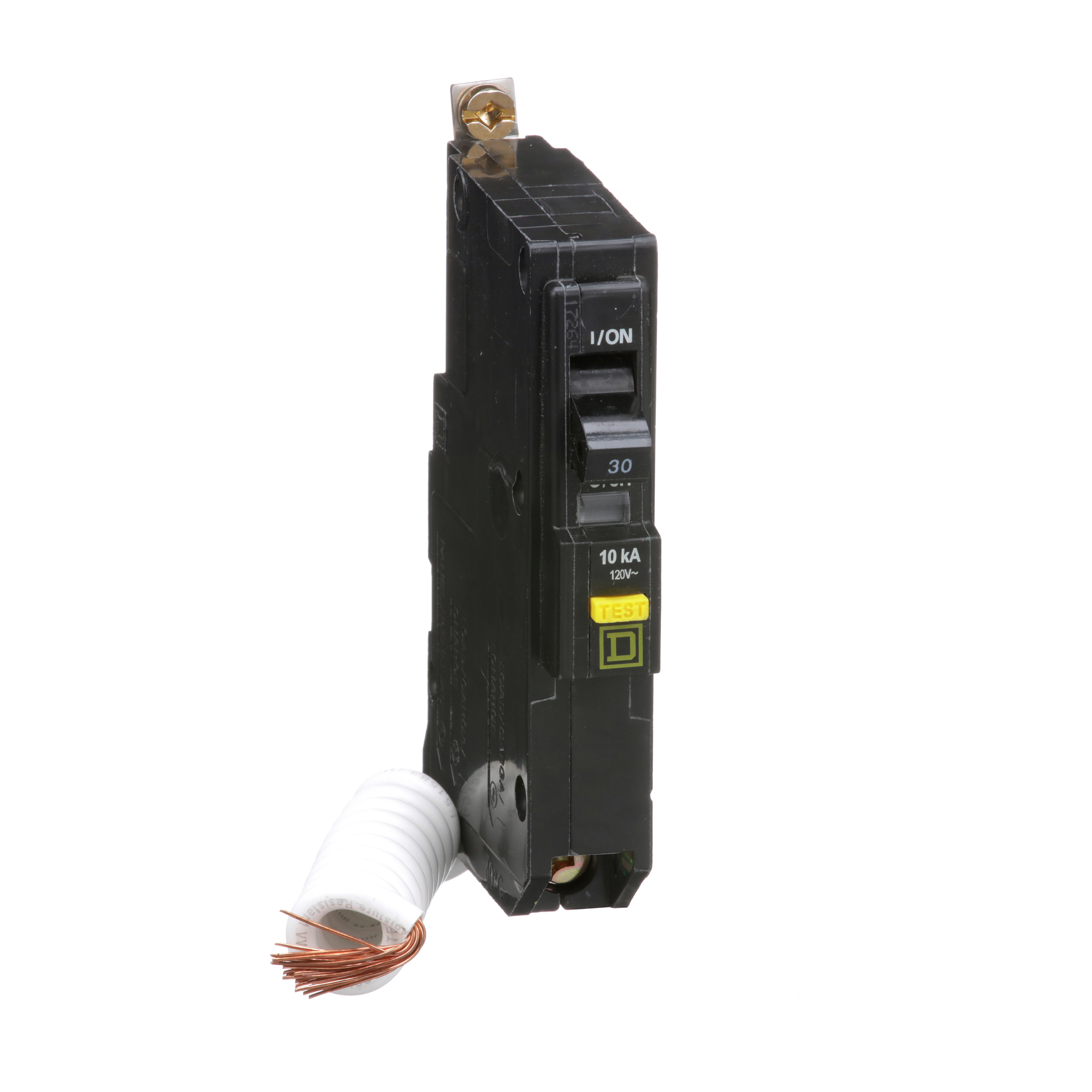

Square D™ Qwik-Gard® QOB130GFI Ground-Fault Circuit Breaker, 120 VAC, 30 A, 10 kA Interrupt, 1 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ Qwik-Gard® QOB130GFI Ground-Fault Circuit Breaker, 120 VAC, 30 A, 10 kA Interrupt, 1 Poles
SKU33129
MFGR #QOB130GFI
Your Cost: $270.65/ea
Square D QOB130GFI MINIATURE CIRCUIT BREAKER 120V 30A,1-Phase,10kA,120 Vac,30A,Ground Fault Protecting (Class A 6mA) Bolt-On,Miniature Circuit Breaker,Pressure Plate #12 to #8 AWG(Al) - #14 to #8 AWG(Cu),Provides overload and short circuit protection Designed to offer Class A ground-fault protection for people,QO,UL Listed - CSA Certified
Square D QOB130GFI MINIATURE CIRCUIT BREAKER 120V 30A,1-Phase,10kA,120 Vac,30A,Ground Fault Protecting (Class A 6mA) Bolt-On,Miniature Circuit Breaker,Pressure Plate #12 to #8 AWG(Al) - #14 to #8 AWG(Cu),Provides overload and short circuit protection Designed to offer Class A ground-fault protection for people,QO,UL Listed - CSA Certified
Alternate Catalog Number QOB130GFI Amperage Rating 30 A Application Not rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QOB130GFI Connection Pressure Plate Connection Type Pressure Plate Country of Origin MX Currency USD Dimensions 2.91 in L EU RoHS Indicator Y Frequency Rating 60 Hz Gross Volume Per Pack 27.17 Gross Volume per Pack Metric 445.24 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.5500 lb Gross Weight per Pack Metric 0.25 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 3.3020 in Height [Metric] 3.3020 cm Interrupt Rating 10 kA Item Group 00015 Length 13.9700 in Length [Metric] 13.9700 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400479&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 pH Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Temperature Rating 104 °F Trip Type Thermal Magnetic Type Class A Miniature UNSPSC 39121603 UPC 11 78590136873 UPC 12 785901368731 Voltage Rating 120 VAC Warranty Description Contractual Warranty:18 months Width 9.9060 in Width [Metric] 9.9060 cm Wire Size 12 to 8 AWG/14 to 8 AWG Not rated GROUND FAULT PROTECTING (CLASS A 6MA) BOLT-ON Qwik-Gard™ GFCIs provide the same branch circuit protection as standard QO™ circuit breakers They are longer than standard QO™ circuit breakers and thus require more gutter space Class A devices must trip at 6 mA of ground fault current and above and hold below 4 mA of ground fault current 14 to 10 AWG copper, 14 to 8 AWG copper/aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB130GFI |
| Amperage Rating | 30 A |
| Application | Not rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QOB130GFI |
| Connection | Pressure Plate |
| Connection Type | Pressure Plate |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L |
| EU RoHS Indicator | Y |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 27.17 |
| Gross Volume per Pack Metric | 445.24 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.5500 lb |
| Gross Weight per Pack Metric | 0.25 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.3020 in |
| Height [Metric] | 3.3020 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00015 |
| Length | 13.9700 in |
| Length [Metric] | 13.9700 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400479&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Class A Miniature |
| UNSPSC | 39121603 |
| UPC 11 | 78590136873 |
| UPC 12 | 785901368731 |
| Voltage Rating | 120 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.9060 in |
| Width [Metric] | 9.9060 cm |
| Wire Size | 12 to 8 AWG/14 to 8 AWG |
| Not rated |
| GROUND FAULT PROTECTING (CLASS A 6MA) BOLT-ON |
| Qwik-Gard™ GFCIs provide the same branch circuit protection as standard QO™ circuit breakers |
| They are longer than standard QO™ circuit breakers and thus require more gutter space |
| Class A devices must trip at 6 mA of ground fault current and above and hold below 4 mA of ground fault current |
| 14 to 10 AWG copper, 14 to 8 AWG copper/aluminum |
