Square D™

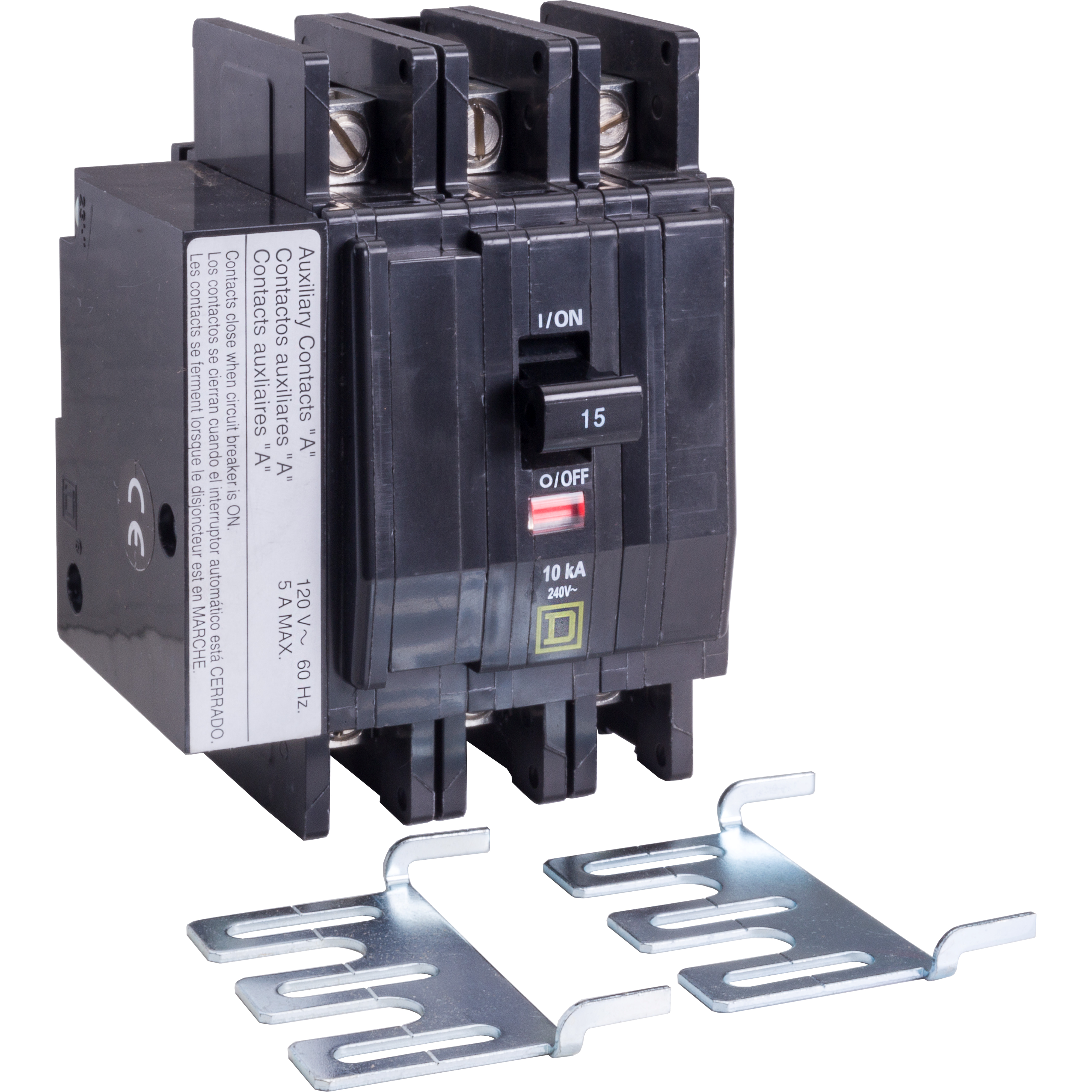

Square D™ QOU3151200 Type QOU Miniature Circuit Breaker, 240 VAC, 15 A, 10 kA at 240 VAC/5 kA at 48 VDC Interrupt
Custom_Product_Images_Illustration
Square D™
Square D™ QOU3151200 Type QOU Miniature Circuit Breaker, 240 VAC, 15 A, 10 kA at 240 VAC/5 kA at 48 VDC Interrupt
SKU644197
MFGR #QOU3151200
Your Cost: $459.72/ea
Square D QOU3151200 MINIATURE CIRCUIT BREAKER 240V 15A,10kA,15A,240VAC,3P,HACR rated,Line Box Lug - Load Box Lug #14-2 AWG(Al/Cu),Miniature Circuit Breaker,QOU,Standard Flush, Surface or DIN Rail (35mm),UL489 Listed - CSA 22.2 #5.1 Certified - IEC Rated 60947-2
Square D QOU3151200 MINIATURE CIRCUIT BREAKER 240V 15A,10kA,15A,240VAC,3P,HACR rated,Line Box Lug - Load Box Lug #14-2 AWG(Al/Cu),Miniature Circuit Breaker,QOU,Standard Flush, Surface or DIN Rail (35mm),UL489 Listed - CSA 22.2 #5.1 Certified - IEC Rated 60947-2
Alternate Catalog Number QOU3151200 Application HACR RATED ARRA Compliant N Auxiliary Contact Rating 1A Buy American Compliant N Catalog Number QOU3151200 Connection LINE: BOX LUG - LOAD: BOX LUG #14-2 AWG(AL/CU) Connection Type Line/Load Lug Country of Origin MX Dimensions 5 in H x 2.25 in W x 2.95 in D EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 1.3100 lb Harmonization Tariff Schedule Code 8536200020 Height 4.05 in Item Group 00900 Length 2.95 in Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402701&lang=en-us Mounting Type Unit Number Of Poles 3 Returnable N Standard UL489 LISTED - CSA 22.2 #5.1 CERTIFIED - IEC RATED 60947-2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand QOU Temperature Rating 14 to 140 °F Type Type QOU UNSPSC 39121603 UPC 11 78590115253 UPC 12 785901152538 Warranty Description Contractual Warranty:18 months Width 3 in Wire Size 14 to 2 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 15 A Interrupt Rating 10 kA at 240 VAC/5 kA at 48 VDC Trip Type Thermal Magnetic Voltage Rating 240 VAC HACR RATED STANDARD FLUSH, SURFACE OR DIN RAIL (35MM) Provide a means to manually open a circuit Automatically open a circuit under overload or short circuit conditions Features common tripping of all poles Have a Visi-Trip™ trip indicator Has lugs at both ends (cable-in/cable-out construction) Operate in any position
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOU3151200 |
| Application | HACR RATED |
| ARRA Compliant | N |
| Auxiliary Contact Rating | 1A |
| Buy American Compliant | N |
| Catalog Number | QOU3151200 |
| Connection | LINE: BOX LUG - LOAD: BOX LUG #14-2 AWG(AL/CU) |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Dimensions | 5 in H x 2.25 in W x 2.95 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 1.3100 lb |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.05 in |
| Item Group | 00900 |
| Length | 2.95 in |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402701&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Returnable | N |
| Standard | UL489 LISTED - CSA 22.2 #5.1 CERTIFIED - IEC RATED 60947-2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | QOU |
| Temperature Rating | 14 to 140 °F |
| Type | Type QOU |
| UNSPSC | 39121603 |
| UPC 11 | 78590115253 |
| UPC 12 | 785901152538 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3 in |
| Wire Size | 14 to 2 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 15 A |
| Interrupt Rating | 10 kA at 240 VAC/5 kA at 48 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| HACR RATED |
| STANDARD FLUSH, SURFACE OR DIN RAIL (35MM) |
| Provide a means to manually open a circuit |
| Automatically open a circuit under overload or short circuit conditions |
| Features common tripping of all poles |
| Have a Visi-Trip™ trip indicator |
| Has lugs at both ends (cable-in/cable-out construction) |
| Operate in any position |
