Square D™

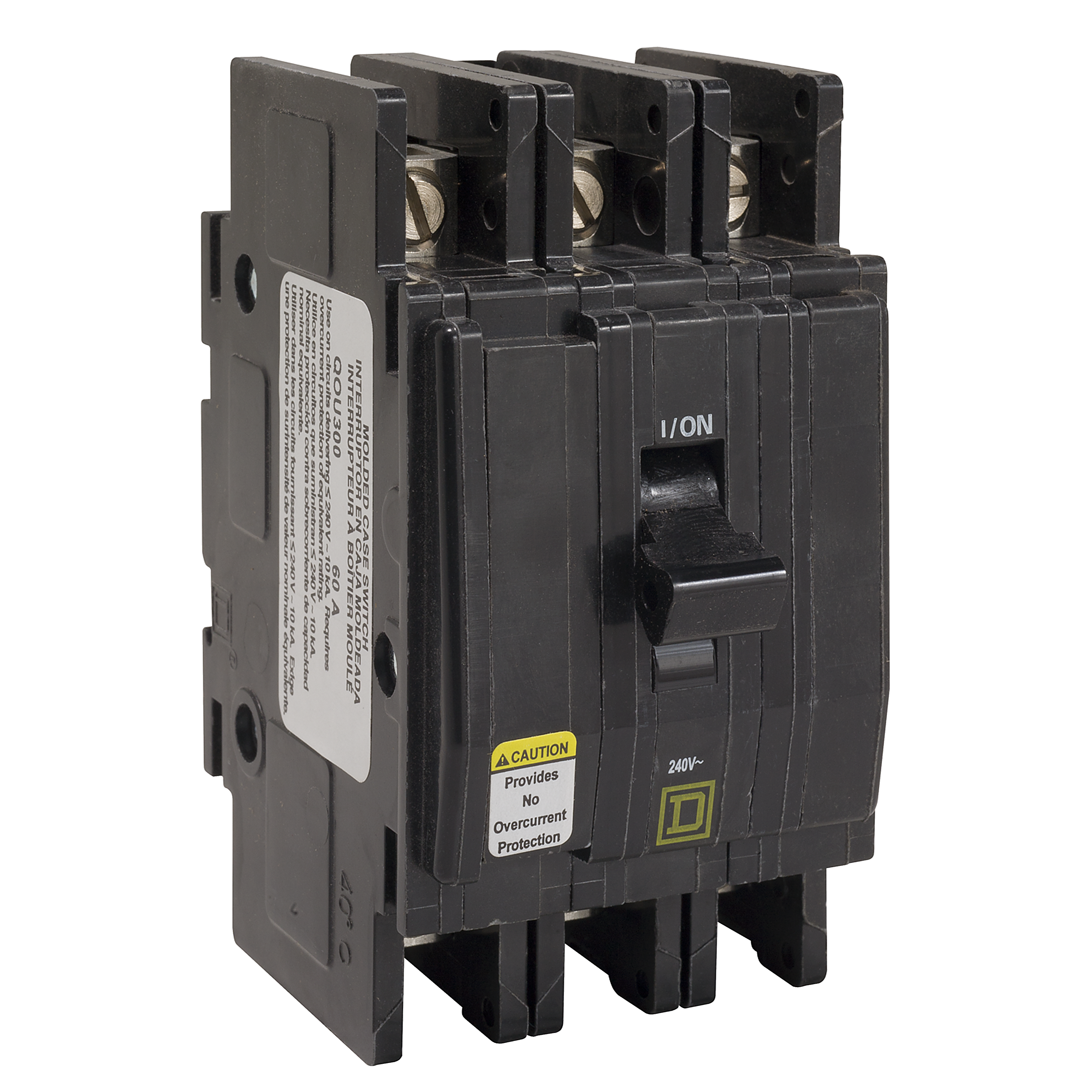

Square D™ QOU300 Type QOU Non-Automatic Standard Miniature Circuit Breaker, 240 VAC, 60 A, 10 kA at 240 VAC, 5 kA at 48 VDC Interrupt, 3 Poles, Thermal/Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ QOU300 Type QOU Non-Automatic Standard Miniature Circuit Breaker, 240 VAC, 60 A, 10 kA at 240 VAC, 5 kA at 48 VDC Interrupt, 3 Poles, Thermal/Magnetic Trip
SKUPDW~6414698
MFGR #QOU300
Your Cost: $300.37/ea
List: Square D™ Miniature Circuit Breaker, Type QOU Non-Automatic Standard, 240 VAC, 60 A, 50/60 Hz Frequency, 10 kA at 240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 14 to 2 AWG Al/Cu Wire, 14 to 140 deg F, 2.25 in W x 2.95 in D x 5 in H Dimensions
Square D™ Miniature Circuit Breaker, Type QOU Non-Automatic Standard, 240 VAC, 60 A, 50/60 Hz Frequency, 10 kA at 240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 14 to 2 AWG Al/Cu Wire, 14 to 140 deg F, 2.25 in W x 2.95 in D x 5 in H Dimensions
Alternate Catalog Number QOU300 Application HACR and Switching Duty rated ARRA Compliant N Buy American Compliant N Catalog Number QOU300 Connection AWG 12...AWG 2/0 ALUMINIUM/COPPER,SLOTTED BOX LUGS, LINE SIDE-SLOTTED BOX LUGS, LOAD SIDE Connection Type Line/Load Lug Country of Origin MX Currency USD Depth 2.95 in Dimensions 2.25 in W x 2.95 in D x 5 in H EU RoHS Indicator Y Frequency Rating 50/60 Gross Volume Per Pack 41.12 Gross Volume per Pack Metric 673.92 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.4452 lb Gross Weight per Pack Metric 444.52 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509040 Height 6.3500 in Height [Metric] 6.3500 cm Item Group 00900 Length 11.9380 in Length [Metric] 11.9380 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402643&lang=en-us Number Of Poles 3 Phase 3 Returnable Y Standard UL LISTED-CSA Sub Brand QOU Substitute Product Catalog Number QOUHFSC1 Temperature Rating 14 to 140 Type Type QOU Non-Automatic Standard UNSPSC 39121603 UPC 11 78590148923 UPC 12 785901489238 Warranty Description Contractual Warranty:18 months Width 8.8900 in Width [Metric] 8.8900 cm Wire Size 14 to 2 AWG Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 60 A Interrupt Rating 10 kA at 240 VAC, 5 kA at 48 VDC Trip Type Thermal Magnetic Voltage Rating 240 HACR AND SWITCHING DUTY RATED BOX LUGS LINE SIDE SLOTTED-BOX LUGS LOAD SIDE SLOTTED
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOU300 |
| Application | HACR and Switching Duty rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOU300 |
| Connection | AWG 12...AWG 2/0 ALUMINIUM/COPPER,SLOTTED BOX LUGS, LINE SIDE-SLOTTED BOX LUGS, LOAD SIDE |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 2.95 in |
| Dimensions | 2.25 in W x 2.95 in D x 5 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Volume Per Pack | 41.12 |
| Gross Volume per Pack Metric | 673.92 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.4452 lb |
| Gross Weight per Pack Metric | 444.52 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509040 |
| Height | 6.3500 in |
| Height [Metric] | 6.3500 cm |
| Item Group | 00900 |
| Length | 11.9380 in |
| Length [Metric] | 11.9380 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402643&lang=en-us |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED-CSA |
| Sub Brand | QOU |
| Substitute Product Catalog Number | QOUHFSC1 |
| Temperature Rating | 14 to 140 |
| Type | Type QOU Non-Automatic Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590148923 |
| UPC 12 | 785901489238 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.8900 in |
| Width [Metric] | 8.8900 cm |
| Wire Size | 14 to 2 AWG Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 60 A |
| Interrupt Rating | 10 kA at 240 VAC, 5 kA at 48 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 |
| HACR AND SWITCHING DUTY RATED |
| BOX LUGS LINE SIDE SLOTTED-BOX LUGS LOAD SIDE SLOTTED |
