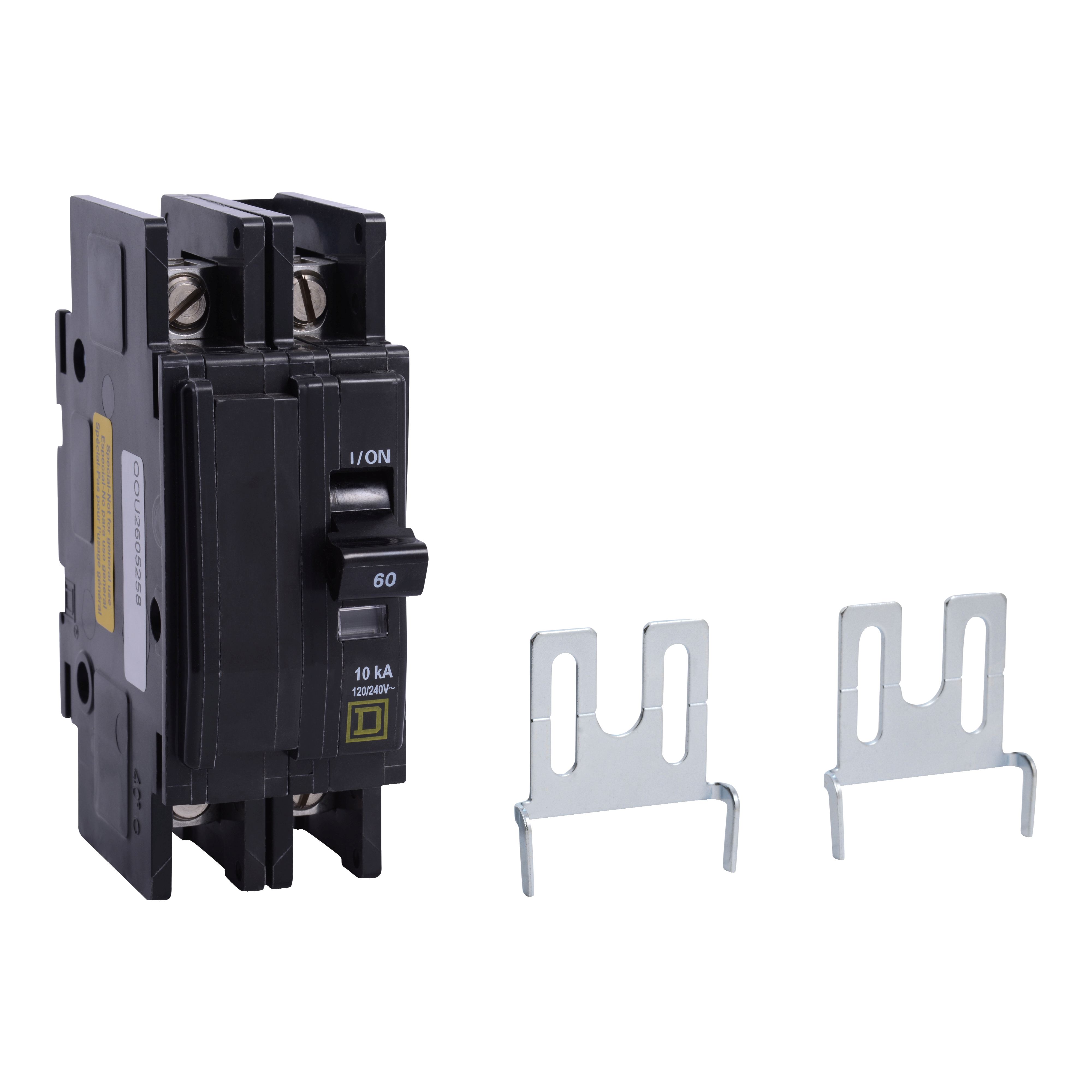

Square D™ QOU2605258 Type QOU Miniature Circuit Breaker, 120/240 VAC, 60 A, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOU2605258 Type QOU Miniature Circuit Breaker, 120/240 VAC, 60 A, 2 Poles, Thermal Magnetic Trip
SKU560017
MFGR #QOU2605258
Your Cost: $115.76/ea
Square D QOU2605258 MINIATURE CIRCUIT BREAKER 120/240V 60A
Square D QOU2605258 MINIATURE CIRCUIT BREAKER 120/240V 60A
Alternate Catalog Number QOU2605258 Application HACR and Switching Duty rated ARRA Compliant N Buy American Compliant N Catalog Number QOU2605258 Connection AWG 14...AWG 2 ALUMINIUM/COPPER,BOX LUGS, LINE SIDE- QUICK CONNECT TERMINALS, LOAD SIDE Connection Type Line/Load Lug Country of Origin MX Currency USD Depth 2.95 in Dimensions 4.05 in H x 1.5 in W x 2.63 in D EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 0.8000 lb Gross Weight per Pack Metric 362.87 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 5.5880 in Height [Metric] 5.5880 cm Item Group 00900 Length 12.7000 in Length [Metric] 12.7000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402567&lang=en-us Mounting Type Unit Number Of Poles 2 Returnable N Standard CSA-IEC-UL LISTED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Substitute Product Catalog Number BCV Temperature Rating 14 to 140 °F Type Type QOU UNSPSC 39121603 UPC 11 78590183484 UPC 12 785901834847 Warranty Description Contractual Warranty:18 months Width 9.3980 in Width [Metric] 9.3980 cm Wire Size 14 to 2 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 60 A Interrupt Rating 10 kA at 120/240 VAC/5 kA at 48 VDC Trip Type Thermal Magnetic Voltage Rating 120/240 VAC/48 VDC HACR and Switching Duty rated QUICK CONNECT TERMINALS LOAD SIDE-QUICK CONNECT TERMINALS LINE SIDE Automatically open a circuit under overload or short circuit conditions Feature common tripping of all poles Visi-Trip on all the circuit breakers for easy trip detection Can be flush-, surface-, or DIN rail- Mounted has lugs at both ends (cable-in/cable-out construction) Operate in any position Are fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOU2605258 |
| Application | HACR and Switching Duty rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOU2605258 |
| Connection | AWG 14...AWG 2 ALUMINIUM/COPPER,BOX LUGS, LINE SIDE- QUICK CONNECT TERMINALS, LOAD SIDE |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 2.95 in |
| Dimensions | 4.05 in H x 1.5 in W x 2.63 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.8000 lb |
| Gross Weight per Pack Metric | 362.87 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 5.5880 in |
| Height [Metric] | 5.5880 cm |
| Item Group | 00900 |
| Length | 12.7000 in |
| Length [Metric] | 12.7000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402567&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 2 |
| Returnable | N |
| Standard | CSA-IEC-UL LISTED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Substitute Product Catalog Number | BCV |
| Temperature Rating | 14 to 140 °F |
| Type | Type QOU |
| UNSPSC | 39121603 |
| UPC 11 | 78590183484 |
| UPC 12 | 785901834847 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.3980 in |
| Width [Metric] | 9.3980 cm |
| Wire Size | 14 to 2 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 60 A |
| Interrupt Rating | 10 kA at 120/240 VAC/5 kA at 48 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC/48 VDC |
| HACR and Switching Duty rated |
| QUICK CONNECT TERMINALS LOAD SIDE-QUICK CONNECT TERMINALS LINE SIDE |
| Automatically open a circuit under overload or short circuit conditions |
| Feature common tripping of all poles |
| Visi-Trip on all the circuit breakers for easy trip detection |
| Can be flush-, surface-, or DIN rail- Mounted |
| has lugs at both ends (cable-in/cable-out construction) |
| Operate in any position |
| Are fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings |
