Square D™

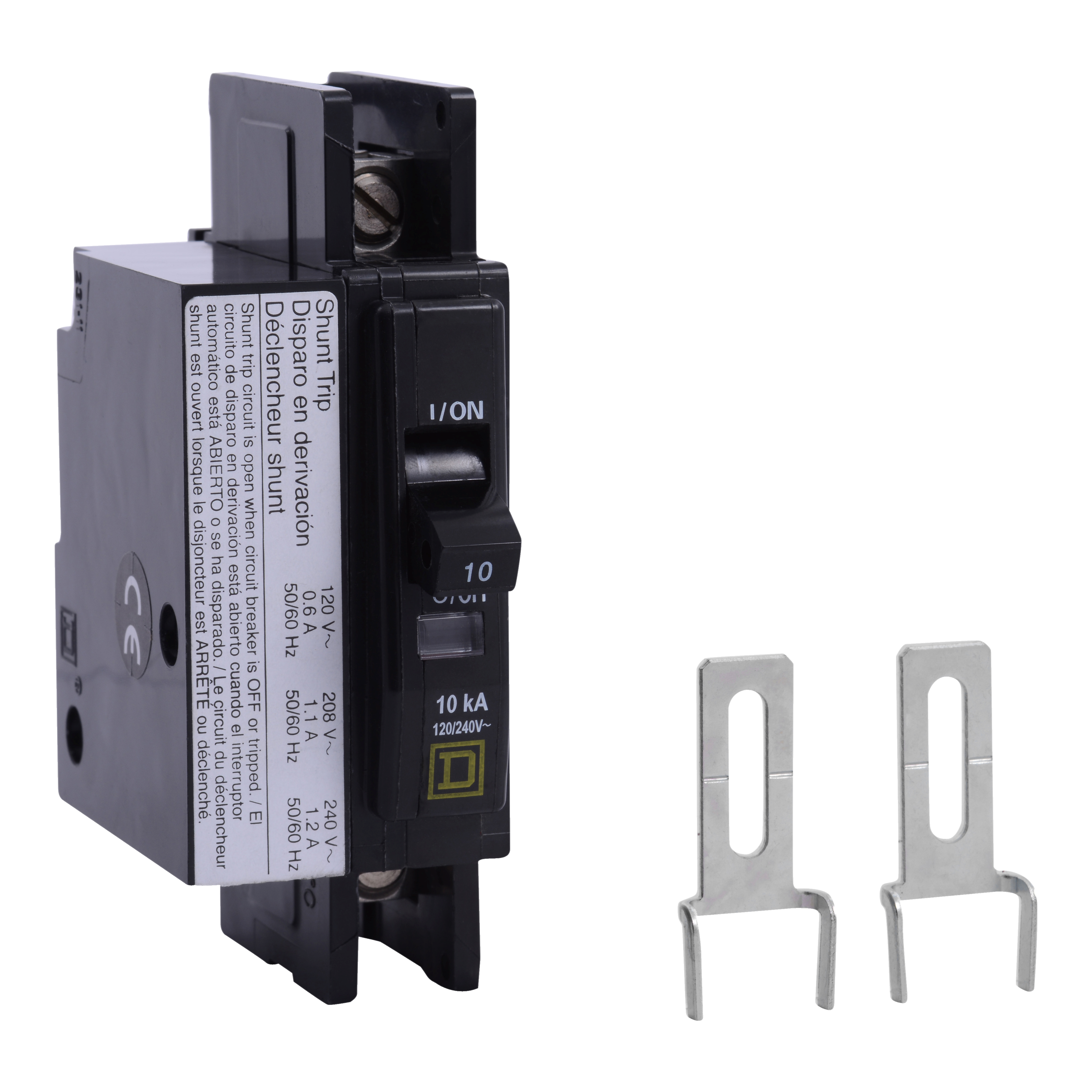

Square D™ QOU1401042 Type QOU Standard Miniature Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 1 Poles, Shunt/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ QOU1401042 Type QOU Standard Miniature Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 1 Poles, Shunt/Thermal Magnetic Trip
SKUPDW~6414556
MFGR #QOU1401042
Your Cost: $335.21/ea
List: Square D™ Miniature Circuit Breaker, Type QOU Standard, 120/240 VAC, 40 A, 50/60 Hz Frequency, 10 kA Interrupt, Shunt/Thermal Magnetic Trip, 1 Pole, 1 ph, Line/Load Box Lug Connection, 14 to 2 AWG Wire, DIN Rail/Flush/Surface Mounting, 14 to 140 deg F, 2.95 in L x 0.75 in W x 4.05 in H Dimensions
Square D™ Miniature Circuit Breaker, Type QOU Standard, 120/240 VAC, 40 A, 50/60 Hz Frequency, 10 kA Interrupt, Shunt/Thermal Magnetic Trip, 1 Pole, 1 ph, Line/Load Box Lug Connection, 14 to 2 AWG Wire, DIN Rail/Flush/Surface Mounting, 14 to 140 deg F, 2.95 in L x 0.75 in W x 4.05 in H Dimensions
Alternate Catalog Number QOU1401042 Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number QOU1401042 Connection AWG 14...AWG 2 aluminium/copper;Slotted box lugs, line side;slotted box lugs, load side Country of Origin US Currency USD Depth 2.95 in EU RoHS Indicator Y Gross Weight Per Pack 3.2205 lb Gross Weight per Pack Metric 322.05 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 10.3000 in Height [Metric] 10.3000 cm Item Group 00900 Length 7.5000 in Length [Metric] 7.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401981&lang=en-us Number Of Poles 1 Returnable N Standard UL489 LISTED - CSA 22.2 #5.1 CERTIFIED - IEC RATED 60947-2 Sub Brand QOU Type MINIATURE CIRCUIT-BREAKER UNSPSC 39121603 UPC 11 78590158578 UPC 12 785901585787 Warranty Description Contractual Warranty:18 months Width 3.8000 in Width [Metric] 3.8000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 40 A Interrupt Rating 10kA Voltage Rating 120/240 V AC;120 V AC;48 V DC HACR rated STANDARD FLUSH, SURFACE OR DIN RAIL (35MM)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOU1401042 |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOU1401042 |
| Connection | AWG 14...AWG 2 aluminium/copper;Slotted box lugs, line side;slotted box lugs, load side |
| Country of Origin | US |
| Currency | USD |
| Depth | 2.95 in |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 3.2205 lb |
| Gross Weight per Pack Metric | 322.05 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 10.3000 in |
| Height [Metric] | 10.3000 cm |
| Item Group | 00900 |
| Length | 7.5000 in |
| Length [Metric] | 7.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401981&lang=en-us |
| Number Of Poles | 1 |
| Returnable | N |
| Standard | UL489 LISTED - CSA 22.2 #5.1 CERTIFIED - IEC RATED 60947-2 |
| Sub Brand | QOU |
| Type | MINIATURE CIRCUIT-BREAKER |
| UNSPSC | 39121603 |
| UPC 11 | 78590158578 |
| UPC 12 | 785901585787 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.8000 in |
| Width [Metric] | 3.8000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 40 A |
| Interrupt Rating | 10kA |
| Voltage Rating | 120/240 V AC;120 V AC;48 V DC |
| HACR rated |
| STANDARD FLUSH, SURFACE OR DIN RAIL (35MM) |
