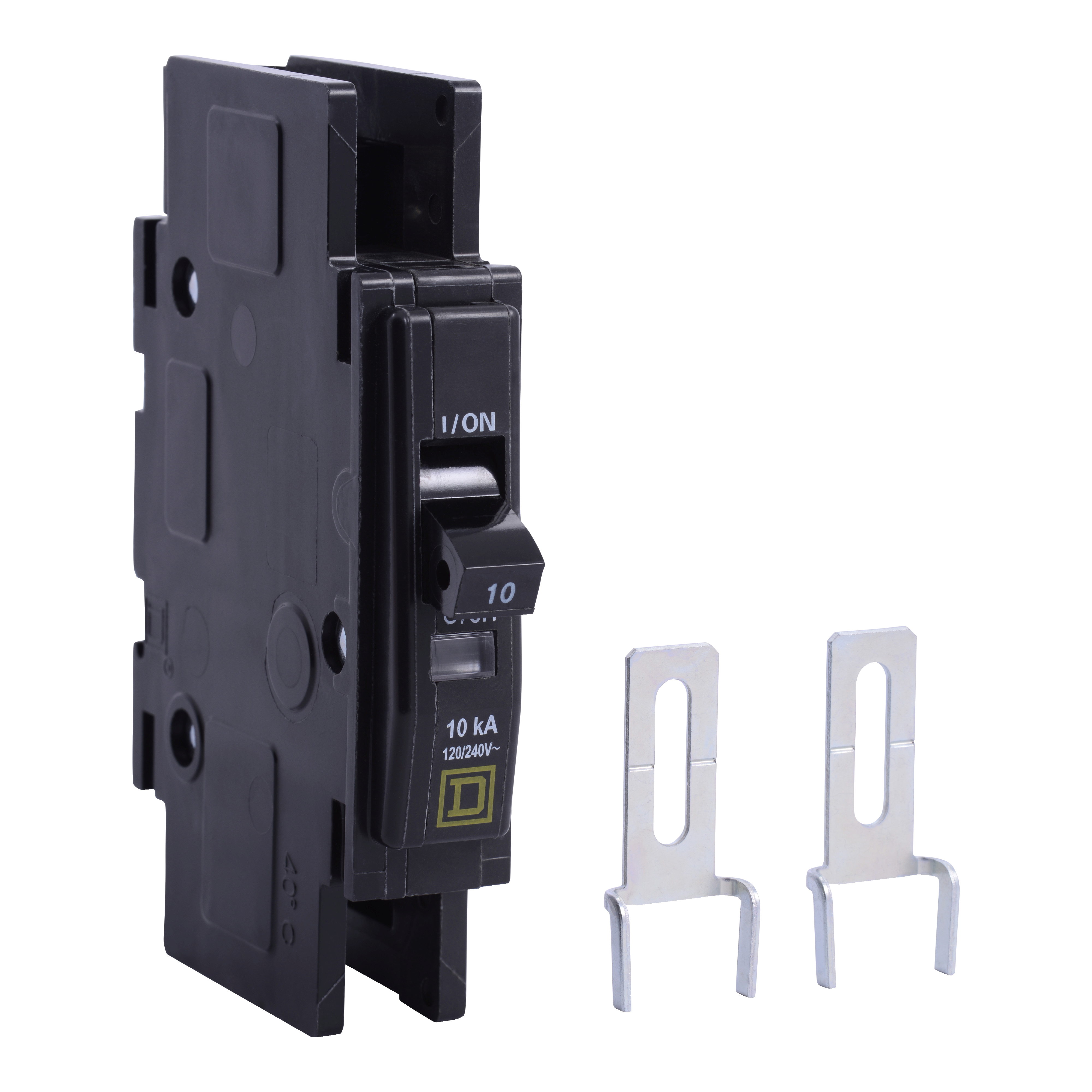

Square D™ QOU1155283 Type QOU Standard Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, 1 Poles, Thermal/Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ QOU1155283 Type QOU Standard Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, 1 Poles, Thermal/Magnetic Trip
SKUPDW~6414527
MFGR #QOU1155283
Your Cost: $65.39/ea
List: Square D™ Miniature Circuit Breaker, Type QOU Standard, 120/240 VAC, 15 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 1 Pole, Ring Tongue Connection, 14 to 2 AWG Al/Cu Wire, DIN Rail/Surface Mounting, 14 to 140 deg F, 0.75 in W x 2.63 in D x 4.05 in H Dimensions
Square D™ Miniature Circuit Breaker, Type QOU Standard, 120/240 VAC, 15 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 1 Pole, Ring Tongue Connection, 14 to 2 AWG Al/Cu Wire, DIN Rail/Surface Mounting, 14 to 140 deg F, 0.75 in W x 2.63 in D x 4.05 in H Dimensions
Alternate Catalog Number QOU1155283 Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number QOU1155283 Connection AWG 14...AWG 2 aluminium/copper; ring tongue, line side; ring tongue, load side Connection Type Ring Tongue Country of Origin MX Currency USD Depth 2.95 in Dimensions 0.75 in W x 2.63 in D x 4.05 in H EU RoHS Indicator Y Frequency Rating 50/60 Gross Weight Per Pack 1.7200 lb Gross Weight per Pack Metric 172.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.8740 in Height [Metric] 7.8740 cm Item Group 00900 Length 11.9380 in Length [Metric] 11.9380 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401831&lang=en-us Mounting Type DIN Rail/Surface Number Of Poles 1 Returnable N Standard UL489 LISTED - CSA 22.2 #5.1 CERTIFIED - IEC RATED 60947-2 Sub Brand QOU Substitute Product Catalog Number HLO1 Temperature Rating 14 to 140 Type Type QOU Standard UNSPSC 39121603 UPC 11 78590194261 UPC 12 785901942610 Warranty Description Contractual Warranty:18 months Width 2.5400 in Width [Metric] 2.5400 cm Wire Size 14 to 2 AWG Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 15 A Interrupt Rating 10 kA at 120/240 VAC, 5 kA at 48 VDC Trip Type Thermal Magnetic Voltage Rating 120/240 HACR rated STANDARD FLUSH, SURFACE OR DIN RAIL (35MM)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOU1155283 |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOU1155283 |
| Connection | AWG 14...AWG 2 aluminium/copper; ring tongue, line side; ring tongue, load side |
| Connection Type | Ring Tongue |
| Country of Origin | MX |
| Currency | USD |
| Depth | 2.95 in |
| Dimensions | 0.75 in W x 2.63 in D x 4.05 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 1.7200 lb |
| Gross Weight per Pack Metric | 172.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.8740 in |
| Height [Metric] | 7.8740 cm |
| Item Group | 00900 |
| Length | 11.9380 in |
| Length [Metric] | 11.9380 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401831&lang=en-us |
| Mounting Type | DIN Rail/Surface |
| Number Of Poles | 1 |
| Returnable | N |
| Standard | UL489 LISTED - CSA 22.2 #5.1 CERTIFIED - IEC RATED 60947-2 |
| Sub Brand | QOU |
| Substitute Product Catalog Number | HLO1 |
| Temperature Rating | 14 to 140 |
| Type | Type QOU Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590194261 |
| UPC 12 | 785901942610 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 2.5400 in |
| Width [Metric] | 2.5400 cm |
| Wire Size | 14 to 2 AWG Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 15 A |
| Interrupt Rating | 10 kA at 120/240 VAC, 5 kA at 48 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 |
| HACR rated |
| STANDARD FLUSH, SURFACE OR DIN RAIL (35MM) |
