Square D™

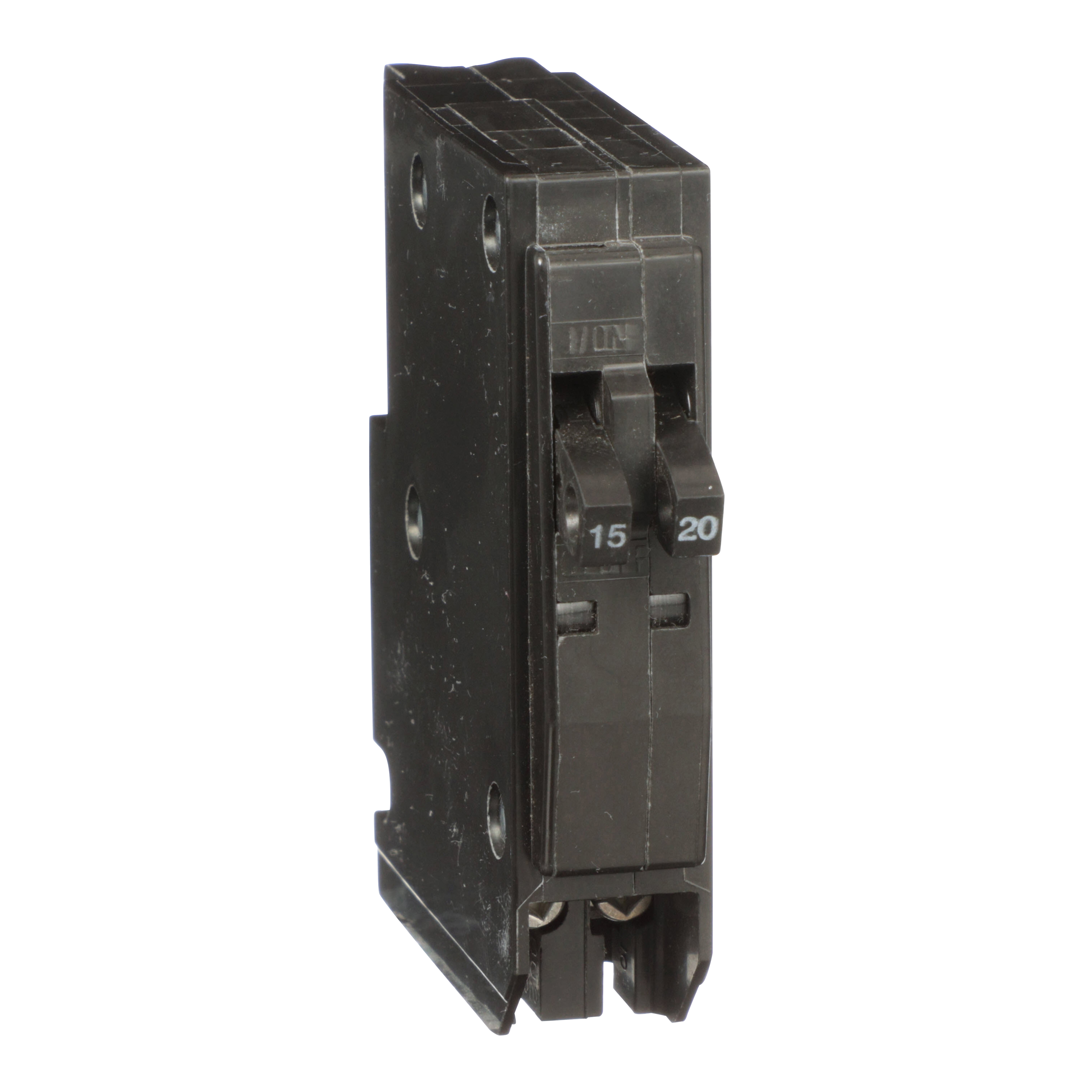

Square D™ QOT Type QOT Tandem Miniature Circuit Breaker, 120/240 VAC, 15 to 20 A, 10 kA Interrupt, 1 Pole
Custom_Product_Images_Illustration
Square D™
Square D™ QOT Type QOT Tandem Miniature Circuit Breaker, 120/240 VAC, 15 to 20 A, 10 kA Interrupt, 1 Pole
SKU98358
MFGR #QOT1520
Your Cost: $26.81/ea
List: Square D QOT1520 MINIATURE CIRCUIT BREAKER 120/240V 15A,1-Phase,10kA,120/240 Vac,15A/20A,Miniature Circuit Breaker,Pressure Plate #12 to #8 AWG(Al) - #14 to #8 AWG(Cu),QO,Tandem Plug-On,UL Listed - CSA Certified
Square D QOT1520 MINIATURE CIRCUIT BREAKER 120/240V 15A,1-Phase,10kA,120/240 Vac,15A/20A,Miniature Circuit Breaker,Pressure Plate #12 to #8 AWG(Al) - #14 to #8 AWG(Cu),QO,Tandem Plug-On,UL Listed - CSA Certified
Alternate Catalog Number QOT1520 Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number QOT1520 Connection Pressure Plate Connection Type Pressure Plate Country of Origin MX Currency USD Dimensions 2.91 in L x 0.75 in W x 3 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 8.09 Gross Volume per Pack Metric 132.49 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.3100 lb Gross Weight per Pack Metric 140.61 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 1.7780 in Height [Metric] 1.7780 cm Item Group 00004 Length 8.3820 in Length [Metric] 8.3820 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401757&lang=en-us Mounting Type Plug-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Sub Brand QO Substitute Product Catalog Number QOTHT Temperature Rating 104 °F Type Tandem UNSPSC 39121603 UPC 11 78590141804 UPC 12 785901418047 Warranty Description Contractual Warranty:18 months Width 8.8900 in Width [Metric] 8.8900 cm Wire Size 12 to 8 AWG, 14 to 8 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 15/20 A Interrupt Rating 10 kA Trip Type Instantaneous/Long Time/Thermal Magnetic Voltage Rating 120/240 VAC HACR rated TANDEM PLUG-ON 1 number of spaces required Provides overload and short circuit protection It is ideal for QO® load centers 12 to 8 AWG aluminum, 14 to 8 AWG copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOT1520 |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOT1520 |
| Connection | Pressure Plate |
| Connection Type | Pressure Plate |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L x 0.75 in W x 3 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 8.09 |
| Gross Volume per Pack Metric | 132.49 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.3100 lb |
| Gross Weight per Pack Metric | 140.61 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 1.7780 in |
| Height [Metric] | 1.7780 cm |
| Item Group | 00004 |
| Length | 8.3820 in |
| Length [Metric] | 8.3820 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401757&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Sub Brand | QO |
| Substitute Product Catalog Number | QOTHT |
| Temperature Rating | 104 °F |
| Type | Tandem |
| UNSPSC | 39121603 |
| UPC 11 | 78590141804 |
| UPC 12 | 785901418047 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.8900 in |
| Width [Metric] | 8.8900 cm |
| Wire Size | 12 to 8 AWG, 14 to 8 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 15/20 A |
| Interrupt Rating | 10 kA |
| Trip Type | Instantaneous/Long Time/Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| HACR rated |
| TANDEM PLUG-ON |
| 1 number of spaces required |
| Provides overload and short circuit protection |
| It is ideal for QO® load centers |
| 12 to 8 AWG aluminum, 14 to 8 AWG copper |
