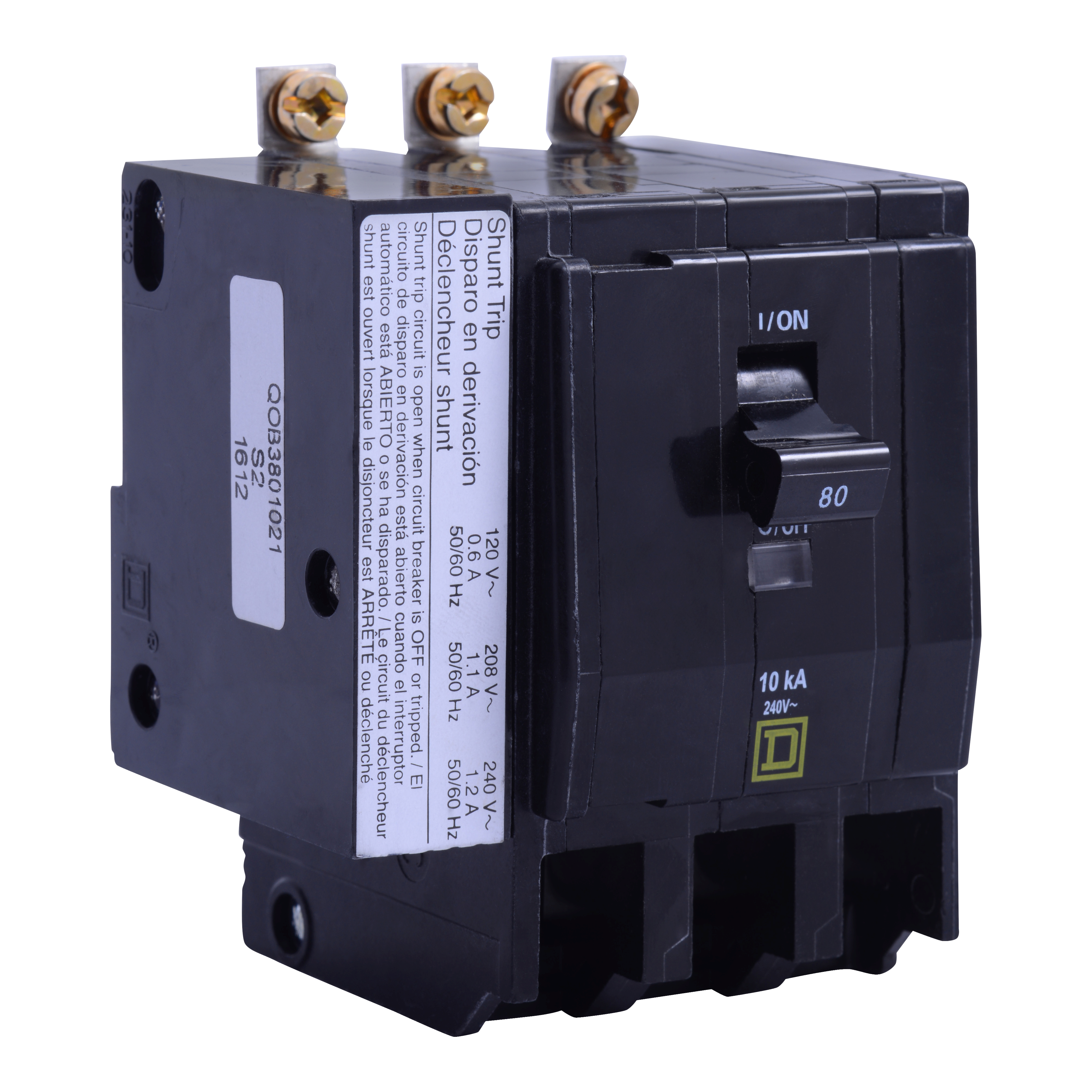

Square D™ QOB380VH1021 Type QOB-VH Miniature Circuit Breaker, 120/240 VAC, 80 A, 22 kA at 120/240 VAC Interrupt, 3 Poles, Shunt/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOB380VH1021 Type QOB-VH Miniature Circuit Breaker, 120/240 VAC, 80 A, 22 kA at 120/240 VAC Interrupt, 3 Poles, Shunt/Thermal Magnetic Trip
SKU1341749
MFGR #QOB380VH1021
Your Cost: $802.87/ea
List: Square D™ Miniature Circuit Breaker, Type QOB-VH, 120/240 VAC, 80 A, 50/60 Hz Frequency, 22 kA at 120/240 VAC Interrupt, Shunt/Thermal Magnetic Trip, 3 Pole, 3 ph, Box Lug Connection, 4 to 2/0 AWG Al/Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 3.5 in H x 3 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Square D™ Miniature Circuit Breaker, Type QOB-VH, 120/240 VAC, 80 A, 50/60 Hz Frequency, 22 kA at 120/240 VAC Interrupt, Shunt/Thermal Magnetic Trip, 3 Pole, 3 ph, Box Lug Connection, 4 to 2/0 AWG Al/Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 3.5 in H x 3 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Alternate Catalog Number QOB380VH1021 Application Not rated ARRA Compliant N Buy American Compliant N Catalog Number QOB380VH1021 Connection BOX LUGS #4 TO #2/0 AWG(AL/CU) Connection Type Box Lug Country of Origin MX Currency USD Dimensions 3.5 in H x 3 in W x 2.91 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frequency Rating 50/60 Gross Weight Per Pack 1360.0100 lb Gross Weight per Pack Metric 616.89 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 8.1280 in Height [Metric] 8.1280 cm Item Group 00015 Length 10.1600 in Length [Metric] 10.1600 cm Material FIBERGLASS FILLED THERMOSET MOLDING MATERIAL. Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401639&lang=en-us Mounting Type Bolt-On Number Of Poles 3 Operating Temperature CALIBRATED FOR USE AT 40 DEGREES C. SEE DATA BULLETIN 0100DB0101 FOR RE-RATING INFORMATION. Phase 3 Returnable N Standard UL LISTED - CSA CERTIFIED Sub Brand QO Temperature Rating 104 Type MINIATURE CIRCUIT BREAKER UNSPSC 39121603 UPC 11 78590175054 UPC 12 785901750543 Warranty Description Contractual Warranty:18 months Width 8.8900 in Width [Metric] 8.8900 cm Wire Size 4 to 2/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 80 A Interrupt Rating 22KA Trip Type Shunt/Thermal Magnetic Voltage Rating 240 VAC NOT RATED STANDARD BOLT-ON
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB380VH1021 |
| Application | Not rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOB380VH1021 |
| Connection | BOX LUGS #4 TO #2/0 AWG(AL/CU) |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3.5 in H x 3 in W x 2.91 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 1360.0100 lb |
| Gross Weight per Pack Metric | 616.89 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 8.1280 in |
| Height [Metric] | 8.1280 cm |
| Item Group | 00015 |
| Length | 10.1600 in |
| Length [Metric] | 10.1600 cm |
| Material | FIBERGLASS FILLED THERMOSET MOLDING MATERIAL. |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401639&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | CALIBRATED FOR USE AT 40 DEGREES C. SEE DATA BULLETIN 0100DB0101 FOR RE-RATING INFORMATION. |
| Phase | 3 |
| Returnable | N |
| Standard | UL LISTED - CSA CERTIFIED |
| Sub Brand | QO |
| Temperature Rating | 104 |
| Type | MINIATURE CIRCUIT BREAKER |
| UNSPSC | 39121603 |
| UPC 11 | 78590175054 |
| UPC 12 | 785901750543 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.8900 in |
| Width [Metric] | 8.8900 cm |
| Wire Size | 4 to 2/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 80 A |
| Interrupt Rating | 22KA |
| Trip Type | Shunt/Thermal Magnetic |
| Voltage Rating | 240 VAC |
| NOT RATED |
| STANDARD BOLT-ON |
