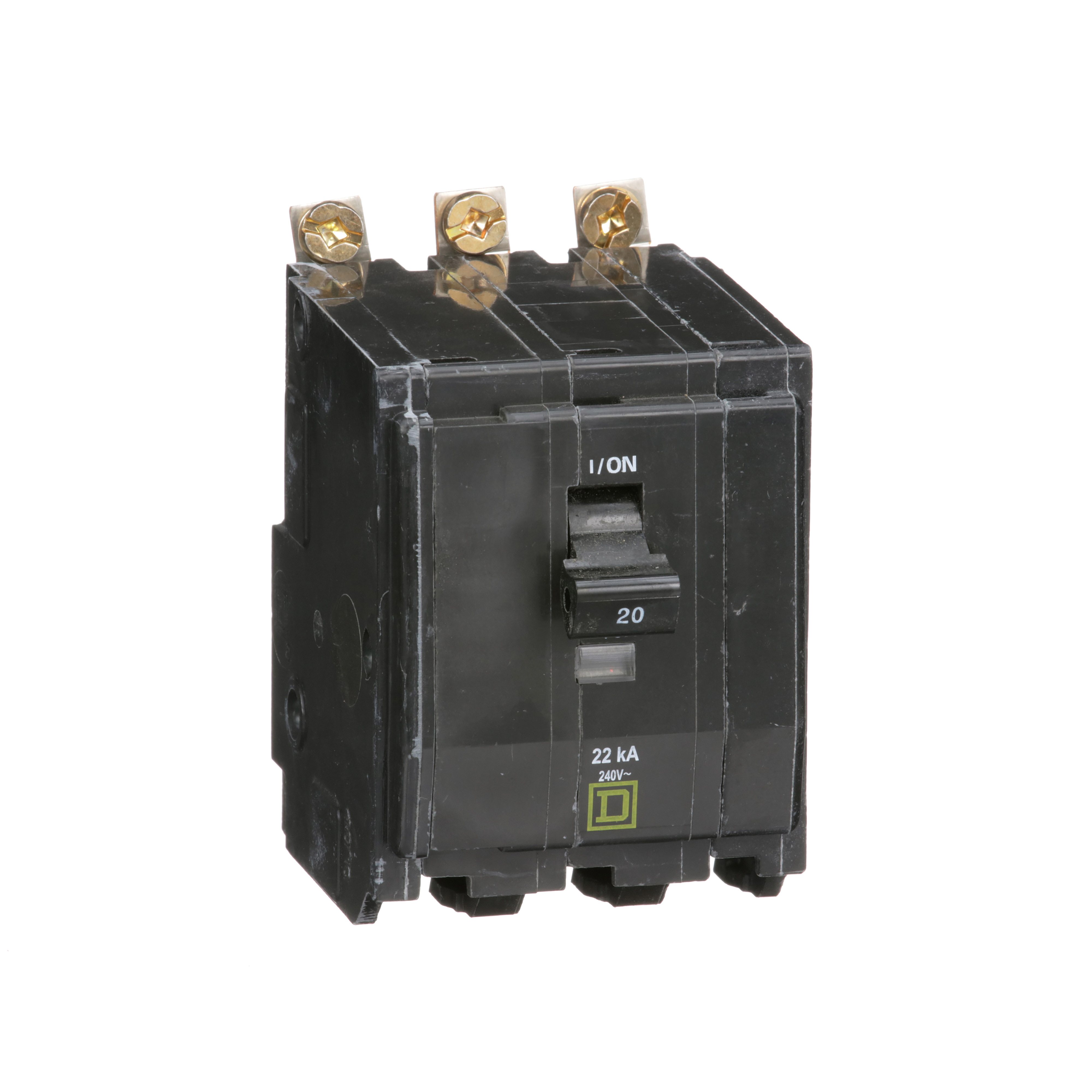

Square D™ QOB320VH Miniature Circuit Breaker, 240 VAC, 20 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOB320VH Miniature Circuit Breaker, 240 VAC, 20 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU62845
MFGR #QOB320VH
Your Cost: $518.59/ea
Square D QOB320VH MINIATURE CIRCUIT BREAKER 240V 20A,20A,22kA,240 Vac,3-Phase,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Bolt-On,UL Listed - CSA Certified
Square D QOB320VH MINIATURE CIRCUIT BREAKER 240V 20A,20A,22kA,240 Vac,3-Phase,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Bolt-On,UL Listed - CSA Certified
Alternate Catalog Number QOB320VH Amperage Rating 20 A Application HACR RATED ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QOB320VH Connection Pressure Plate Connection Type Pressure Plate Country of Origin US Currency USD Dimensions 2.91 in L x 2.25 in W x 3 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 25.40 Gross Volume per Pack Metric 416.23 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.8000 lb Gross Weight per Pack Metric 362.87 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 5.5880 in Height [Metric] 5.6000 cm Interrupt Rating 22 kA Item Group 00015 Length 8.3820 in Length [Metric] 8.4000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401345&lang=en-us Mounting Type Bolt-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number HLO1 Temperature Rating 104 °F Trip Type Thermal Magnetic Type Standard UNSPSC 39121603 UPC 11 78590137196 UPC 12 785901371960 Voltage Rating 240 VAC Warranty Description Contractual Warranty:18 months Width 7.6200 in Width [Metric] 7.7000 cm Wire Size 14 to 8 AWG HACR rated STANDARD BOLT-ON QO™ and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards QO™ and QOB circuit breakers have Visi-Trip™ feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit Common trip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB320VH |
| Amperage Rating | 20 A |
| Application | HACR RATED |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QOB320VH |
| Connection | Pressure Plate |
| Connection Type | Pressure Plate |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 2.91 in L x 2.25 in W x 3 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 25.40 |
| Gross Volume per Pack Metric | 416.23 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.8000 lb |
| Gross Weight per Pack Metric | 362.87 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 5.5880 in |
| Height [Metric] | 5.6000 cm |
| Interrupt Rating | 22 kA |
| Item Group | 00015 |
| Length | 8.3820 in |
| Length [Metric] | 8.4000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401345&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | HLO1 |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590137196 |
| UPC 12 | 785901371960 |
| Voltage Rating | 240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.6200 in |
| Width [Metric] | 7.7000 cm |
| Wire Size | 14 to 8 AWG |
| HACR rated |
| STANDARD BOLT-ON |
| QO™ and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously |
| Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards |
| QO™ and QOB circuit breakers have Visi-Trip™ feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| Common trip |
