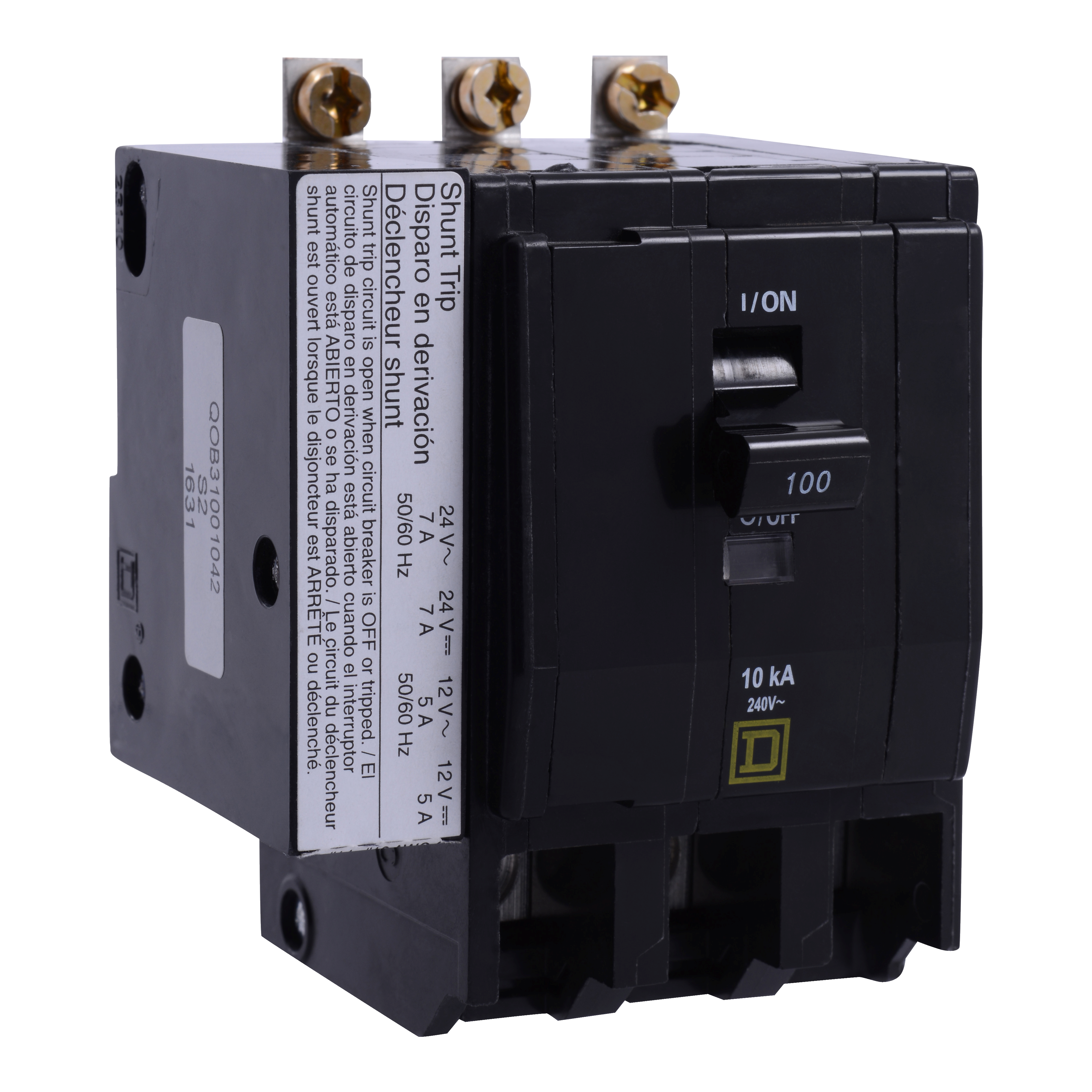

Square D™ QOB31001042 Type QOB Miniature Circuit Breaker, 120/240 VAC, 100 A, 10 kA at 120/240 VAC Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™ QOB31001042 Type QOB Miniature Circuit Breaker, 120/240 VAC, 100 A, 10 kA at 120/240 VAC Interrupt, 3 Poles
SKU320741
MFGR #QOB31001042
Your Cost: $670.29/ea
Square D QOB31001042 MINIATURE CIRCUIT BREAKER 240V 100A,100A,10kA,240 Vac,3-Phase,3P,Box Lugs #4 to #2/0 AWG(Al/Cu),Calibrated for use at 40 degrees C. See Data Bulletin 0100DB0101 for re-rating information.,Fiberglass filled thermoset molding material.,HACR rated,Miniature Circuit Breaker,QO,Standard Bolt-On,UL Listed - CSA Certified
Square D QOB31001042 MINIATURE CIRCUIT BREAKER 240V 100A,100A,10kA,240 Vac,3-Phase,3P,Box Lugs #4 to #2/0 AWG(Al/Cu),Calibrated for use at 40 degrees C. See Data Bulletin 0100DB0101 for re-rating information.,Fiberglass filled thermoset molding material.,HACR rated,Miniature Circuit Breaker,QO,Standard Bolt-On,UL Listed - CSA Certified
Alternate Catalog Number QOB31001042 Amperage Rating 100 A Application HACR rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QOB31001042 Connection BOX LUGS Connection Type Box Lug Country of Origin MX Currency USD Dimensions 2.91 in L x 3 in W x 3.5 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 1360.0100 lb Gross Weight per Pack Metric 616.89 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 3.5433 in Height [Metric] 8.6360 cm Interrupt Rating 10 kA Item Group 00015 Length 3.9370 in Length [Metric] 10.1600 cm Manufacturer Schneider Electric Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401219&lang=en-us Mounting Type Bolt-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable N Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Temperature Rating 104 °F Trip Type Shunt/Thermal Magnetic Type Type QOB Standard UNSPSC 39121603 UPC 11 78590116876 UPC 12 785901168768 Voltage Rating 240 VAC Warranty Description Contractual Warranty:18 months Width 3.1496 in Width [Metric] 8.1280 cm Wire Size 4 to 2/0 AWG HACR rated STANDARD BOLT-ON Designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation fewer connections Frees gutter space no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB31001042 |
| Amperage Rating | 100 A |
| Application | HACR rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QOB31001042 |
| Connection | BOX LUGS |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L x 3 in W x 3.5 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 1360.0100 lb |
| Gross Weight per Pack Metric | 616.89 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.5433 in |
| Height [Metric] | 8.6360 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00015 |
| Length | 3.9370 in |
| Length [Metric] | 10.1600 cm |
| Manufacturer | Schneider Electric |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401219&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | N |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Temperature Rating | 104 °F |
| Trip Type | Shunt/Thermal Magnetic |
| Type | Type QOB Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590116876 |
| UPC 12 | 785901168768 |
| Voltage Rating | 240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.1496 in |
| Width [Metric] | 8.1280 cm |
| Wire Size | 4 to 2/0 AWG |
| HACR rated |
| STANDARD BOLT-ON |
| Designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
