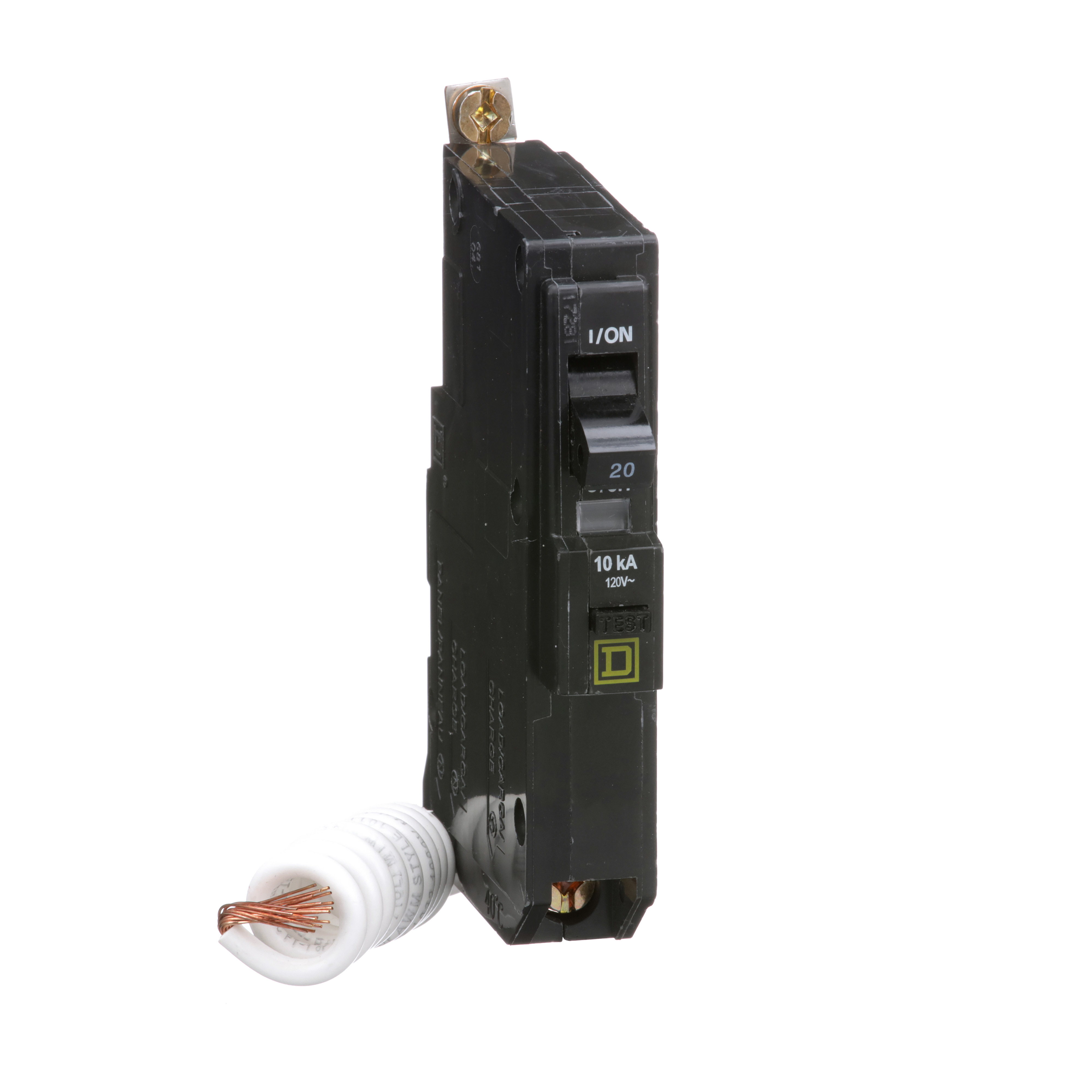

Square D™ QOB120EPD Ground-Fault Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOB120EPD Ground-Fault Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
SKU34400
MFGR #QOB120EPD
Your Cost: $417.00/ea
Square D QOB120EPD MINIATURE CIRCUIT BREAKER 120/240V 20A,1-Phase,10kA,120 Vac,20A,Ground Fault Protecting (Class B 30mA) Bolt-On,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),Provides overload and short circuit protection Designed to offer Class B (30mA) ground-fault protection for equipment,QO,UL Listed - CSA Certified
Square D QOB120EPD MINIATURE CIRCUIT BREAKER 120/240V 20A,1-Phase,10kA,120 Vac,20A,Ground Fault Protecting (Class B 30mA) Bolt-On,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),Provides overload and short circuit protection Designed to offer Class B (30mA) ground-fault protection for equipment,QO,UL Listed - CSA Certified
Alternate Catalog Number QOB120EPD Amperage Rating 20 A Application Not rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QOB120EPD Connection Pressure Plate Connection Type Pressure Plate Country of Origin US Currency USD Dimensions 2.91 in L x 0.75 in W x 4.12 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 23.60 Gross Volume per Pack Metric 386.65 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.5200 lb Gross Weight per Pack Metric 236.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 2.7940 in Height [Metric] 3.3020 cm Interrupt Rating 10 kA Item Group 00910 Length 13.9700 in Length [Metric] 13.9700 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400339&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 pH Returnable Y Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number QO1HT Temperature Rating 40 °C Trip Type Thermal Magnetic Type Ground Fault UNSPSC 39121603 UPC 11 78590176369 UPC 12 785901763697 Voltage Rating 120 VAC Warranty Description Contractual Warranty:18 months Width 9.9060 in Width [Metric] 9.9060 cm Wire Size 14 to 10 AWG/14 to 8 AWG Not rated GROUND FAULT PROTECTING (CLASS B 30MA) BOLT-ON 14 to 10 AWG copper, 14 to 8 AWG copper/aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB120EPD |
| Amperage Rating | 20 A |
| Application | Not rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QOB120EPD |
| Connection | Pressure Plate |
| Connection Type | Pressure Plate |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 2.91 in L x 0.75 in W x 4.12 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 23.60 |
| Gross Volume per Pack Metric | 386.65 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.5200 lb |
| Gross Weight per Pack Metric | 236.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 2.7940 in |
| Height [Metric] | 3.3020 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00910 |
| Length | 13.9700 in |
| Length [Metric] | 13.9700 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400339&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO1HT |
| Temperature Rating | 40 °C |
| Trip Type | Thermal Magnetic |
| Type | Ground Fault |
| UNSPSC | 39121603 |
| UPC 11 | 78590176369 |
| UPC 12 | 785901763697 |
| Voltage Rating | 120 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.9060 in |
| Width [Metric] | 9.9060 cm |
| Wire Size | 14 to 10 AWG/14 to 8 AWG |
| Not rated |
| GROUND FAULT PROTECTING (CLASS B 30MA) BOLT-ON |
| 14 to 10 AWG copper, 14 to 8 AWG copper/aluminum |
