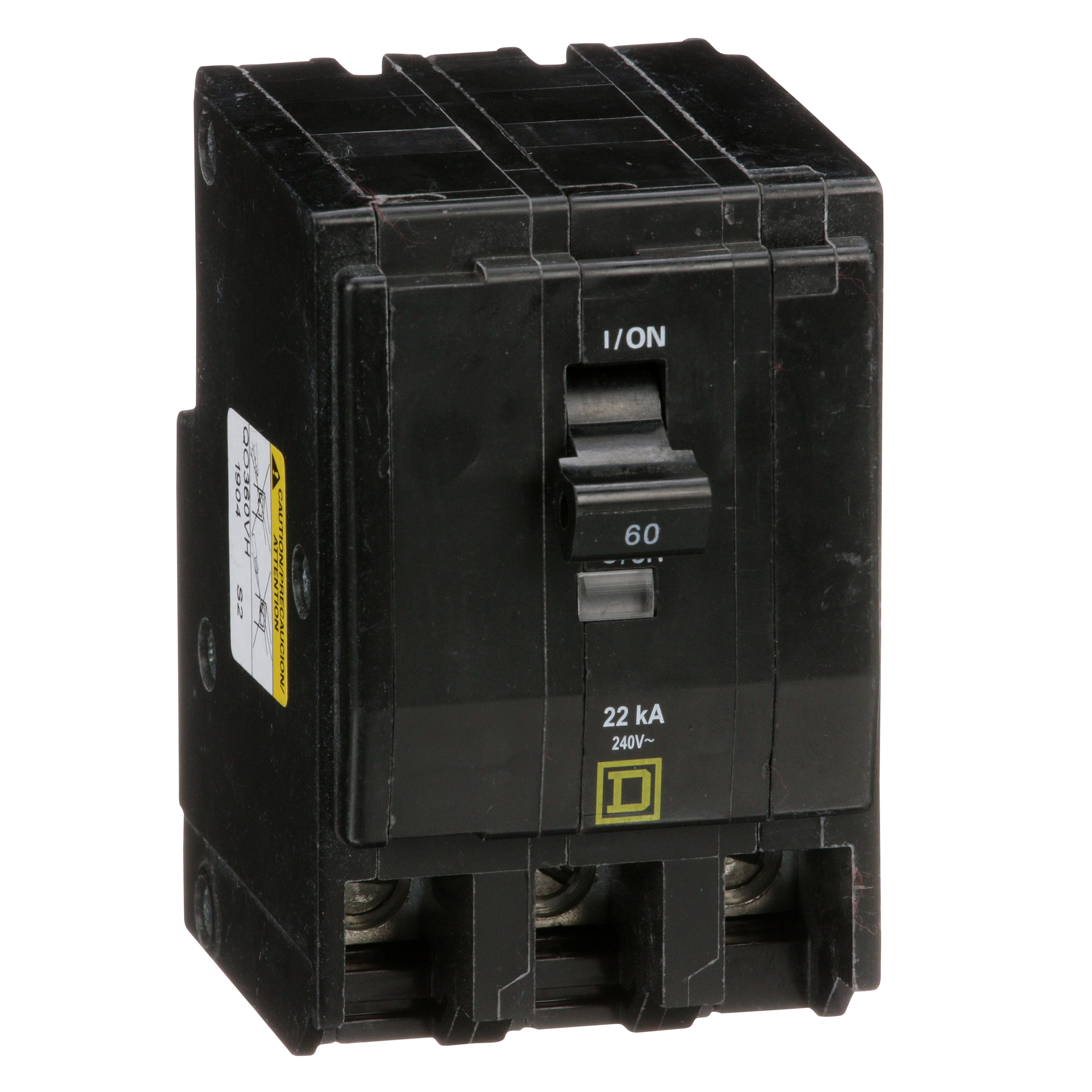

Square D™ QO360VH Type QO-VH Miniature Circuit Breaker, 120/240 VAC, 60 A, 22 kA at 120/240 VAC Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™ QO360VH Type QO-VH Miniature Circuit Breaker, 120/240 VAC, 60 A, 22 kA at 120/240 VAC Interrupt, 3 Poles
SKU245264
MFGR #QO360VH
Your Cost: $221.69/ea
List: Square D QO360VH MINIATURE CIRCUIT BREAKER 240V 60A,22kA,240 Vac,3-Phase,60A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified
Square D QO360VH MINIATURE CIRCUIT BREAKER 240V 60A,22kA,240 Vac,3-Phase,60A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified
Alternate Catalog Number QO360VH Amperage Rating 60 A Application HACR rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QO360VH Connection BOX LUGS Connection Type Box Lug Country of Origin MX Currency USD Dimensions 2.91 in L x 2.25 in W x 3.12 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 30.50 Gross Volume per Pack Metric 499.77 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.0400 lb Gross Weight per Pack Metric 471.74 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 8.6360 in Height [Metric] 5.8420 cm Interrupt Rating 22 kA Item Group 00926 Length 9.6520 in Length [Metric] 8.6360 cm Manufacturer Schneider Electric Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400073&lang=en-us Mounting Type Plug-In Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number QO24L70RB Temperature Rating 104 °F Trip Type Thermal Magnetic Type Type QO-VH Standard UNSPSC 39121603 UPC 11 78590106022 UPC 12 785901060222 Voltage Rating 240 VAC Warranty Description Contractual Warranty:18 months Width 5.8420 in Width [Metric] 9.9060 cm Wire Size 8 to 2 AWG HACR rated STANDARD PLUG-ON Designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation fewer connections Frees gutter space no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO360VH |
| Amperage Rating | 60 A |
| Application | HACR rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QO360VH |
| Connection | BOX LUGS |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L x 2.25 in W x 3.12 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 30.50 |
| Gross Volume per Pack Metric | 499.77 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.0400 lb |
| Gross Weight per Pack Metric | 471.74 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 8.6360 in |
| Height [Metric] | 5.8420 cm |
| Interrupt Rating | 22 kA |
| Item Group | 00926 |
| Length | 9.6520 in |
| Length [Metric] | 8.6360 cm |
| Manufacturer | Schneider Electric |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400073&lang=en-us |
| Mounting Type | Plug-In |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO24L70RB |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Type QO-VH Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590106022 |
| UPC 12 | 785901060222 |
| Voltage Rating | 240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.8420 in |
| Width [Metric] | 9.9060 cm |
| Wire Size | 8 to 2 AWG |
| HACR rated |
| STANDARD PLUG-ON |
| Designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
