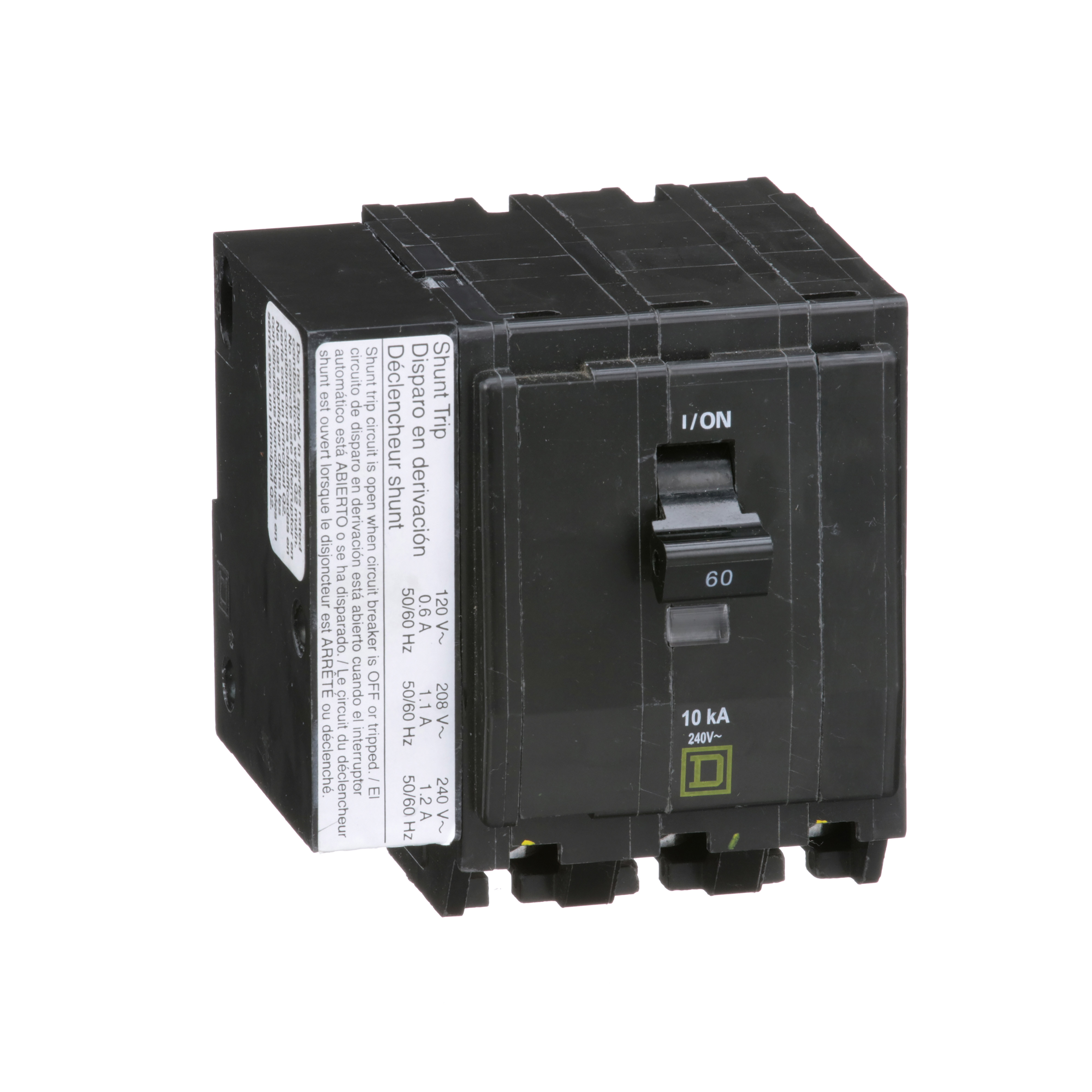

Square D™ QO3601021 Type QO Miniature Circuit Breaker, 120/240 VAC/48 VDC, 60 A, 3 Poles, Shunt/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QO3601021 Type QO Miniature Circuit Breaker, 120/240 VAC/48 VDC, 60 A, 3 Poles, Shunt/Thermal Magnetic Trip
SKU330321
MFGR #QO3601021
Your Cost: $502.82/ea
Square D QO3601021 MINIATURE CIRCUIT BREAKER 240V 60A,10kA,240 Vac,3-Phase,60A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified
Square D QO3601021 MINIATURE CIRCUIT BREAKER 240V 60A,10kA,240 Vac,3-Phase,60A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified
Alternate Catalog Number QO3601021 Amperage Rating 60 A Application HACR rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QO3601021 Connection BOX LUGS #8 TO #2 AWG(AL/CU) Connection Type Box Lug Country of Origin MX Currency USD Dimensions 2.91 in L x 3 in W x 3.12 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 55.30 Gross Volume per Pack Metric 906.14 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.1900 lb Gross Weight per Pack Metric 539.77 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 8.1280 in Height [Metric] 8.1280 cm Interrupt Rating 10 kA Item Group 00012 Length 12.1920 in Length [Metric] 12.1920 cm Manufacturer Schneider Electric Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400039&lang=en-us Mounting Type Plug-In Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number QO1816M200FTRB Temperature Rating 104 °F Trip Type Shunt/Thermal Magnetic Type Type QO Standard UNSPSC 39121603 UPC 11 78590149416 UPC 12 785901494164 Voltage Rating 240 VAC Warranty Description Contractual Warranty:18 months Width 9.1440 in Width [Metric] 9.1440 cm Wire Size 8 to 2 AWG HACR rated STANDARD PLUG-ON Designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation fewer connections Frees gutter space no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO3601021 |
| Amperage Rating | 60 A |
| Application | HACR rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QO3601021 |
| Connection | BOX LUGS #8 TO #2 AWG(AL/CU) |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L x 3 in W x 3.12 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 55.30 |
| Gross Volume per Pack Metric | 906.14 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.1900 lb |
| Gross Weight per Pack Metric | 539.77 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 8.1280 in |
| Height [Metric] | 8.1280 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00012 |
| Length | 12.1920 in |
| Length [Metric] | 12.1920 cm |
| Manufacturer | Schneider Electric |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400039&lang=en-us |
| Mounting Type | Plug-In |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO1816M200FTRB |
| Temperature Rating | 104 °F |
| Trip Type | Shunt/Thermal Magnetic |
| Type | Type QO Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590149416 |
| UPC 12 | 785901494164 |
| Voltage Rating | 240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.1440 in |
| Width [Metric] | 9.1440 cm |
| Wire Size | 8 to 2 AWG |
| HACR rated |
| STANDARD PLUG-ON |
| Designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
