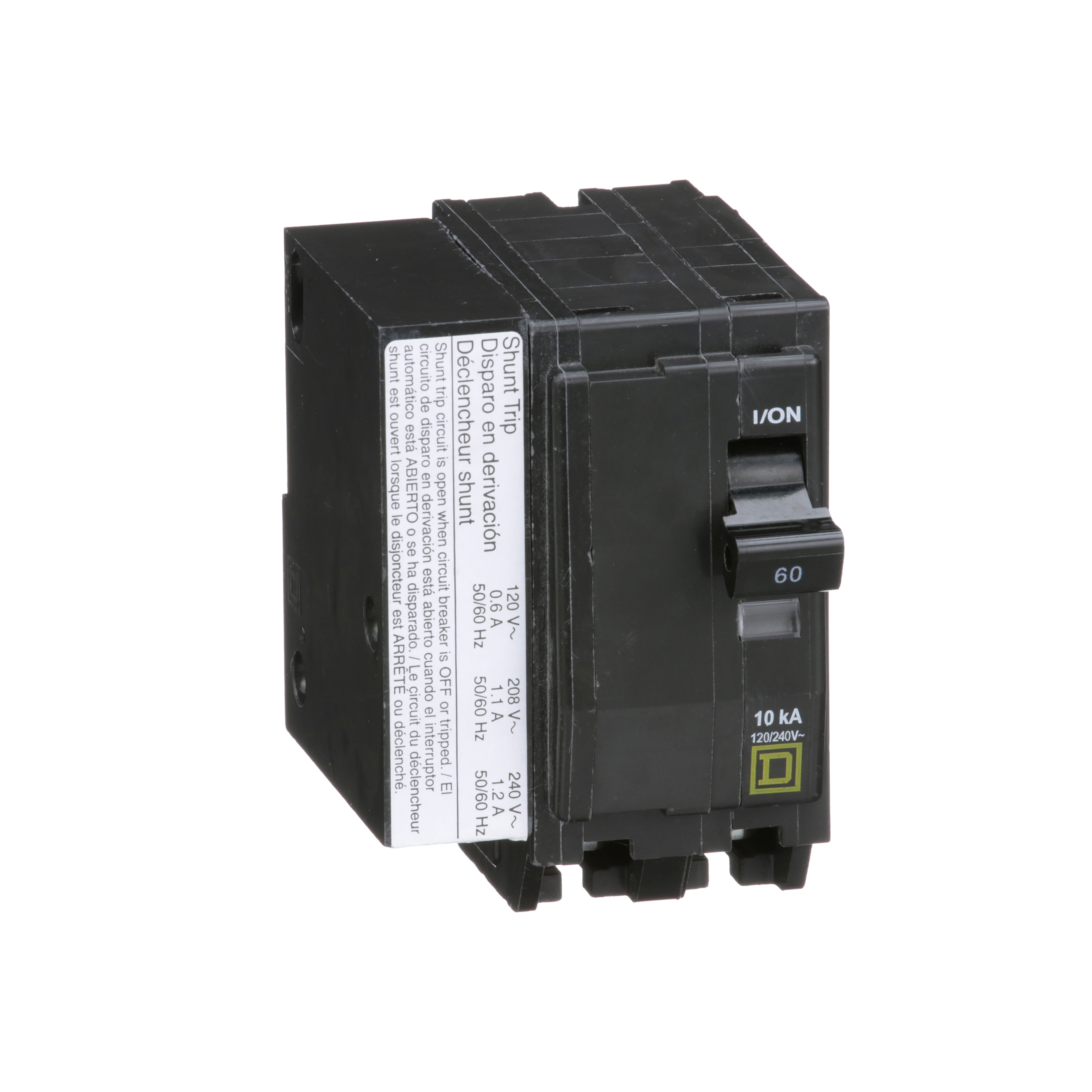

Square D™ QO2601021 Miniature Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QO2601021 Miniature Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU208337
MFGR #QO2601021
Your Cost: $147.57/ea
List: Square D QO2601021 MINIATURE CIRCUIT BREAKER 120/240V 60A,1-Phase,10kA,120/240 Vac,60A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified
Square D QO2601021 MINIATURE CIRCUIT BREAKER 120/240V 60A,1-Phase,10kA,120/240 Vac,60A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified
Alternate Catalog Number QO2601021 Amperage Rating 60 A Application HACR rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QO2601021 Connection BOX LUGS Connection Type Box Lug Country of Origin MX Currency USD Dimensions 2.91 in L EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 54.65 Gross Volume per Pack Metric 895.52 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.9400 lb Gross Weight per Pack Metric 426.38 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 8.3820 in Height [Metric] 8.3820 cm Interrupt Rating 10 kA Item Group 00004 Length 11.6840 in Length [Metric] 11.6840 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=399457&lang=en-us Mounting Type Plug-On Number Of Poles 2 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number QO612L100TRB Temperature Rating 104 °F Trip Type Thermal Magnetic Type Standard UNSPSC 39121603 UPC 11 78590149403 UPC 12 785901494034 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:18 months Width 9.1440 in Width [Metric] 9.1440 cm Wire Size 8 to 2 AWG HACR rated STANDARD PLUG-ON QO™ and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication Plug-on QO™ circuit breakers are for use in QO™ loadcenters, NQ and NQOD panelboards, OEM mounting bases and Speed D™ switchboard distribution panels QO™ and QOB circuit breakers have Visi-Trip™ feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit Common trip 120/208/240 VAC shunt trip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO2601021 |
| Amperage Rating | 60 A |
| Application | HACR rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QO2601021 |
| Connection | BOX LUGS |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 54.65 |
| Gross Volume per Pack Metric | 895.52 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.9400 lb |
| Gross Weight per Pack Metric | 426.38 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 8.3820 in |
| Height [Metric] | 8.3820 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00004 |
| Length | 11.6840 in |
| Length [Metric] | 11.6840 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=399457&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO612L100TRB |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590149403 |
| UPC 12 | 785901494034 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.1440 in |
| Width [Metric] | 9.1440 cm |
| Wire Size | 8 to 2 AWG |
| HACR rated |
| STANDARD PLUG-ON |
| QO™ and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| Plug-on QO™ circuit breakers are for use in QO™ loadcenters, NQ and NQOD panelboards, OEM mounting bases and Speed D™ switchboard distribution panels |
| QO™ and QOB circuit breakers have Visi-Trip™ feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| Common trip |
| 120/208/240 VAC shunt trip |
