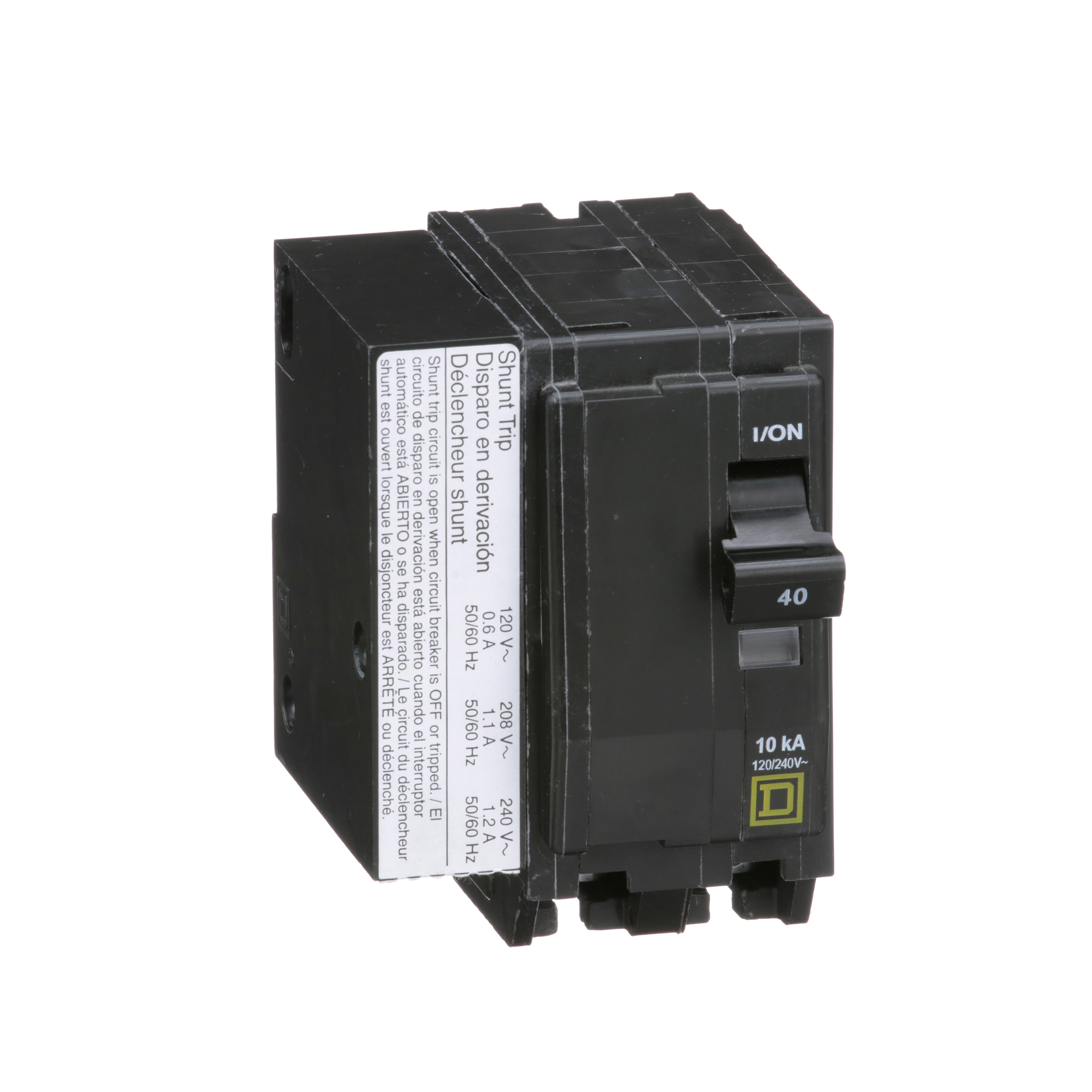

Square D™ QO2401021 Miniature Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Circuit Breakers
318672
MFG #: QO2401021
Square D™
147.57000
/ ea
Square D QO2401021 MINIATURE CIRCUIT BREAKER 120/240V 40A,1-Phase,10kA,120/240 Vac,40A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8070604360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=QO2401021(3D Rendering URL)
- Brochure URL - 11003_SF18VI3Y75ANRTGZ.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=0102BR0201.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_c5b326735eb8d1d236aee0ae89f871f8971a71ae7f56a2c5995b35a605d67649.pdf(Catalog URL)
- Compliance Cert URL - Square_D_QO2401021_Compliance_Certificate.pdf(Compliance Cert URL)
- Install Instructions 1 URL - 11003_GFAQ21JLRXTDBHUE.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Video - https://youtube.com/embed/ECi6An24KbQ(Video)
- Spec Sheet URL(Spec Sheet URL)
- Tech Drawing URL - 11003_FIJXBU25QOH73EN8.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_MCWAI5G4K81F6QZJ.pdf(Tech Drawing URL)
- Spec Sheet URL - 11003_AOER63S1F4GJTIK0.pdf(Spec Sheet URL)
- Applications
- Features
| HACR rated |
| STANDARD PLUG-ON |
| QO™ and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| Plug-on QO™ circuit breakers are for use in QO™ loadcenters, NQ and NQOD panelboards, OEM mounting bases and Speed D™ switchboard distribution panels |
| QO™ and QOB circuit breakers have Visi-Trip™ feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| Common trip |
| 120/208/240 VAC shunt trip |
