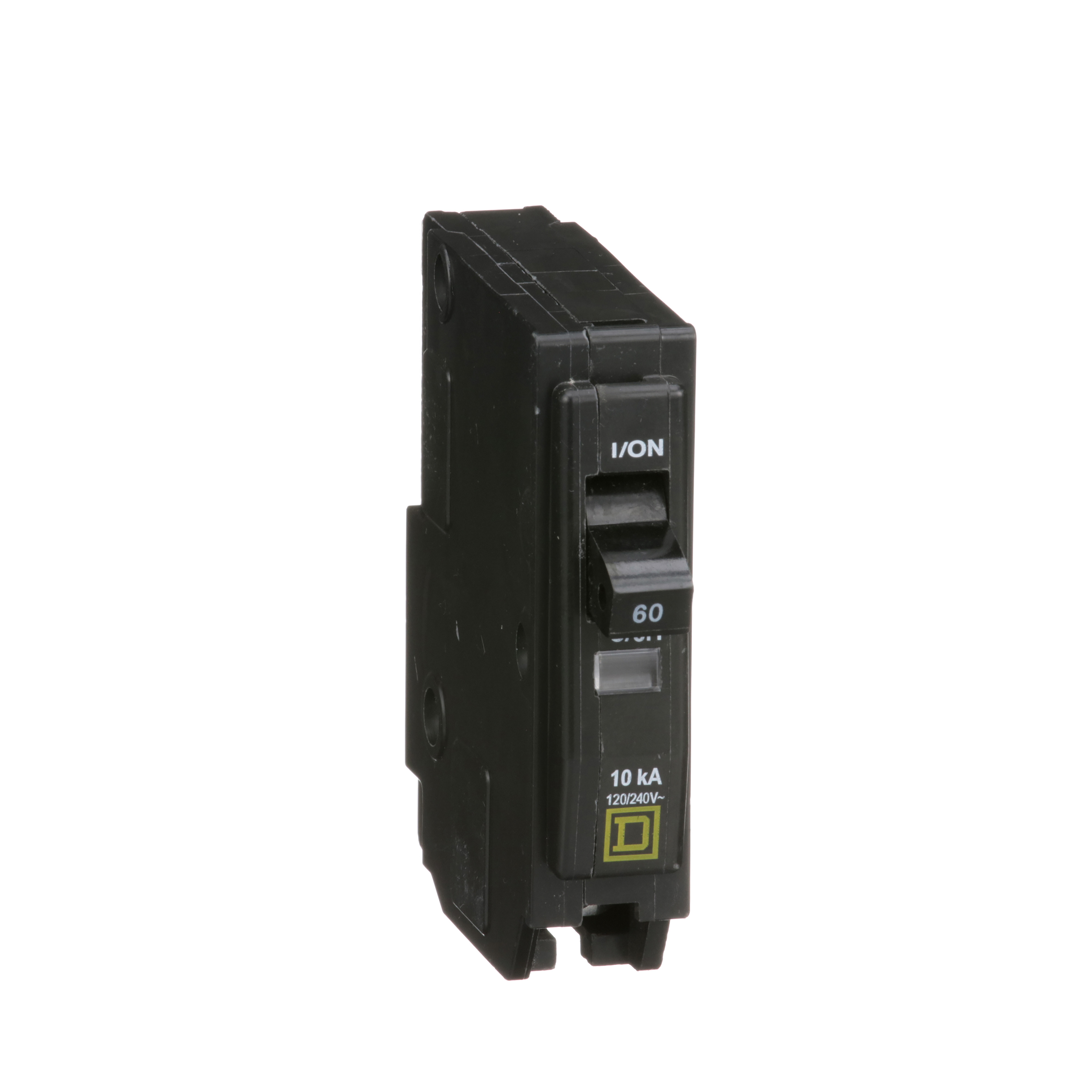

Square D™ QO160 Miniature Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QO160 Miniature Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
SKU33429
MFGR #QO160
Your Cost: $33.82/ea
Square D QO160 MINIATURE CIRCUIT BREAKER 120/240V 60A,1-Phase,10kA,120/240 Vac,60A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified
Square D QO160 MINIATURE CIRCUIT BREAKER 120/240V 60A,1-Phase,10kA,120/240 Vac,60A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified
Alternate Catalog Number QO160 Amperage Rating 60 A Application HACR rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QO160 Connection BOX LUGS #8 TO #2 AWG(AL/CU) Connection Type Box Lug Country of Origin US Currency USD Dimensions 2.91 in L x 0.75 in W x 3 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 8.57 Gross Volume per Pack Metric 140.52 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.3100 lb Gross Weight per Pack Metric 141.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 1.7780 in Height [Metric] 1.7780 cm Interrupt Rating 10 kA Item Group 00104 Length 8.8900 in Length [Metric] 8.8900 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398739&lang=en-us Mounting Type Plug-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number QO612L100RB Temperature Rating 104 °F Trip Type Thermal Magnetic Type Standard UNSPSC 39121603 UPC 11 78590147746 UPC 12 785901477464 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:18 months Width 8.8900 in Width [Metric] 8.8900 cm Wire Size 8 to 2 AWG HACR rated STANDARD PLUG-ON Plug-on QO circuit breakers are for use in QO load centers, NQ and NQOD panelboards, OEM mounting bases, and Speed D™ switchboard distribution panels
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO160 |
| Amperage Rating | 60 A |
| Application | HACR rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QO160 |
| Connection | BOX LUGS #8 TO #2 AWG(AL/CU) |
| Connection Type | Box Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 2.91 in L x 0.75 in W x 3 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 8.57 |
| Gross Volume per Pack Metric | 140.52 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.3100 lb |
| Gross Weight per Pack Metric | 141.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 1.7780 in |
| Height [Metric] | 1.7780 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00104 |
| Length | 8.8900 in |
| Length [Metric] | 8.8900 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398739&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO612L100RB |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590147746 |
| UPC 12 | 785901477464 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.8900 in |
| Width [Metric] | 8.8900 cm |
| Wire Size | 8 to 2 AWG |
| HACR rated |
| STANDARD PLUG-ON |
| Plug-on QO circuit breakers are for use in QO load centers, NQ and NQOD panelboards, OEM mounting bases, and Speed D™ switchboard distribution panels |
