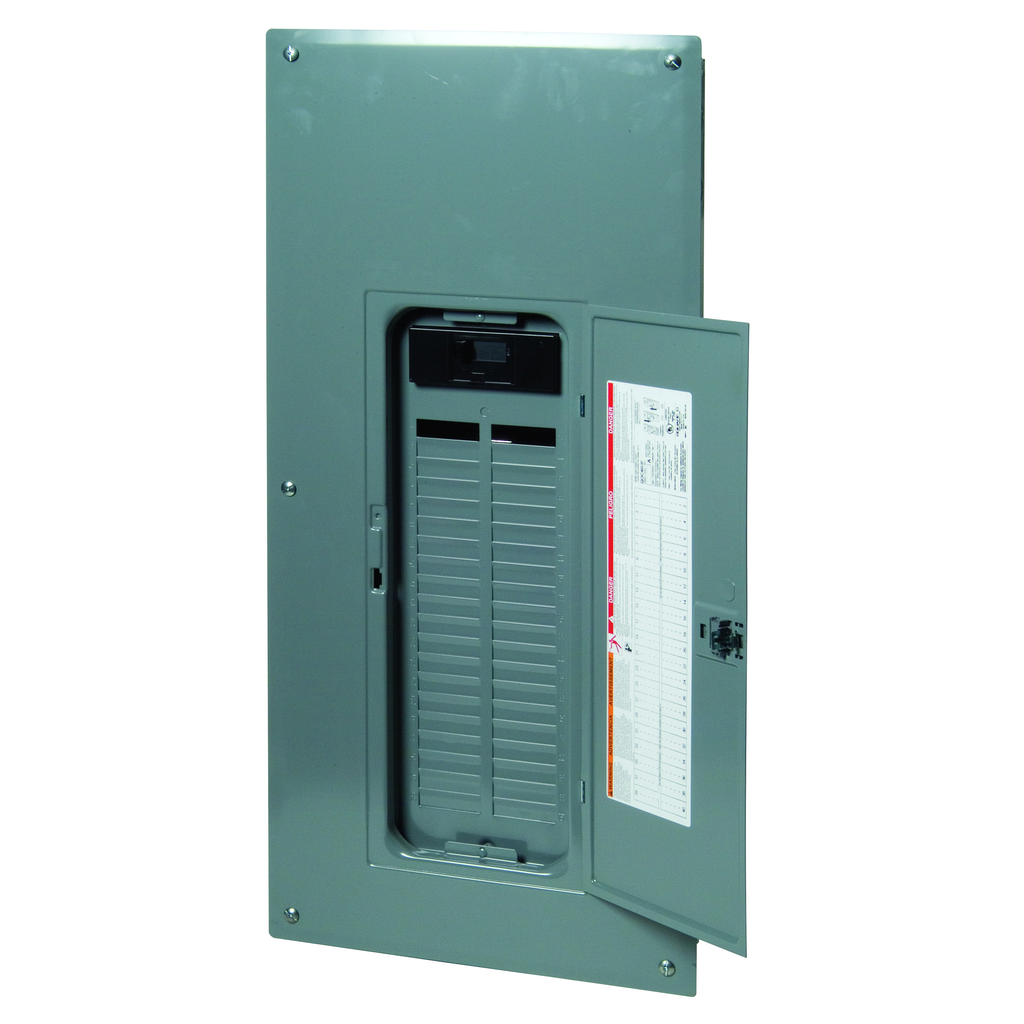

Square D™ QO140M200C LOADCTR QO MB 240V 2
SKU100032
MFGR #QO140M200C
Your Cost: $751.05/ea
List: Square D QO140M200C LOADCTR QO MB 240V 200A 1PH 40SP NEMA 1,#4 to 250 AWG/kcmil(Al/Cu),1 phase,120/240 V AC,120/240 V AC,22 kA,200 A,3-Wire,Combination Flush/Surface,Convertible Mains (breaker),Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,Load Center,NEMA 1,QO,UL Listed
Square D QO140M200C LOADCTR QO MB 240V 200A 1PH 40SP NEMA 1,#4 to 250 AWG/kcmil(Al/Cu),1 phase,120/240 V AC,120/240 V AC,22 kA,200 A,3-Wire,Combination Flush/Surface,Convertible Mains (breaker),Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,Load Center,NEMA 1,QO,UL Listed
Breaker Mounting Panel Catalog Number QO140M200C Country of Origin US Dimensions 33.78 in H x 14.25 in W x 3.75 in D Enclosure Box Size 10 Enclosure Type NEMA 1 Frequency Rating 50/60 Hz Gross Weight Per Pack 33.3300 lb Housing Material Sheet Steel Item Group 00001 Mounting Type Flush Number of Circuits 40 Number Of Poles 1 Number Of Spaces 40 Returnable N Type 1-Phase Convertible UNSPSC 39121101 UPC 11 78590186766 Wire Size 4 AWG to 250 kcmil Al/Cu Wiring Configuration 3-wire Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 A Interrupt Rating 22 kA Voltage Rating 120/240 VAC MAIN BREAKER,TIN PLATED COPPER BUSBAR Aluminum bus construction on fixed mains panels Shielded 1-piece tin plated copper bus construction on convertible mains panels, an industry exclusive for protection and performance Service entrance equipment capable panels Split branch neutral for clutter-free wiring Top or bottom feed by rotating convertible mains panels 180 deg Single captive screw interior mounting on indoor panels to ease removal Straight-in wiring to help minimize service cable installation Side hinge doors on outdoor convertible main panels Gray baked enamel surface finish Provisions for door lock on convertible mains panel covers
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
Breaker Mounting | Panel |
Catalog Number | QO140M200C |
Country of Origin | US |
Dimensions | 33.78 in H x 14.25 in W x 3.75 in D |
Enclosure Box Size | 10 |
Enclosure Type | NEMA 1 |
Frequency Rating | 50/60 Hz |
Gross Weight Per Pack | 33.3300 lb |
Housing Material | Sheet Steel |
Item Group | 00001 |
Mounting Type | Flush |
Number of Circuits | 40 |
Number Of Poles | 1 |
Number Of Spaces | 40 |
Returnable | N |
Type | 1-Phase Convertible |
UNSPSC | 39121101 |
UPC 11 | 78590186766 |
Wire Size | 4 AWG to 250 kcmil Al/Cu |
Wiring Configuration | 3-wire |
Stock Status | NONSTOCK |
Brand | Square D™ |
Manufacturer | Schneider Electric |
Amperage Rating | 200 A |
Interrupt Rating | 22 kA |
Voltage Rating | 120/240 VAC |
MAIN BREAKER,TIN PLATED COPPER BUSBAR |
Aluminum bus construction on fixed mains panels |
Shielded 1-piece tin plated copper bus construction on convertible mains panels, an industry exclusive for protection and performance |
Service entrance equipment capable panels |
Split branch neutral for clutter-free wiring |
Top or bottom feed by rotating convertible mains panels 180 deg |
Single captive screw interior mounting on indoor panels to ease removal |
Straight-in wiring to help minimize service cable installation |
Side hinge doors on outdoor convertible main panels |
Gray baked enamel surface finish |
Provisions for door lock on convertible mains panel covers |
