Square D™

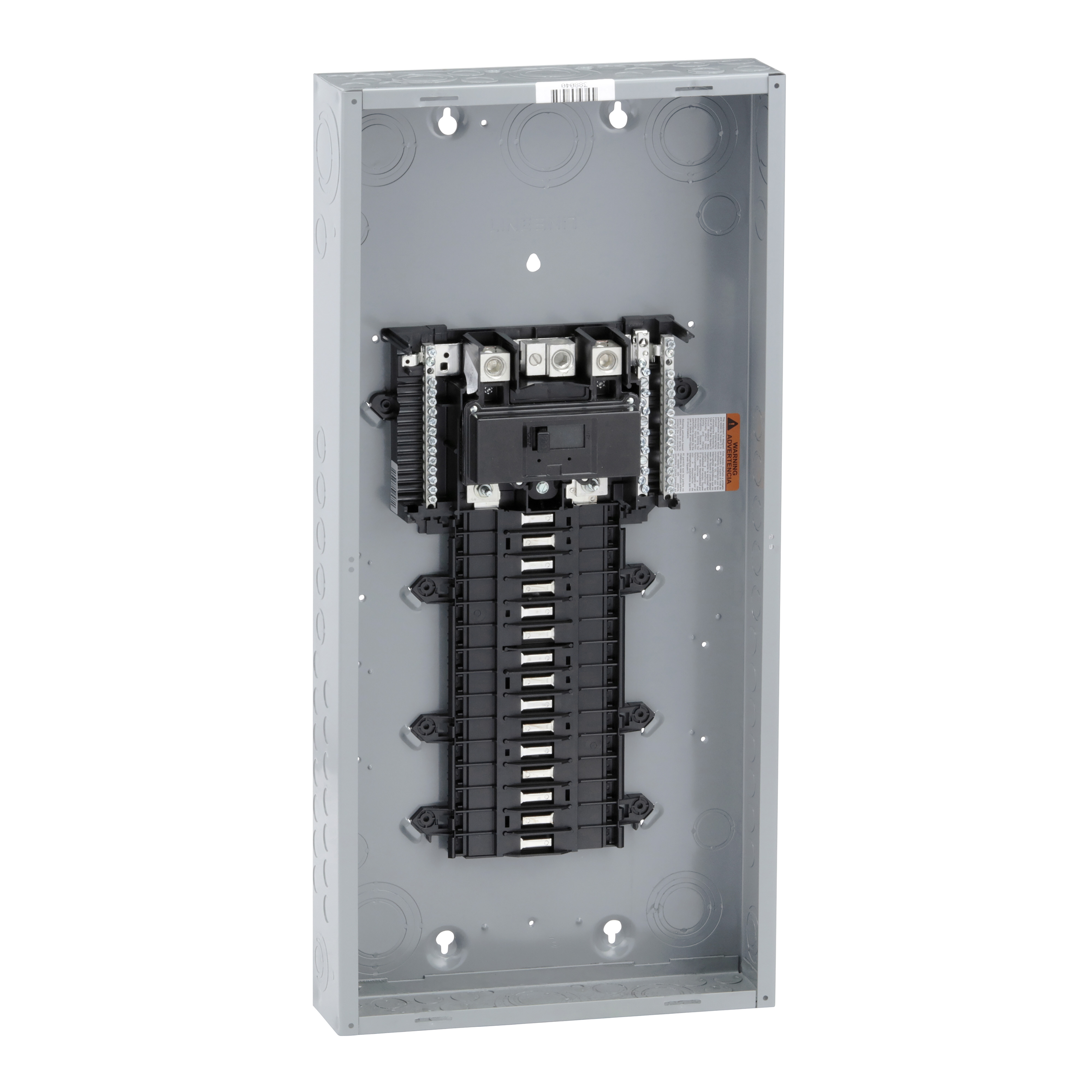

Square D™ QO130M200P QO® Single Phase Main Breaker Load Center, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt
Custom_Product_Images_Illustration
Square D™
Square D™ QO130M200P QO® Single Phase Main Breaker Load Center, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt
SKU723526
MFGR #QO130M200P
$/ea
Square D QO130M200P QO PLUG-ON NEUT LC N1 1PH MB 240V 200A,1-Phase,200 A,22 kA,240 VAC,3-wire,30,30,4 AWG TO 250 KCMIL (ALUMINUM/COPPER),Main Breaker Convertible Load Center,NEMA 1,None,Plug-On Neutral,Plug-on,QOM2,UL Listed, CSA Certified
Square D QO130M200P QO PLUG-ON NEUT LC N1 1PH MB 240V 200A,1-Phase,200 A,22 kA,240 VAC,3-wire,30,30,4 AWG TO 250 KCMIL (ALUMINUM/COPPER),Main Breaker Convertible Load Center,NEMA 1,None,Plug-On Neutral,Plug-on,QOM2,UL Listed, CSA Certified
Alternate Catalog Number QO130M200P ARRA Compliant N Breaker Mounting Panel Breaker Type QOM2 Buy American Compliant N Catalog Number QO130M200P Country of Origin US Cover Type ORDER SEPARATELY Currency USD Dimensions 29.86 in H x 14.25 in W x 3.75 in D Enclosure Box Size 9 Enclosure Type NEMA 1 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 1913.94 Gross Volume per Pack Metric 31363.74 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0846 lb Gross Weight per Pack Metric 8.59 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 11.1760 in Height [Metric] 11.1760 cm Housing Material Steel Item Group 10001 Length 78.7400 in Length [Metric] 78.7400 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=239671181&lang=en-us Mounting Type Plug-On Number of Circuits 30 Number Of Poles 1 Number Of Spaces 30 Phase 1 Returnable Y Substitute Product Catalog Number QO250PSPD Type 1-Phase Convertible Neutral UNSPSC 39121101 UPC 11 78590124253 UPC 12 785901242536 Warranty Description Contractual Warranty:18 months Width 38.1000 in Width [Metric] 38.1000 cm Wire Size 4 AWG to 250 kcmil Wiring Configuration 3-Wire Stock Status NORMALLY STOCKED Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 A Interrupt Rating 22 kA Voltage Rating 120/240 VAC PLUG-ON NEUTRAL Tin plated aluminum bus construction on main lug or main circuit breaker panels Service entrance equipment capable panels Straight-in wiring to help minimize service cable installation Single captive screw interior mounting on indoor panels to ease removal New side hinge doors on outdoor convertible main panels Outdoor panel covers are lockable with padlock Gray baked enamel electrodeposited over cleaned, phosphatized steel Top or bottom feed by rotating enclosure
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | QO130M200P |
| ARRA Compliant | N |
| Breaker Mounting | Panel |
| Breaker Type | QOM2 |
| Buy American Compliant | N |
| Catalog Number | QO130M200P |
| Country of Origin | US |
| Cover Type | ORDER SEPARATELY |
| Currency | USD |
| Dimensions | 29.86 in H x 14.25 in W x 3.75 in D |
| Enclosure Box Size | 9 |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1913.94 |
| Gross Volume per Pack Metric | 31363.74 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0846 lb |
| Gross Weight per Pack Metric | 8.59 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 11.1760 in |
| Height [Metric] | 11.1760 cm |
| Housing Material | Steel |
| Item Group | 10001 |
| Length | 78.7400 in |
| Length [Metric] | 78.7400 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=239671181&lang=en-us |
| Mounting Type | Plug-On |
| Number of Circuits | 30 |
| Number Of Poles | 1 |
| Number Of Spaces | 30 |
| Phase | 1 |
| Returnable | Y |
| Substitute Product Catalog Number | QO250PSPD |
| Type | 1-Phase Convertible Neutral |
| UNSPSC | 39121101 |
| UPC 11 | 78590124253 |
| UPC 12 | 785901242536 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 38.1000 in |
| Width [Metric] | 38.1000 cm |
| Wire Size | 4 AWG to 250 kcmil |
| Wiring Configuration | 3-Wire |
| Stock Status | NORMALLY STOCKED |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 A |
| Interrupt Rating | 22 kA |
| Voltage Rating | 120/240 VAC |
| PLUG-ON NEUTRAL |
| Tin plated aluminum bus construction on main lug or main circuit breaker panels |
| Service entrance equipment capable panels |
| Straight-in wiring to help minimize service cable installation |
| Single captive screw interior mounting on indoor panels to ease removal |
| New side hinge doors on outdoor convertible main panels |
| Outdoor panel covers are lockable with padlock |
| Gray baked enamel electrodeposited over cleaned, phosphatized steel |
| Top or bottom feed by rotating enclosure |
