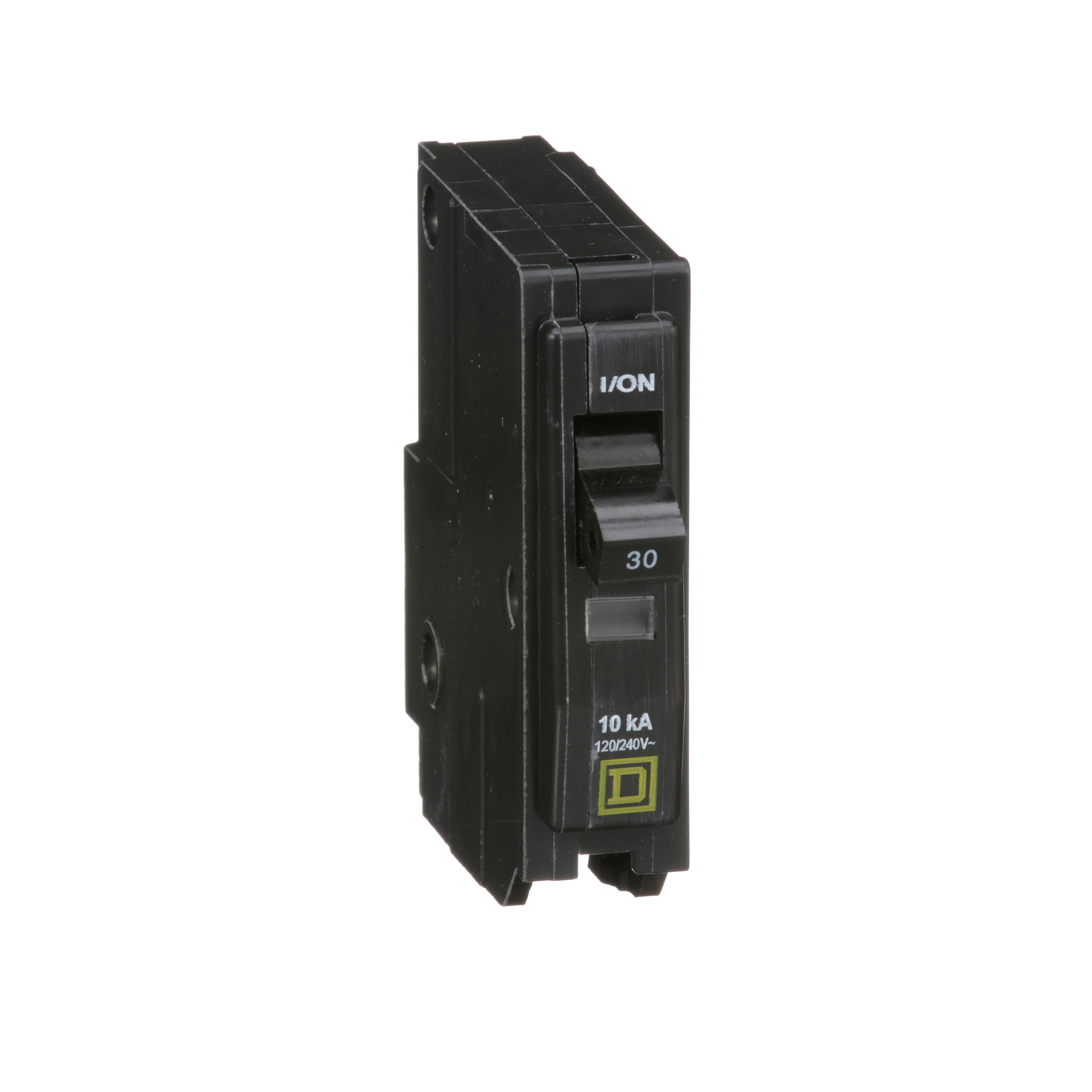

Square D™ QO130 Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Miniature Circuit Breakers
33194
MFG #: QO130
Square D™
14.45000
/ ea
Square D QO130 MINIATURE CIRCUIT BREAKER 120/240V 30A,1-Phase,10kA,120/240 Vac,30A,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Plug-On,UL Listed - CSA Certified
- 360 Degree View URL - index.html?pid=11003&id=8027634360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=QO130(3D Rendering URL)
- Compliance Cert URL - Square_D_QO130_Compliance_Certificate.pdf(Compliance Cert URL)
- Install Instructions 1 URL - 11003_J3N0V7I21RWPY6ZX.pdf(Install Instructions 1 URL)
- Catalog URL - IDW_DOCUMENT_6a8ec27071615868a3825150af1be22a988ff5ec55f1a1f815c4f84d5bdfb65f.pdf(Catalog URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Video - https://www.youtube.com/embed/h3tJoPmFAOw(Video)
- Spec Sheet URL - 11003_1ILH3J0GRVA7EOX9.pdf(Spec Sheet URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=0102DB2301.pdf(Tech Bulletin URL)
- Applications
- Features
| HACR RATED |
| STANDARD PLUG-ON |
| QO® and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously |
| Plug-on QO® circuit breakers are for use in QO® load centers, NQ and NQOD panelboards, OEM mounting bases and Speed-D® switchboard distribution panels |
| QO® and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| 14 to 8 AWG aluminum/copper wire |
| Standard |
