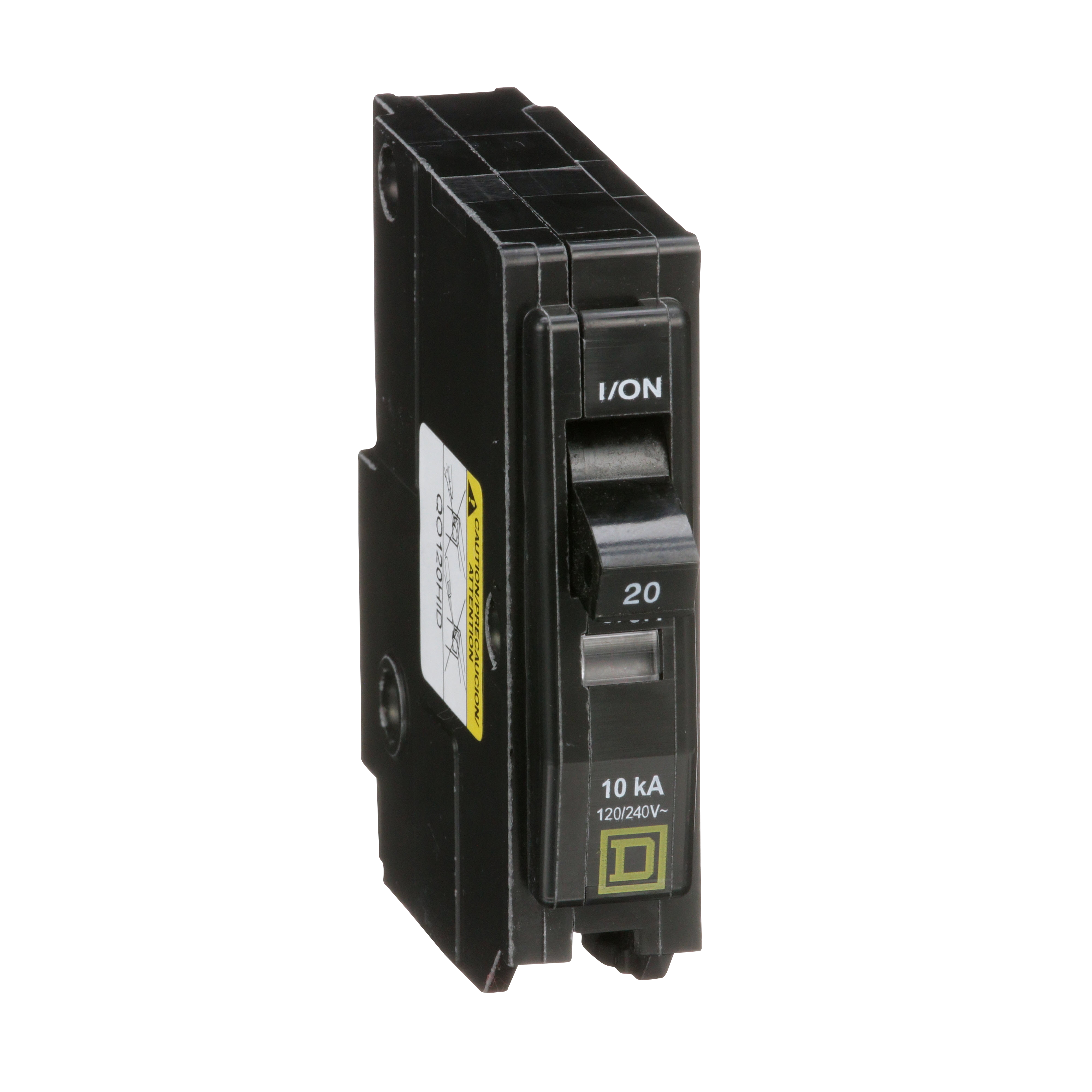

Square D™ QO120HID Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QO120HID Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
SKU33782
MFGR #QO120HID
Your Cost: $44.28/ea
Square D QO120HID MINIATURE CIRCUIT BREAKER 120/240V 20A,1-Phase,10kA,120/240 Vac,20A,High Intensity Discharge Plug-On,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),Provides overload and short circuit protection Designed for use on circuits feeding fluorescent and other high intensity discharge lighting systems.,QO,UL Listed - CSA Certified
Square D QO120HID MINIATURE CIRCUIT BREAKER 120/240V 20A,1-Phase,10kA,120/240 Vac,20A,High Intensity Discharge Plug-On,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),Provides overload and short circuit protection Designed for use on circuits feeding fluorescent and other high intensity discharge lighting systems.,QO,UL Listed - CSA Certified
Alternate Catalog Number QO120HID Amperage Rating 20 A Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED FOR USE ON CIRCUITS FEEDING FLUORESCENT AND OTHER HIGH INTENSITY DISCHARGE LIGHTING SYSTEMS. ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QO120HID Connection PRESSURE PLATE #14 TO #8 AWG(AL/CU) Connection Type Pressure Plate Country of Origin US Currency USD Dimensions 2.91 in L x 0.75 in W x 3 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 7.92 Gross Volume per Pack Metric 129.78 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2800 lb Gross Weight per Pack Metric 127.01 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.6200 in Height [Metric] 7.6200 cm Interrupt Rating 10 kA Item Group 00080 Length 8.3820 in Length [Metric] 8.3820 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398463&lang=en-us Mounting Type Plug-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number QO1PA Temperature Rating 104 °F Trip Type Thermal Magnetic Type Type QO UNSPSC 39121603 UPC 11 78590154372 UPC 12 785901543725 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:18 months Width 2.0320 in Width [Metric] 2.0320 cm Wire Size 14 to 8 AWG PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED FOR USE ON CIRCUITS FEEDING FLUORESCENT AND OTHER HIGH INTENSITY DISCHARGE LIGHTING SYSTEMS. HIGH INTENSITY DISCHARGE PLUG-ON Qwik-Open™ circuit breaker protection Trips thermally (in an overload situation) or magnetically (under a short circuit situation) Quick make, quick break operating mechanism K-curve trip High intensity discharge rated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO120HID |
| Amperage Rating | 20 A |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED FOR USE ON CIRCUITS FEEDING FLUORESCENT AND OTHER HIGH INTENSITY DISCHARGE LIGHTING SYSTEMS. |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QO120HID |
| Connection | PRESSURE PLATE #14 TO #8 AWG(AL/CU) |
| Connection Type | Pressure Plate |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 2.91 in L x 0.75 in W x 3 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 7.92 |
| Gross Volume per Pack Metric | 129.78 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2800 lb |
| Gross Weight per Pack Metric | 127.01 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.6200 in |
| Height [Metric] | 7.6200 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00080 |
| Length | 8.3820 in |
| Length [Metric] | 8.3820 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398463&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO1PA |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Type QO |
| UNSPSC | 39121603 |
| UPC 11 | 78590154372 |
| UPC 12 | 785901543725 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 2.0320 in |
| Width [Metric] | 2.0320 cm |
| Wire Size | 14 to 8 AWG |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED FOR USE ON CIRCUITS FEEDING FLUORESCENT AND OTHER HIGH INTENSITY DISCHARGE LIGHTING SYSTEMS. |
| HIGH INTENSITY DISCHARGE PLUG-ON |
| Qwik-Open™ circuit breaker protection |
| Trips thermally (in an overload situation) or magnetically (under a short circuit situation) |
| Quick make, quick break operating mechanism |
| K-curve trip |
| High intensity discharge rated |
