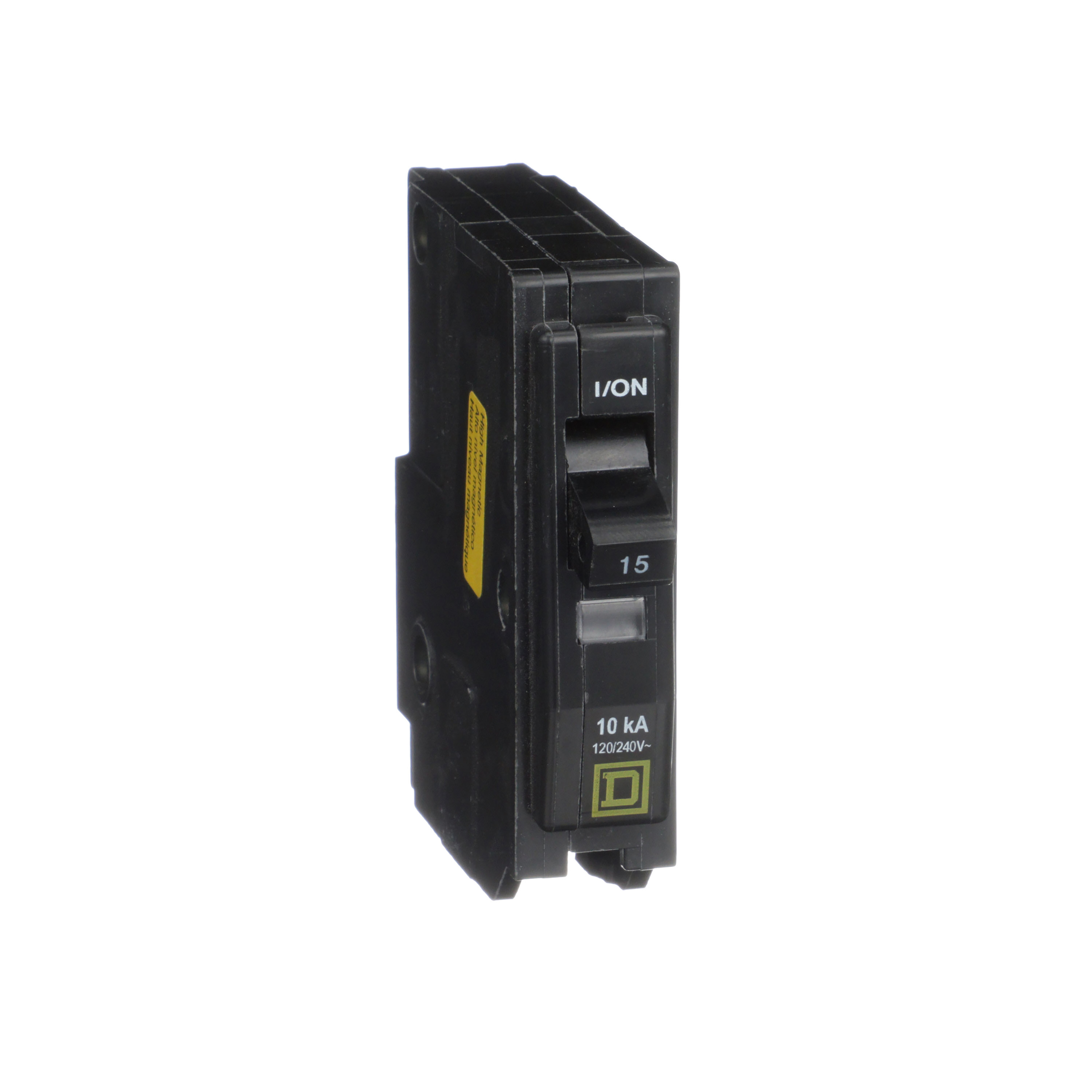

Square D™ QO115HM QO® Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Circuit Breakers
33190
MFG #: QO115HM
Square D™
17.09000
/ ea
Square D QO115HM MINIATURE CIRCUIT BREAKER 120/240V 15A,1-Phase,10kA,120 Vac,15A,High Magnetic Plug-On,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),Provides overload and short circuit protection Recommended for applications where high initial inrush may occur,QO,UL Listed - CSA Certified
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8027580360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=QO115HM(3D Rendering URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=0102BR0201.pdf(Brochure URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Catalog URL - Square_D_QO115HM_Catalog.pdf(Catalog URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=0102DB2301.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/h3tJoPmFAOw(Video)
- Seller Home Page URL - us(Seller Home Page URL)
- Compliance Cert URL - Square_D_QO115HM_Compliance_Certificate.pdf(Compliance Cert URL)
- Install Instructions 1 URL - 11003_J3N0V7I21RWPY6ZX.pdf(Install Instructions 1 URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_JN6M7YU1OV3CTQ0E.pdf(Spec Sheet URL)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION RECOMMENDED FOR APPLICATIONS WHERE HIGH INITIAL INRUSH MAY OCCUR |
| HIGH MAGNETIC PLUG-ON |
| QO-HID and QOB-HID high-magnetic circuit breakers are recommended for area lighting (such as athletic fields, parking lots, and outdoor signs), when using lamps of inherent high inrush current, individual dimmer applications or other applications where high inrush currents exceed standard tripping conditions |
| QO-HID and QOB-HID circuit breakers are manufactured with larger contacts than standard QO and QOB circuit breakers to allow switching of high inductive loads |
| VISI-TRIP feature |
| 14 - 8 AWG copper/aluminum |
| High magnetic |
