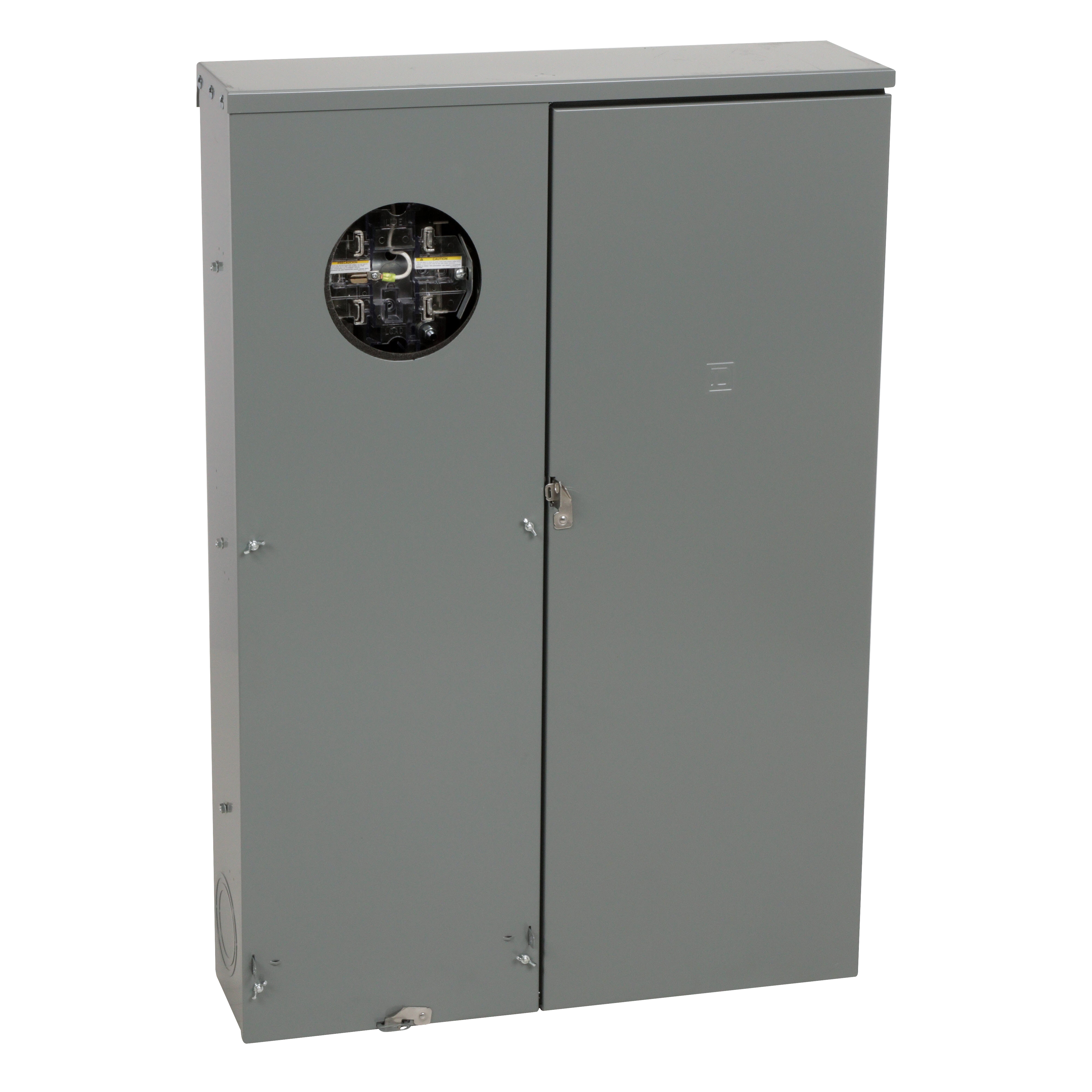

Square D™ QO™ QU12L400CL 12-Circuit All-in-One Field Installed Rainproof Combination Service Entrance Meter Main With Class 320 Lever Bypass and Field Installed Flange Kit, 120/240 VAC, 400 A, 1 Phase, NEMA 3R Enclosure
Meter Mains
PDW~6415409
MFG #: QU12L400CL
Square D™
0.00000
/ ea
Square D™ QO™ Combination Service Entrance Meter Main, 12-Circuit All-in-One Field Installed Rainproof, 120/240 VAC, 400 A, 1 ph, Underground Feed, 5 Jaws, 4 AWG to 250 kcmil Wire, A-L Hub, 2-1/2 in, 3 in, 3-1/2 in, 4 in Hub, Ringless Cover, Lug/Stud Terminal, Surface Mounting, NEMA 3R Enclosure, 43 in H x 28-1/4 in W x 7-1/2 in D Dimensions
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8043594360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_O20ILD847ERGQUMN.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - 67c46f8bac17c12c958cdd7c59a1347cd701e059.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_KPZTCJHD4Y7N1XSE.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_DNMCABO3T5X4ELP9.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_BPZNILRYAUEC635M.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_HP32Z6TL9UG1NYQO.dwg(Tech Drawing URL)
- Applications
- Features
| Residential Applications |
| CLASS 320 LEVER BYPASS,RINGLESS |
| Multiple disconnect units can accommodate plug-on surge Breaker™ secondary surge arrester |
| Multiple disconnect units can be converted to semi-flush with addition of flange kit |
| 4 AWG to 250 kcmil aluminum/copper service ground lug |
| Knockout provided in cover for use with barrel lock kit SCBRLLOCK |
| Surface mount or convertible to semi-flush with field installed flange kit |
| 3-wire configuration |
| 5th jaw factory installed |
