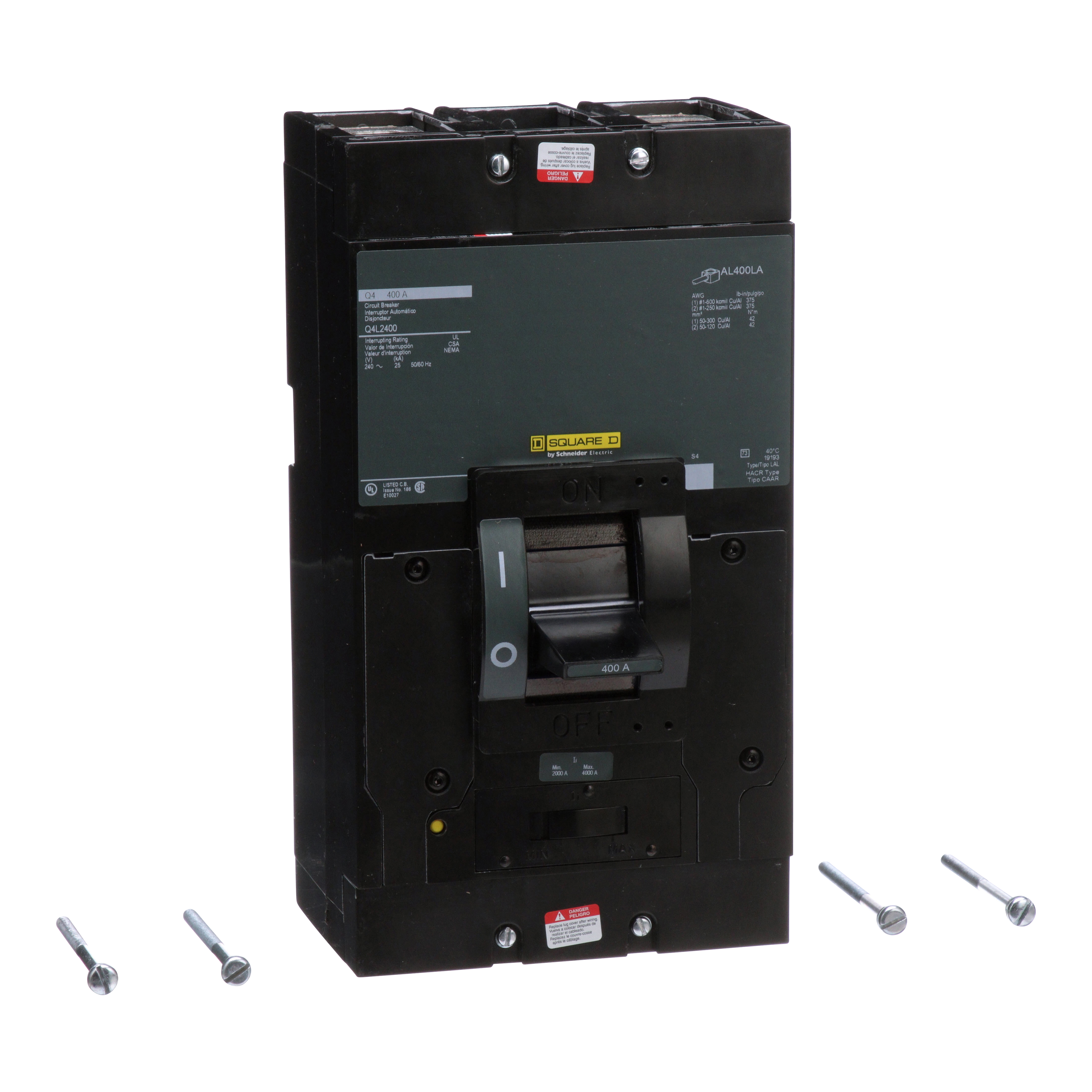

Square D™ Q4L2400 Type Q4L Molded Case Circuit Breaker, 240 VAC, 400 A, 25 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ Q4L2400 Type Q4L Molded Case Circuit Breaker, 240 VAC, 400 A, 25 kA Interrupt, 2 Poles
SKU282336
MFGR #Q4L2400
$/ea
Square D Q4L2400 MOLDED CASE CIRCUIT BREAKER 240V 400A,240 V AC,400 A,50/60 Hz,Molded Case Circuit Breaker,Q4-Frame,Thermal Magnetic,UL Listed
Square D Q4L2400 MOLDED CASE CIRCUIT BREAKER 240V 400A,240 V AC,400 A,50/60 Hz,Molded Case Circuit Breaker,Q4-Frame,Thermal Magnetic,UL Listed
Alternate Catalog Number Q4L2400 ARRA Compliant N Buy American Compliant N Catalog Number Q4L2400 Connection AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE Connection Type Line/Load Lug Country of Origin MX Currency USD Depth 5.84 in Dimensions 11 in H x 6 in W x 5.8 in D EU RoHS Indicator Y Frame Q4 Frequency Rating 50/60 Hz Gross Volume Per Pack 1860.93 Gross Volume per Pack Metric 30495.06 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0660 lb Gross Weight per Pack Metric 6.60 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 23.1000 in Height [Metric] 23.1000 cm Item Group 00933 Length 43.9000 in Length [Metric] 43.9000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434365&lang=en-us Mounting Type Surface Number Of Poles 2 Operating Temperature 40 °C Phase 1 pH Returnable Y Standard UL LISTED Temperature Rating 40 °C Trip Range 2000 A, 400 A, 4000 A Type MOLDED CASE CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590164924 UPC 12 785901649243 Warranty Description Contractual Warranty:18 months Width 29.0000 in Width [Metric] 29.0000 cm Wire Size (1) 1 AWG to 600 kcmil, (2) 1 AWG to 250 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 400 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC UNIT MOUNT Thermal magnetic molded case circuit breakers are the most common overcurrent protection devices Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions Thermal magnetic circuit breakers use bimetals and electromagnetic assemblies to provide overcurrent protection Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads Unit mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | Q4L2400 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | Q4L2400 |
| Connection | AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 5.84 in |
| Dimensions | 11 in H x 6 in W x 5.8 in D |
| EU RoHS Indicator | Y |
| Frame | Q4 |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1860.93 |
| Gross Volume per Pack Metric | 30495.06 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0660 lb |
| Gross Weight per Pack Metric | 6.60 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 23.1000 in |
| Height [Metric] | 23.1000 cm |
| Item Group | 00933 |
| Length | 43.9000 in |
| Length [Metric] | 43.9000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434365&lang=en-us |
| Mounting Type | Surface |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL LISTED |
| Temperature Rating | 40 °C |
| Trip Range | 2000 A, 400 A, 4000 A |
| Type | MOLDED CASE CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590164924 |
| UPC 12 | 785901649243 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.0000 in |
| Width [Metric] | 29.0000 cm |
| Wire Size | (1) 1 AWG to 600 kcmil, (2) 1 AWG to 250 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 400 A |
| Interrupt Rating | 25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| UNIT MOUNT |
| Thermal magnetic molded case circuit breakers are the most common overcurrent protection devices |
| Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions |
| Thermal magnetic circuit breakers use bimetals and electromagnetic assemblies to provide overcurrent protection |
| Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads |
| Unit mounting |
