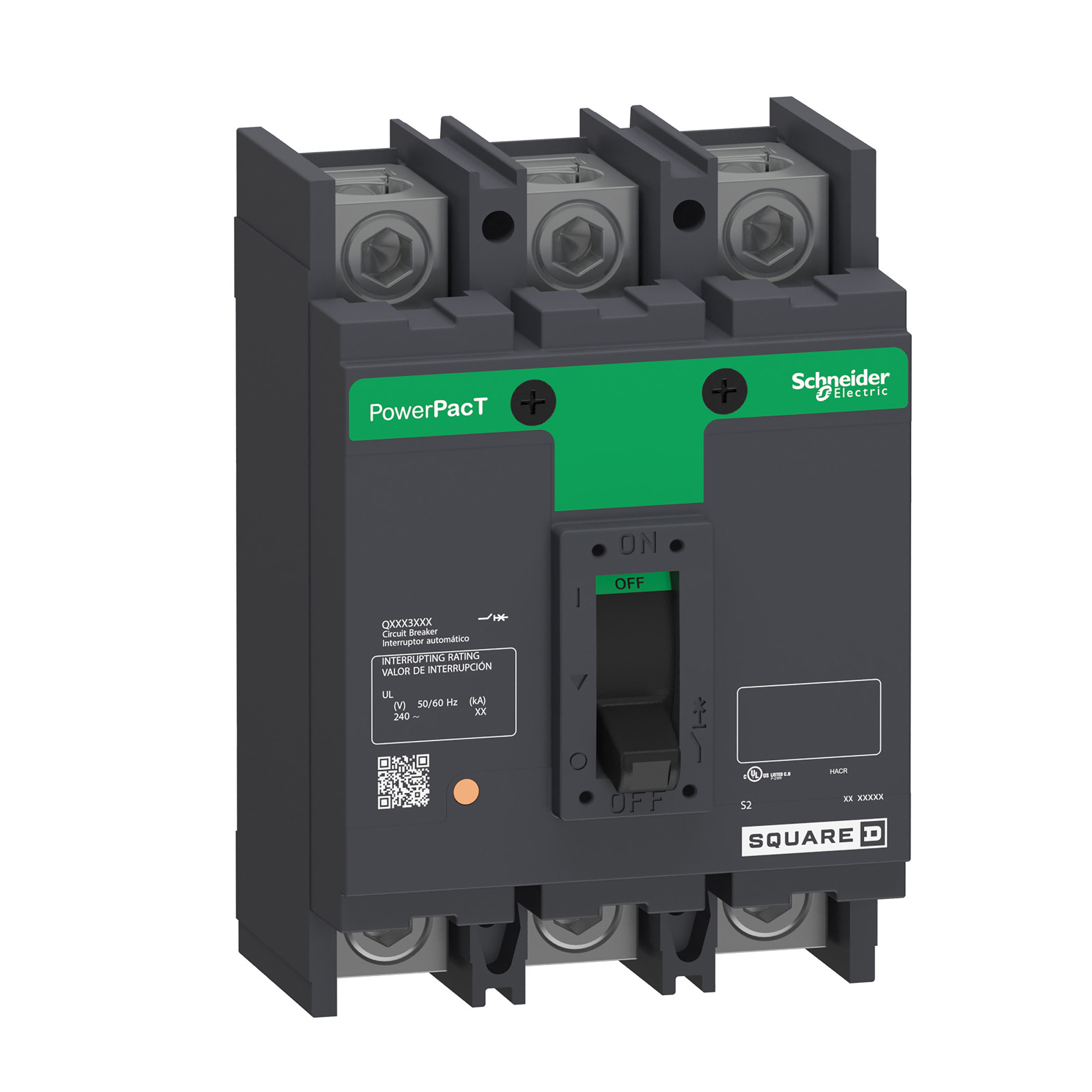

Square D™ PowerPact™ QJP32125TM Molded Case Circuit Breaker, 208Y/120/240 VAC, 125 A, 100 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
Molded Case Circuit Breakers
PDW~6413639
MFG #: QJP32125TM
Square D™
0.00000
/ ea
Square D™ PowerPact™ Molded Case Circuit Breaker, 208Y/120/240 VAC, 125 A, 50/60 Hz Frequency, 100 kA Interrupt, Q Frame, Thermal/Magnetic Trip, 1200 to 2400 A Trip, 3 Pole, 3 ph, Load Lug Connection, 4 AWG to 300 kcmil Al/Cu Wire, NEMA AB1 Enclosure, Unit Mounting, -13 to 158 deg F, 104 deg F, 6.47 in H x 4.5 in W x 3.93 in D Dimensions
- 360 Degree View URL - index.html?pid=11003&id=10003021360Den&ext=webp(360 Degree View URL)
- Brochure URL - 499f7f379380b8cd96dea3174d2508a0dec5af5b.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - 571b4249d2cdbb21a8450a3c7d48ca98f66b6f3a.pdf(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_PAF8I7QLMRU3DXS0.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_2VAQN7Z49DIOCR0K.zip(Tech Drawing URL)
- User Manual URL - 11003_JMU0OAKTBFQX8Y1R.pdf(User Manual URL)
- Applications
- Features
| Overcurrent Protection and Switching On AC System Applications |
| Studs on on (I) end with nuts and washers |
