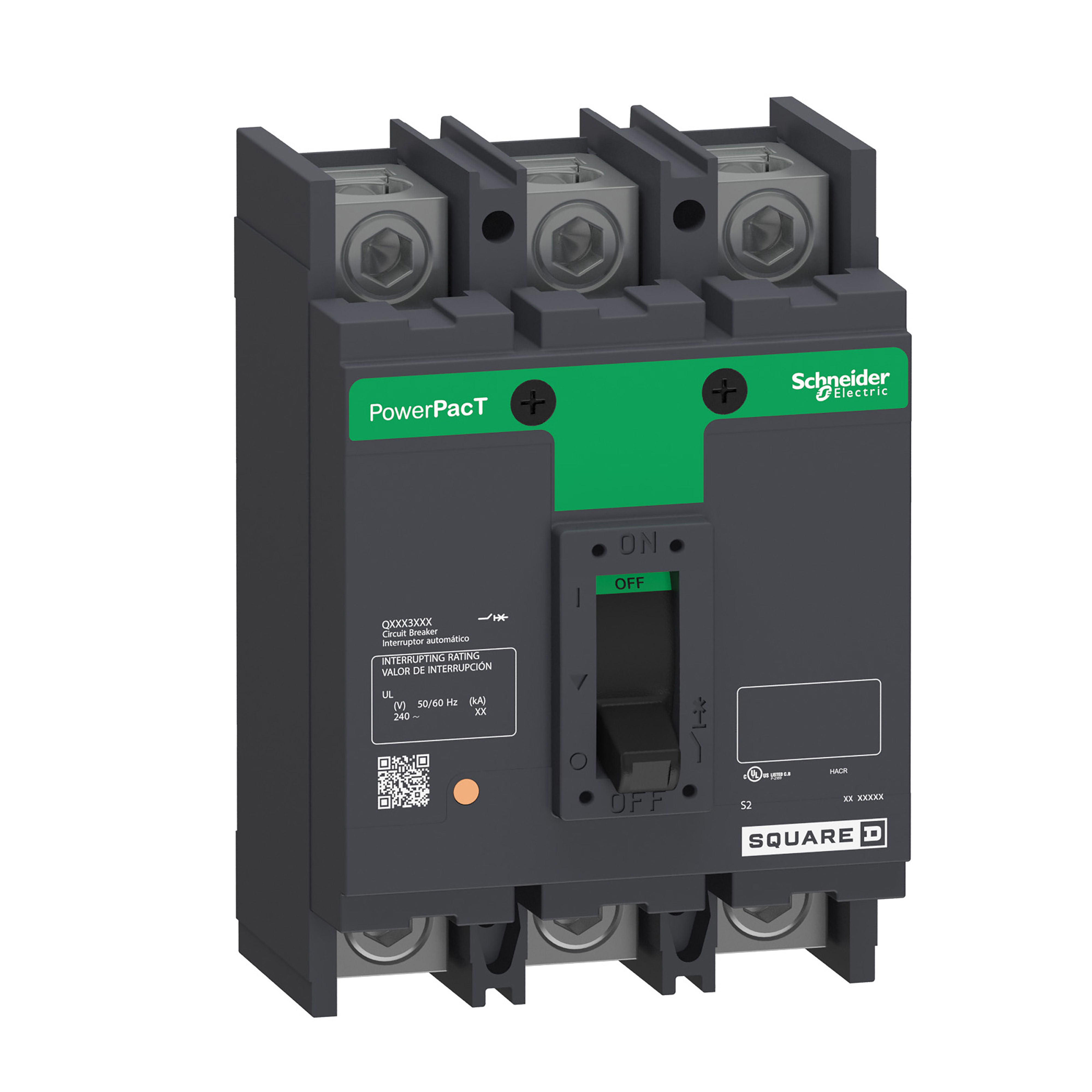

Square D™ PowerPact™ QGP32090TM Molded Case Circuit Breaker, 240 VAC, 90 A, 65 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
Molded Case Circuit Breakers
PDW~6413575
MFG #: QGP32090TM
Square D™
0.00000
/ ea
Square D™ PowerPact™ Molded Case Circuit Breaker, 240 VAC, 90 A, 50/60 Hz Frequency, 65 kA Interrupt, Q Frame, Thermal/Magnetic Trip, 1000 to 1800 A Trip, 3 Pole, 3 ph, Load Lug Connection, 4 AWG to 300 kcmil Al/Cu Wire, NEMA AB1 Enclosure, Unit Mounting, -13 to 158 deg F, 104 deg F, 6.47 in H x 4.5 in W x 3.93 in D Dimensions
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=10864492360Den&ext=webp(360 Degree View URL)
- Brochure URL - 499f7f379380b8cd96dea3174d2508a0dec5af5b.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - 571b4249d2cdbb21a8450a3c7d48ca98f66b6f3a.pdf(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_XJP51DQ3UYH4EIGM.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_26UIN9MHOQ3EAJGD.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_2VAQN7Z49DIOCR0K.zip(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=48996-020-01.dxf(Tech Drawing URL)
- User Manual URL - files?p_enDocType=User guide&p_File_Name=0600IB1201.pdf(User Manual URL)
- User Manual URL - 11003_JMU0OAKTBFQX8Y1R.pdf(User Manual URL)
- User Manual URL - 11003_9SGDX3LRQ0IF5U4T.pdf(User Manual URL)
- Applications
- Features
| Overcurrent Protection and Switching On AC System Applications |
| Studs on on (I) end with nuts and washers |
