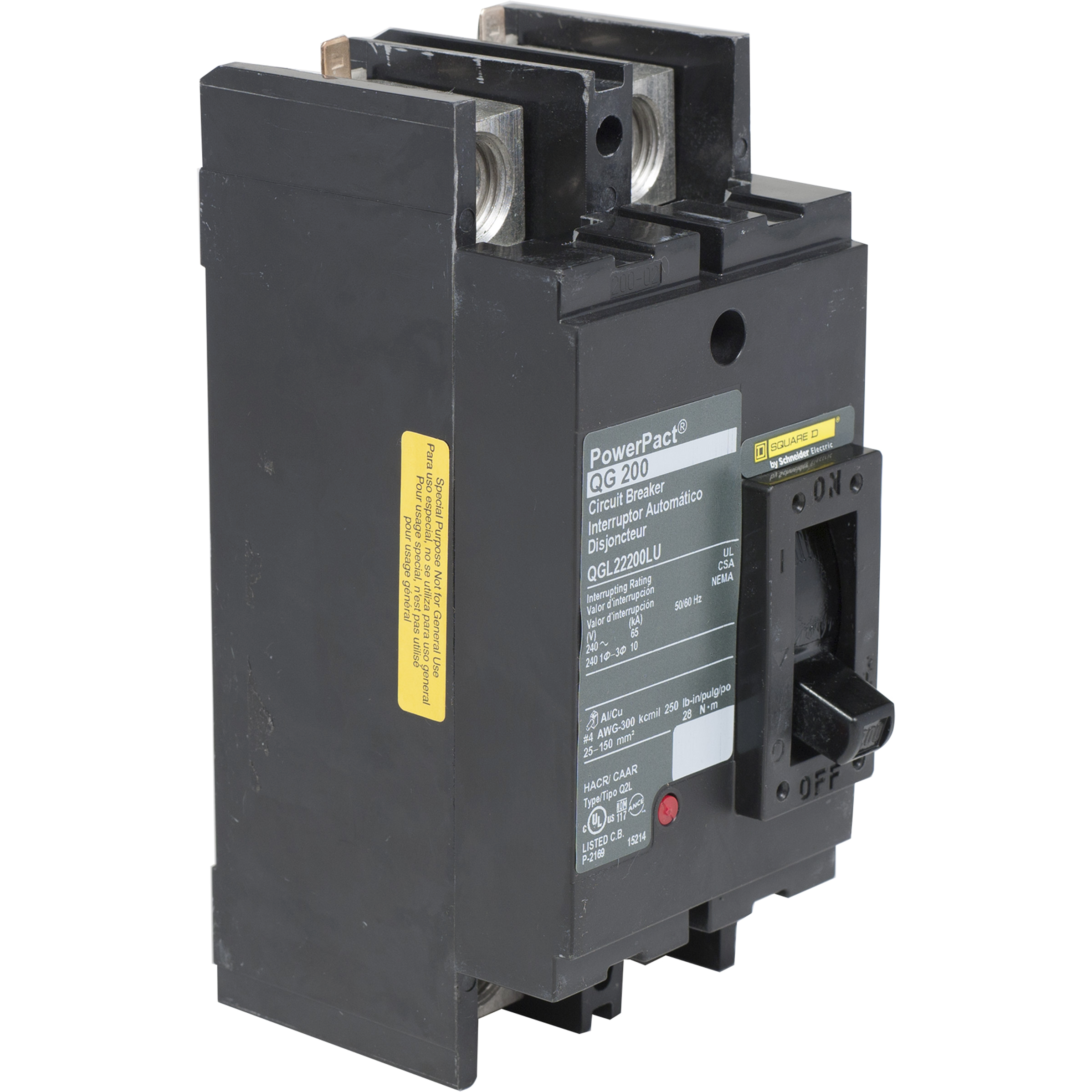

Square D™ PowerPact™ QGL22200LU Type QG Molded Case Circuit Breaker, 240 VAC, 200 A, 65 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ QGL22200LU Type QG Molded Case Circuit Breaker, 240 VAC, 200 A, 65 kA Interrupt, 2 Poles
SKU968509
MFGR #QGL22200LU
Your Cost: $1,227.07/ea
List: Square D QGL22200LU MOLDED CASE CIRCUIT BREAKER 240V 200A,200 A,200 A,240 V AC,240 V AC,65 kA 240 V AC,2P,G,Thermal Magnetic,UL Listed,circuit breaker,unit mount
Square D QGL22200LU MOLDED CASE CIRCUIT BREAKER 240V 200A,200 A,200 A,240 V AC,240 V AC,65 kA 240 V AC,2P,G,Thermal Magnetic,UL Listed,circuit breaker,unit mount
Actuator Type Toggle Alternate Catalog Number QGL22200LU ARRA Compliant N Buy American Compliant N Catalog Number QGL22200LU Connection LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-LUGS LINE AWG 4...300 KCMIL ALUMINIUM/COPPER Connection Type Line/Load Lugs Country of Origin MX Currency USD Dimensions 6.47 in H x 3 in W x 3.93 in D EU RoHS Indicator Y Frame Q Series Frequency Rating 50/60 Hz Gross Volume Per Pack 244.75 Gross Volume per Pack Metric 4010.72 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.3700 lb Gross Weight per Pack Metric 1.53 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 12.7000 in Height [Metric] 12.7000 cm Item Group 00005 Length 22.6060 in Length [Metric] 22.6060 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435987&lang=en-us Mounting Type Unit Number Of Poles 2 Returnable N Standard IEC-CSA-UL LISTED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 No. 5-02IEC 60947-2PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Substitute Product Catalog Number QBPA Temperature Rating 104 °F Trip Range 1200 to 2400 A Type Type QG UNSPSC 39121601 UPC 11 78590142463 UPC 12 785901424635 Warranty Description Contractual Warranty:18 months Width 13.9700 in Width [Metric] 13.9700 cm Wire Size 4 AWG to 300 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 A Interrupt Rating 65 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC UNIT MOUNT Field installable handle padlock attachment available for locking in ON or OFF position and may be used with available mechanical interlocks
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | QGL22200LU |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QGL22200LU |
| Connection | LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-LUGS LINE AWG 4...300 KCMIL ALUMINIUM/COPPER |
| Connection Type | Line/Load Lugs |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.47 in H x 3 in W x 3.93 in D |
| EU RoHS Indicator | Y |
| Frame | Q Series |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 244.75 |
| Gross Volume per Pack Metric | 4010.72 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.3700 lb |
| Gross Weight per Pack Metric | 1.53 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 12.7000 in |
| Height [Metric] | 12.7000 cm |
| Item Group | 00005 |
| Length | 22.6060 in |
| Length [Metric] | 22.6060 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435987&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 2 |
| Returnable | N |
| Standard | IEC-CSA-UL LISTED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 No. 5-02IEC 60947-2PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Substitute Product Catalog Number | QBPA |
| Temperature Rating | 104 °F |
| Trip Range | 1200 to 2400 A |
| Type | Type QG |
| UNSPSC | 39121601 |
| UPC 11 | 78590142463 |
| UPC 12 | 785901424635 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 13.9700 in |
| Width [Metric] | 13.9700 cm |
| Wire Size | 4 AWG to 300 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 A |
| Interrupt Rating | 65 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| UNIT MOUNT |
| Field installable handle padlock attachment available for locking in ON or OFF position and may be used with available mechanical interlocks |
