Square D™

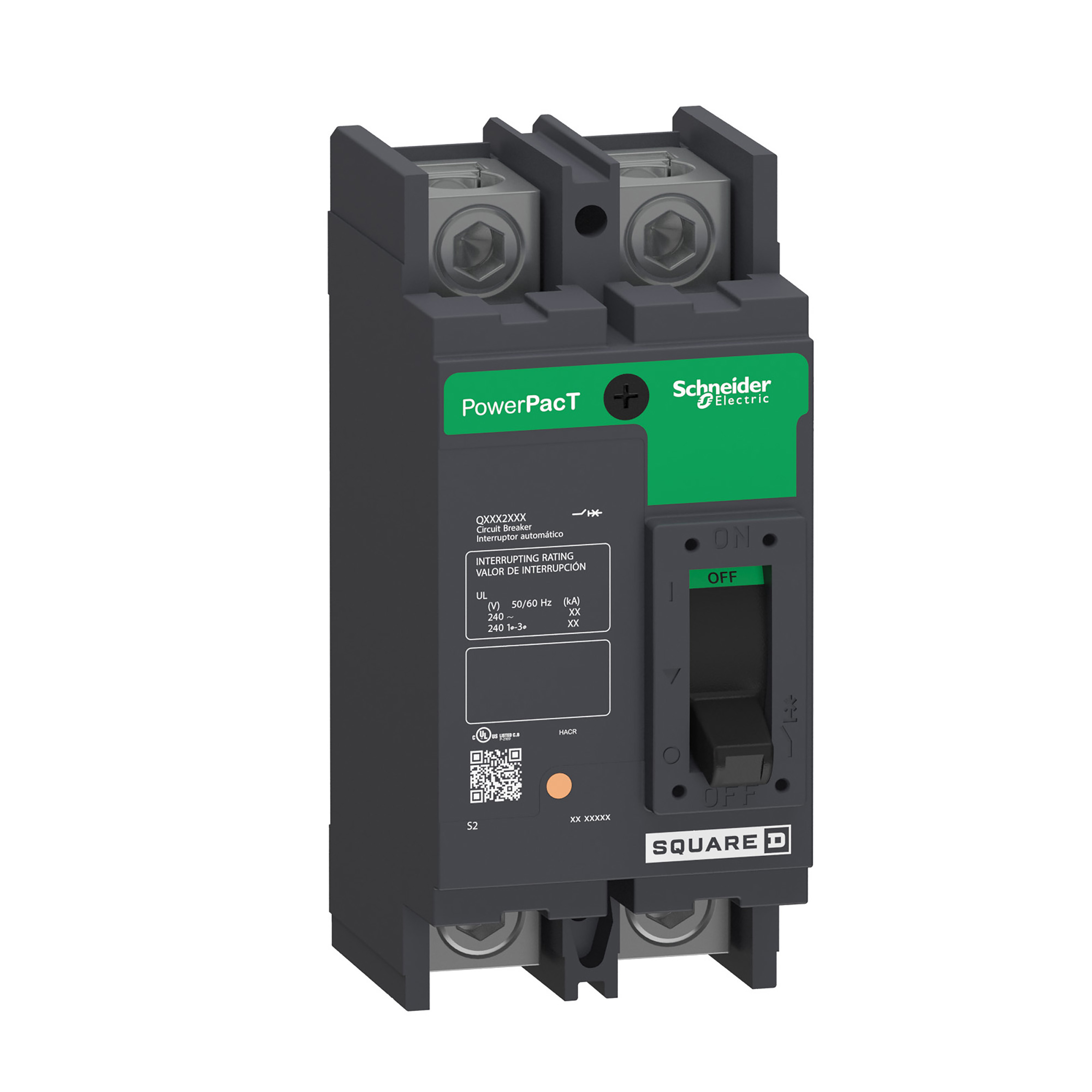

Square D™ PowerPact™ QDP Molded Case Circuit Breaker, 240 VAC, 100 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ PowerPact™ QDP Molded Case Circuit Breaker, 240 VAC, 100 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU288203
MFGR #QDP22100TM
Your Cost: $1,143.00/ea
Square D QDP22100TM MOLDED CASE CIRCUIT BREAKER 240V 100A,100 A,240 V,Circuit Breaker,Metering,Q-Frame
Square D QDP22100TM MOLDED CASE CIRCUIT BREAKER 240V 100A,100 A,240 V,Circuit Breaker,Metering,Q-Frame
Alternate Catalog Number QDP22100TM Application METERING ARRA Compliant N Buy American Compliant N Catalog Number QDP22100TM Connection LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-TERMINAL NUT LINE Connection Type Load Lug Country of Origin MX Currency USD Dimensions 6.47 in H x 3 in W x 3.93 in D EU RoHS Indicator Y Frame Q Series Frequency Rating 50/60 Hz Gross Volume Per Pack 307.40 Gross Volume per Pack Metric 5037.28 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.3000 lb Gross Weight per Pack Metric 1.46 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 13.9700 in Height [Metric] 139.7000 cm Item Group 00024 Length 20.5740 in Length [Metric] 205.7400 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253627&lang=en-us Mounting Type Bolt-On Number Of Poles 2 Returnable Y Series QDP Standard CSA-UL LISTED-IEC Standards UL ListedIECCSA CertifiedRoHS Compliant Substitute Product Catalog Number QBMIK Trip Range 1200 to 2400 A Type CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590170284 UPC 12 785901702849 Warranty Description Contractual Warranty:18 months Width 17.5260 in Width [Metric] 175.2600 cm Wire Size 4 AWG to 300 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC METERING UNIT MOUNT 1200 A hold, 2400 A trip current 25 kA at 240 VAC interrupt rating Lug at OFF end, stud with nut and washer at ON end Al/Cu wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QDP22100TM |
| Application | METERING |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QDP22100TM |
| Connection | LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-TERMINAL NUT LINE |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.47 in H x 3 in W x 3.93 in D |
| EU RoHS Indicator | Y |
| Frame | Q Series |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 307.40 |
| Gross Volume per Pack Metric | 5037.28 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.3000 lb |
| Gross Weight per Pack Metric | 1.46 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.9700 in |
| Height [Metric] | 139.7000 cm |
| Item Group | 00024 |
| Length | 20.5740 in |
| Length [Metric] | 205.7400 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253627&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Returnable | Y |
| Series | QDP |
| Standard | CSA-UL LISTED-IEC |
| Standards | UL ListedIECCSA CertifiedRoHS Compliant |
| Substitute Product Catalog Number | QBMIK |
| Trip Range | 1200 to 2400 A |
| Type | CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590170284 |
| UPC 12 | 785901702849 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 17.5260 in |
| Width [Metric] | 175.2600 cm |
| Wire Size | 4 AWG to 300 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Interrupt Rating | 25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| METERING |
| UNIT MOUNT |
| 1200 A hold, 2400 A trip current |
| 25 kA at 240 VAC interrupt rating |
| Lug at OFF end, stud with nut and washer at ON end |
| Al/Cu wire |
