Square D™
Square D™ PowerPact™ MJL36600 Molded Case Circuit Breaker, 600 VAC/250 VDC, 600 A, 25/65/100 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™

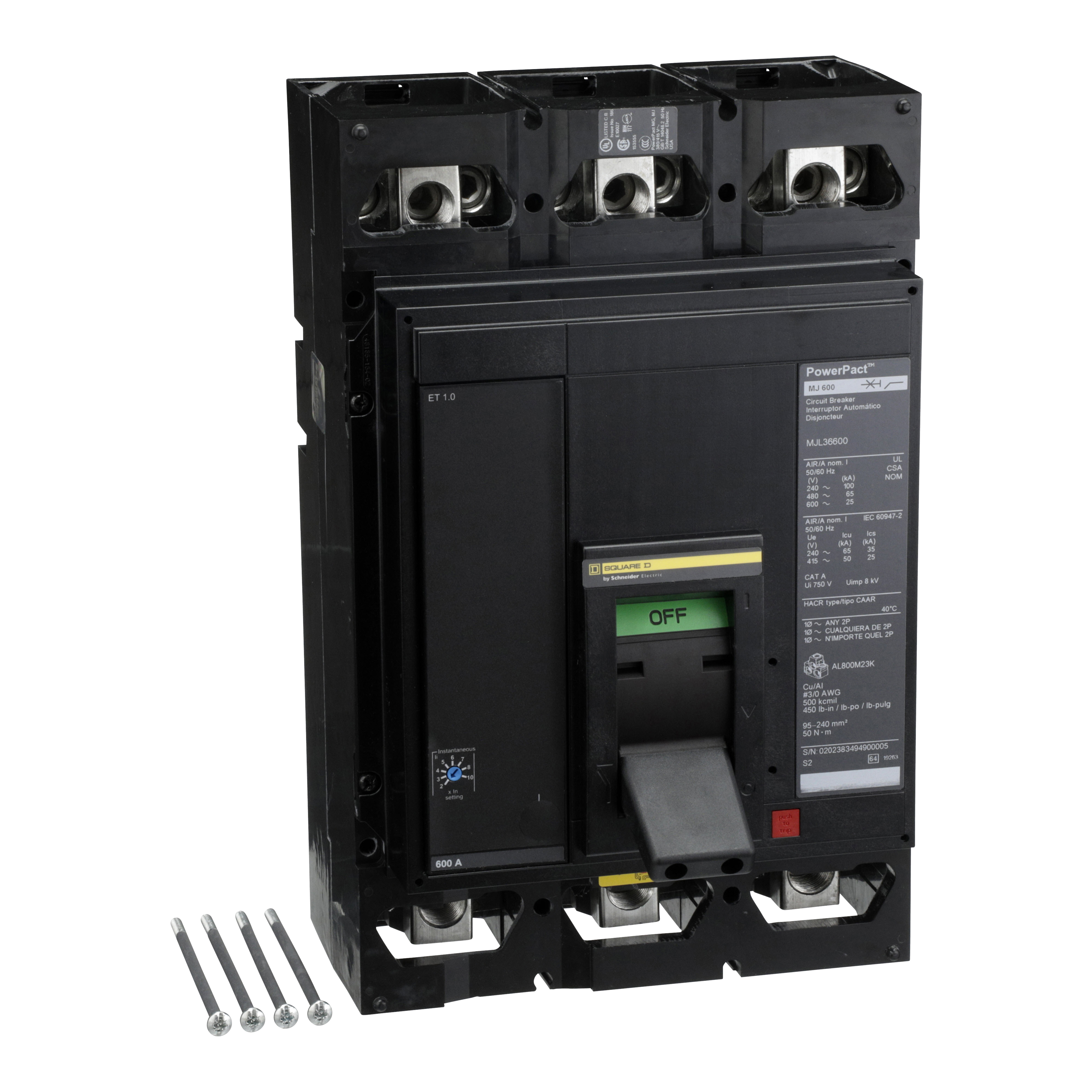

Square D™ PowerPact™ MJL36600 Molded Case Circuit Breaker, 600 VAC/250 VDC, 600 A, 25/65/100 kA Interrupt, 3 Poles
SKU519866
MFGR #MJL36600
Your Cost: $8,199.70/ea
List: Square D MJL36600 MOLDED CASE CIRCUIT BREAKER 600V 600A,100kA240Vac - 65kA480Vac - 25kA600Vac,12.80 in.,3,300-800A,40deg Celsius,50/60HZ,600 Vac/250 Vdc,600A,8.10 in.,8.30 in.,Ambient environment,Basic (ET1.0),Electronic,Electronic Trip Circuit Breaker,Lugs (ON and OFF ends),M-Frame,PowerPact M,Provides overload and short circuit protection,Three,UL Listed - CSA Certified - IEC Rated,Unit Mount,Various
Square D MJL36600 MOLDED CASE CIRCUIT BREAKER 600V 600A,100kA240Vac - 65kA480Vac - 25kA600Vac,12.80 in.,3,300-800A,40deg Celsius,50/60HZ,600 Vac/250 Vdc,600A,8.10 in.,8.30 in.,Ambient environment,Basic (ET1.0),Electronic,Electronic Trip Circuit Breaker,Lugs (ON and OFF ends),M-Frame,PowerPact M,Provides overload and short circuit protection,Three,UL Listed - CSA Certified - IEC Rated,Unit Mount,Various
Actuator ELECTRONIC Actuator Type Electrical Alternate Catalog Number MJL36600 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number MJL36600 Connection LUGS (ON AND OFF ENDS) Connection Type Lug Country of Origin MX Currency USD Dimensions 8.1 in L x 8.3 in W x 12.8 in H Environmental Conditions AMBIENT ENVIRONMENT EU RoHS Indicator Y Frame M Frequency Rating 50/60 Hz Gross Volume Per Pack 2305.80 Gross Volume per Pack Metric 37785.14 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 28.9500 lb Gross Weight per Pack Metric 13.13 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 26.6700 in Height [Metric] 26.6700 cm Item Group 01205 Length 46.4820 in Length [Metric] 46.4820 cm Material Various Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431117&lang=en-us Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Series MJL Standard UL LISTED - CSA CERTIFIED - IEC RATED Sub Brand PowerPact M Substitute Product Catalog Number S29370 Temperature Rating 40 °C Trip Range 300 to 800 A Type CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590162930 UPC 12 785901629306 Warranty Description Contractual Warranty:18 months Width 30.4800 in Width [Metric] 30.4800 cm Wire Size 3/0 AWG to 500 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 600 A Interrupt Rating 25 kA Trip Type Electronic Basic ET1.0 Voltage Rating 600 VAC/250 VDC VAC//VDC Distribution UNIT MOUNT Lugs (ON-OFF ends) 3/0 AWG to 500 kcmil copper/aluminum cable wire size 100 kA at 240 VAC, 65 kA at 480 VAC interrupt rating Unit mount
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | ELECTRONIC |
| Actuator Type | Electrical |
| Alternate Catalog Number | MJL36600 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | MJL36600 |
| Connection | LUGS (ON AND OFF ENDS) |
| Connection Type | Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 8.1 in L x 8.3 in W x 12.8 in H |
| Environmental Conditions | AMBIENT ENVIRONMENT |
| EU RoHS Indicator | Y |
| Frame | M |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 2305.80 |
| Gross Volume per Pack Metric | 37785.14 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 28.9500 lb |
| Gross Weight per Pack Metric | 13.13 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 26.6700 in |
| Height [Metric] | 26.6700 cm |
| Item Group | 01205 |
| Length | 46.4820 in |
| Length [Metric] | 46.4820 cm |
| Material | Various |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431117&lang=en-us |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Series | MJL |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED |
| Sub Brand | PowerPact M |
| Substitute Product Catalog Number | S29370 |
| Temperature Rating | 40 °C |
| Trip Range | 300 to 800 A |
| Type | CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590162930 |
| UPC 12 | 785901629306 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 30.4800 in |
| Width [Metric] | 30.4800 cm |
| Wire Size | 3/0 AWG to 500 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 600 A |
| Interrupt Rating | 25 kA |
| Trip Type | Electronic Basic ET1.0 |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| Distribution |
| UNIT MOUNT |
| Lugs (ON-OFF ends) |
| 3/0 AWG to 500 kcmil copper/aluminum cable wire size |
| 100 kA at 240 VAC, 65 kA at 480 VAC interrupt rating |
| Unit mount |
