Square D™

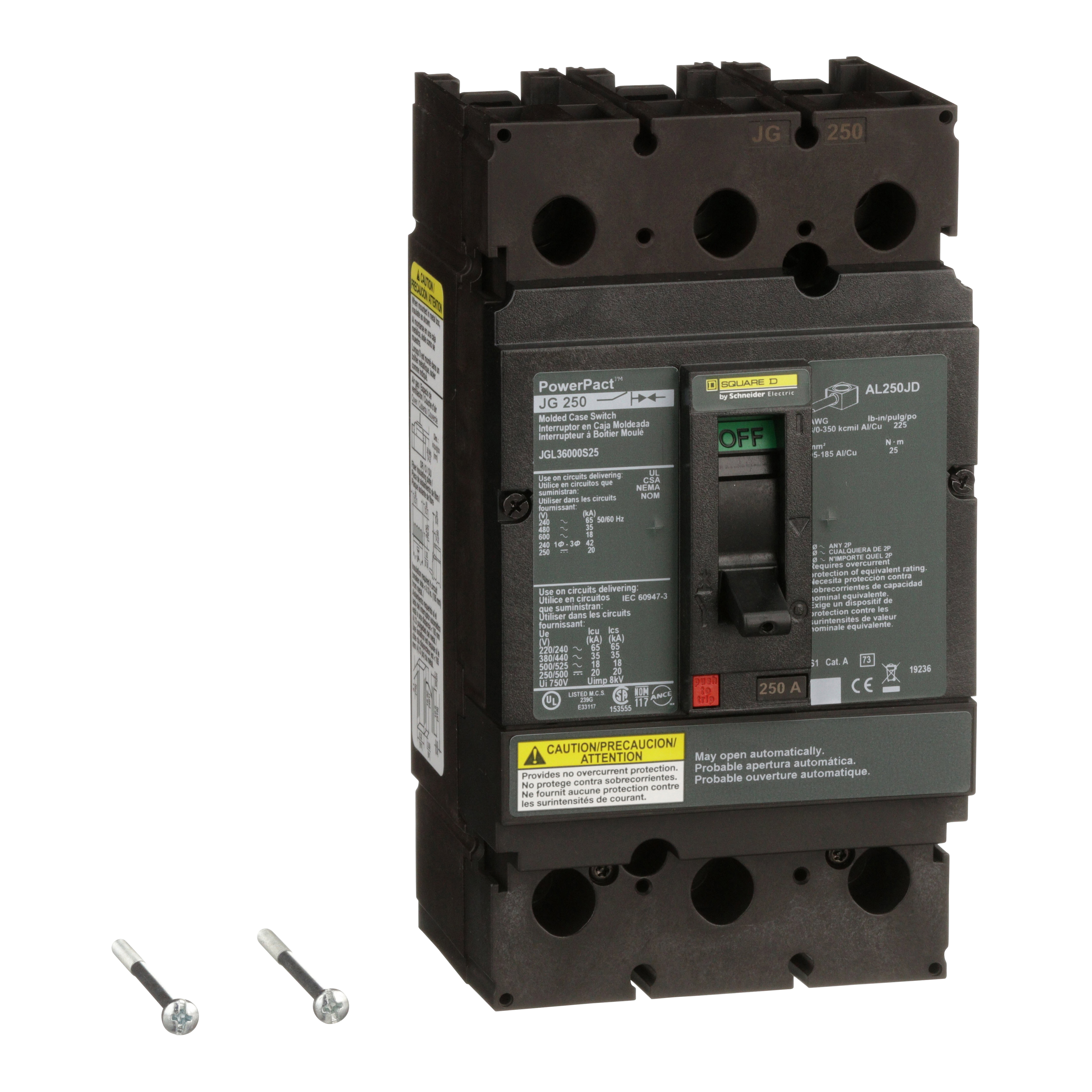

Square D™ PowerPact™ JGL Molded Case Circuit Breaker, 600 VAC/250 VDC, 250 A, 18 to 65 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ PowerPact™ JGL Molded Case Circuit Breaker, 600 VAC/250 VDC, 250 A, 18 to 65 kA Interrupt, 3 Poles
SKU355530
MFGR #JGL36000S25
Your Cost: $1,288.66/ea
List: Square D JGL36000S25 AUTOMATIC MOLDED CASE SWITCH 600V 250A,250 A,3P,600 V,Automatic molded case switch,Powerpact,UL,unit mount
Square D JGL36000S25 AUTOMATIC MOLDED CASE SWITCH 600V 250A,250 A,3P,600 V,Automatic molded case switch,Powerpact,UL,unit mount
Alternate Catalog Number JGL36000S25 ARRA Compliant N Buy American Compliant N Catalog Number JGL36000S25 Connection AWG 3/0...350 KCMIL ALUMINIUM/COPPER),LUGS LINE-LUGS LOAD Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 7.52 in H x 4.12 in W x 5 in D EU RoHS Indicator Y Frame J Gross Volume Per Pack 372.60 Gross Volume per Pack Metric 6105.80 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.8500 lb Gross Weight per Pack Metric 2.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 18.7960 in Height [Metric] 18.7960 cm Item Group 01115 Length 22.3520 in Length [Metric] 22.3520 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425613&lang=en-us Mounting UNIT MOUNT Mounting Type Unit Number Of Poles 3 Returnable Y Size 3P Standard UL Sub Brand POWERPACT Substitute Product Catalog Number S29370 Temperature Rating 104 °F Trip Range 3125 A Type Automatic UNSPSC 39121601 UPC 11 78590159886 UPC 12 785901598862 Warranty Description Contractual Warranty:18 months Width 14.7320 in Width [Metric] 14.7320 cm Wire Size 3/0 AWG to 350 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 250 A Interrupt Rating 18/65 kA Trip Type Magnetic Voltage Rating 600 VAC LUGS LOAD-LUGS LINE 20 kA at 250 VDC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 500 VDC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | JGL36000S25 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | JGL36000S25 |
| Connection | AWG 3/0...350 KCMIL ALUMINIUM/COPPER),LUGS LINE-LUGS LOAD |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7.52 in H x 4.12 in W x 5 in D |
| EU RoHS Indicator | Y |
| Frame | J |
| Gross Volume Per Pack | 372.60 |
| Gross Volume per Pack Metric | 6105.80 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.8500 lb |
| Gross Weight per Pack Metric | 2.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 18.7960 in |
| Height [Metric] | 18.7960 cm |
| Item Group | 01115 |
| Length | 22.3520 in |
| Length [Metric] | 22.3520 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425613&lang=en-us |
| Mounting | UNIT MOUNT |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Returnable | Y |
| Size | 3P |
| Standard | UL |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29370 |
| Temperature Rating | 104 °F |
| Trip Range | 3125 A |
| Type | Automatic |
| UNSPSC | 39121601 |
| UPC 11 | 78590159886 |
| UPC 12 | 785901598862 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 14.7320 in |
| Width [Metric] | 14.7320 cm |
| Wire Size | 3/0 AWG to 350 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 250 A |
| Interrupt Rating | 18/65 kA |
| Trip Type | Magnetic |
| Voltage Rating | 600 VAC |
| LUGS LOAD-LUGS LINE |
| 20 kA at 250 VDC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 500 VDC |
