Square Dā¢

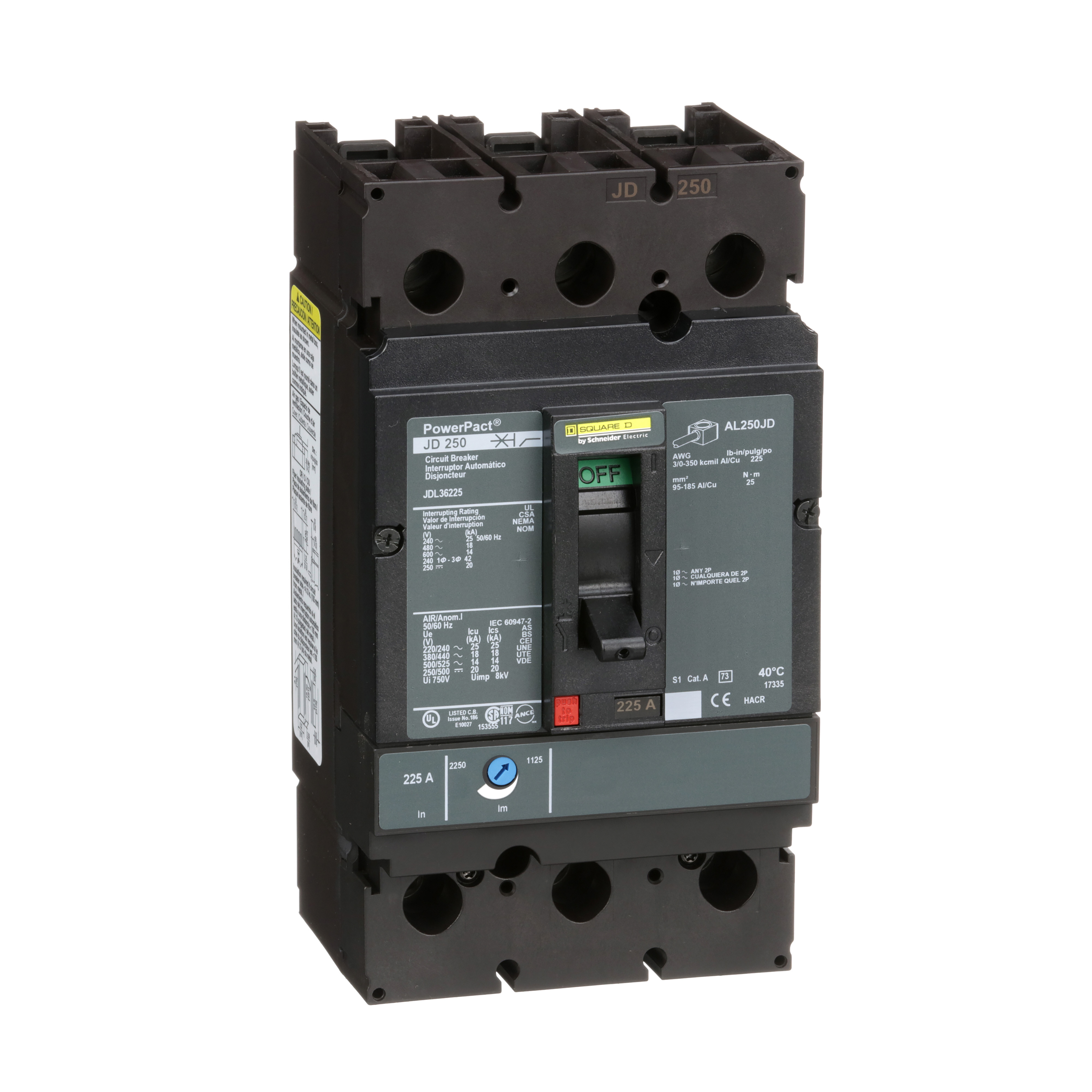

Square D⢠PowerPact⢠JDL36225 Molded Case Circuit Breaker, 600 VAC/250 VDC, 225 A, 14/18/20/25 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square Dā¢
Square D⢠PowerPact⢠JDL36225 Molded Case Circuit Breaker, 600 VAC/250 VDC, 225 A, 14/18/20/25 kA Interrupt, 3 Poles
SKU259796
MFGR #JDL36225
$/ea
Square D JDL36225 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 225A,-13F and 158F (-25 C and +70 C),104 mm,191 mm,225A,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,86 mm,J-Frame,Line Lug - Load Lug,Low 1125A - High 2250A,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Square D JDL36225 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 225A,-13F and 158F (-25 C and +70 C),104 mm,191 mm,225A,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,86 mm,J-Frame,Line Lug - Load Lug,Low 1125A - High 2250A,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Actuator Toggle Actuator Type Handle Alternate Catalog Number JDL36225 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number JDL36225 Connection LINE: LUG - LOAD: LUG Connection Type Line/Load Lug Country of Origin CA Currency USD Dimensions 86 mm L x 104 mm W x 191 mm H EU RoHS Indicator Y Frame J Frequency Rating 50/60 Hz Gross Volume Per Pack 378.45 Gross Volume per Pack Metric 6201.66 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0220 lb Gross Weight per Pack Metric 2.22 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 14.7320 in Height [Metric] 14.7320 cm Item Group 01110 Length 22.0980 in Length [Metric] 22.0980 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425199&lang=en-us Mounting Type Unit Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Phase 3 pH Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number PDC3JD20 Temperature Rating -13 to 158 °F Trip Range 1125 to 2250 A Type Type JDL Standard UNSPSC 39121616 UPC 11 78590162317 UPC 12 785901623175 Warranty Description Contractual Warranty:18 months Width 19.0500 in Width [Metric] 19.0500 cm Wire Size 3/0 AWG to 350 kcmil Stock Status NORMALLY STOCKED Brand Square D⢠Manufacturer Schneider Electric Amperage Rating 225 A Interrupt Rating 14/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC Distribution UNIT MOUNT 20 kA at 250 VDC, 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC interrupt rating 3/0 AWG to 350 kcmil aluminum copper wire 1125 A hold, 2250 A trip 1125 A hold, 2250 A trip Standard
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Handle |
| Alternate Catalog Number | JDL36225 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | JDL36225 |
| Connection | LINE: LUG - LOAD: LUG |
| Connection Type | Line/Load Lug |
| Country of Origin | CA |
| Currency | USD |
| Dimensions | 86 mm L x 104 mm W x 191 mm H |
| EU RoHS Indicator | Y |
| Frame | J |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 378.45 |
| Gross Volume per Pack Metric | 6201.66 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0220 lb |
| Gross Weight per Pack Metric | 2.22 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 14.7320 in |
| Height [Metric] | 14.7320 cm |
| Item Group | 01110 |
| Length | 22.0980 in |
| Length [Metric] | 22.0980 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425199&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | PDC3JD20 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 1125 to 2250 A |
| Type | Type JDL Standard |
| UNSPSC | 39121616 |
| UPC 11 | 78590162317 |
| UPC 12 | 785901623175 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.0500 in |
| Width [Metric] | 19.0500 cm |
| Wire Size | 3/0 AWG to 350 kcmil |
| Stock Status | NORMALLY STOCKED |
| Brand | Square D⢠|
| Manufacturer | Schneider Electric |
| Amperage Rating | 225 A |
| Interrupt Rating | 14/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| Distribution |
| UNIT MOUNT |
| 20 kA at 250 VDC, 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC interrupt rating |
| 3/0 AWG to 350 kcmil aluminum copper wire |
| 1125 A hold, 2250 A trip |
| 1125 A hold, 2250 A trip |
| Standard |
