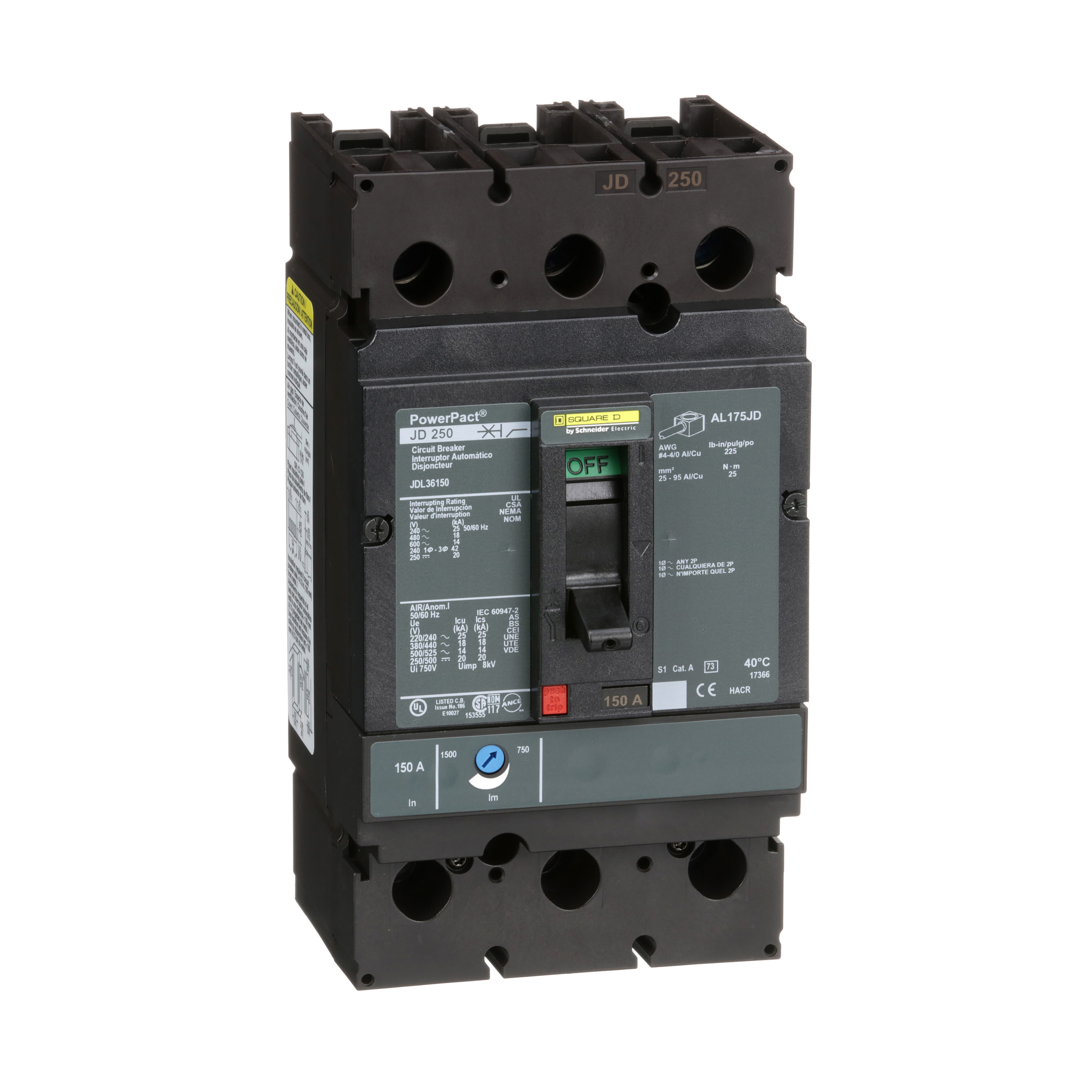

Square D™ PowerPact™ JDL36150 Molded Case Circuit Breaker, 600 VAC/250 VDC, 150 A, 14/18/20/25 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ JDL36150 Molded Case Circuit Breaker, 600 VAC/250 VDC, 150 A, 14/18/20/25 kA Interrupt, 3 Poles
SKU237221
MFGR #JDL36150
Your Cost: $2,367.30/ea
List: Square D JDL36150 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 150A,-13F and 158F (-25 C and +70 C),104 mm,150A,191 mm,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,86 mm,J-Frame,Line Lug - Load Lug,Low 750A - High 1500A,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Square D JDL36150 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 150A,-13F and 158F (-25 C and +70 C),104 mm,150A,191 mm,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,86 mm,J-Frame,Line Lug - Load Lug,Low 750A - High 1500A,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Actuator Type Handle Alternate Catalog Number JDL36150 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number JDL36150 Connection LINE: LUG - LOAD: LUG Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 86 mm L x 104 mm W x 191 mm H EU RoHS Indicator Y Frame J Frequency Rating 50/60 Hz Gross Volume Per Pack 352.24 Gross Volume per Pack Metric 5772.16 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.8350 lb Gross Weight per Pack Metric 2.22 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 14.2240 in Height [Metric] 14.2240 cm Item Group 01110 Length 21.5900 in Length [Metric] 21.5900 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425101&lang=en-us Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Phase 3 pH Returnable Y Series JDL Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number PDC3JD20 Temperature Rating -13 to 158 °F Trip Range 750 A Low, 1500 A High Type CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590195583 UPC 12 785901955832 Warranty Description Contractual Warranty:18 months Width 18.7960 in Width [Metric] 18.7960 cm Wire Size 4 to 4/0 AWG Stock Status NORMALLY STOCKED Brand Square D™ Manufacturer Schneider Electric Amperage Rating 150 A Interrupt Rating 14/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC Distribution UNIT MOUNT Unit mount 4 to 4/0 AWG copper/aluminum 25 kA at 240 VAC, 18 kA at 480 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | JDL36150 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | JDL36150 |
| Connection | LINE: LUG - LOAD: LUG |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 86 mm L x 104 mm W x 191 mm H |
| EU RoHS Indicator | Y |
| Frame | J |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 352.24 |
| Gross Volume per Pack Metric | 5772.16 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.8350 lb |
| Gross Weight per Pack Metric | 2.22 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 14.2240 in |
| Height [Metric] | 14.2240 cm |
| Item Group | 01110 |
| Length | 21.5900 in |
| Length [Metric] | 21.5900 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425101&lang=en-us |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Phase | 3 pH |
| Returnable | Y |
| Series | JDL |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | PDC3JD20 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 750 A Low, 1500 A High |
| Type | CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590195583 |
| UPC 12 | 785901955832 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 18.7960 in |
| Width [Metric] | 18.7960 cm |
| Wire Size | 4 to 4/0 AWG |
| Stock Status | NORMALLY STOCKED |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 150 A |
| Interrupt Rating | 14/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| Distribution |
| UNIT MOUNT |
| Unit mount |
| 4 to 4/0 AWG copper/aluminum |
| 25 kA at 240 VAC, 18 kA at 480 VAC interrupt rating |
