Square D™

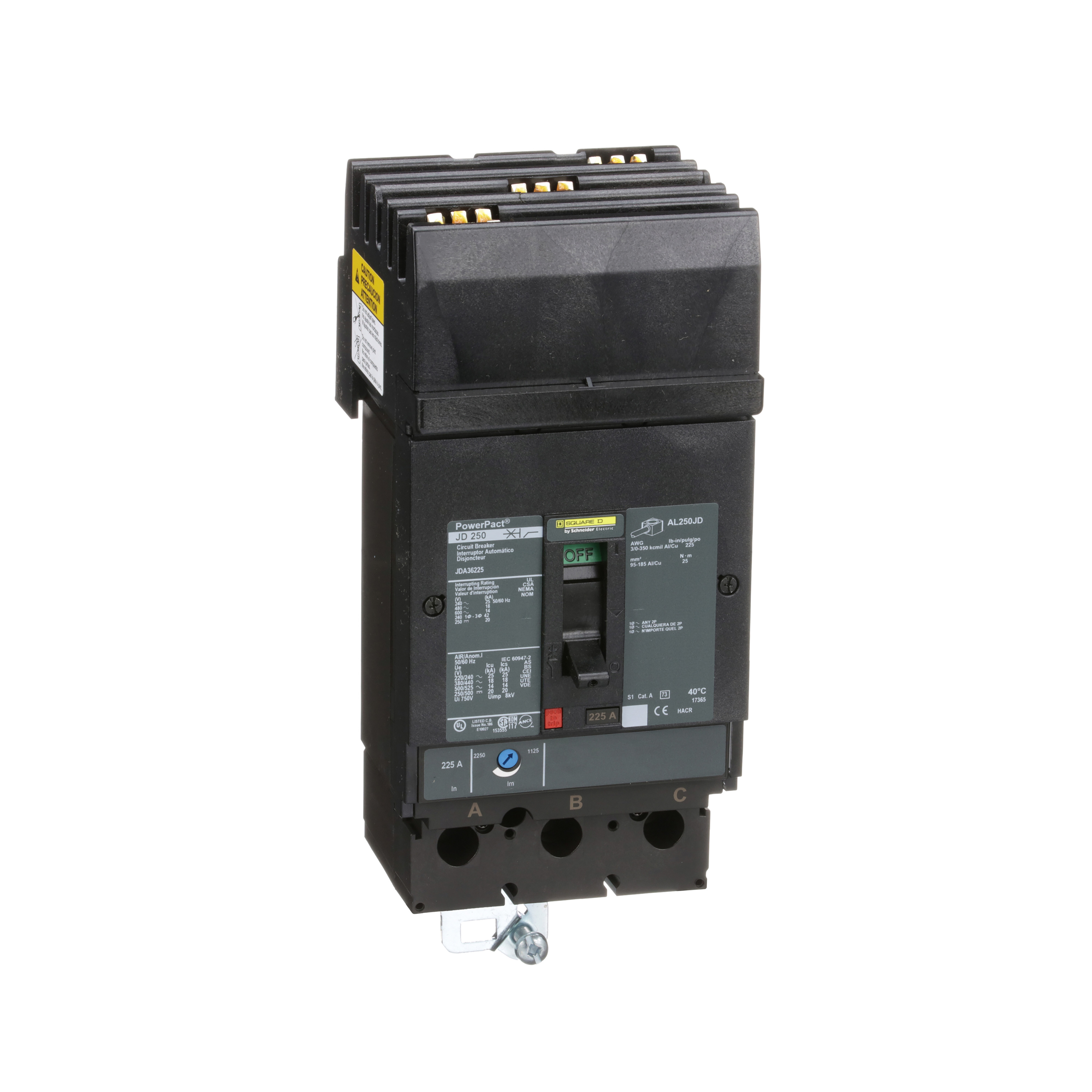

Square D™ PowerPact™ JDA36225 Molded Case Circuit Breaker, 600 VAC/250 VDC, 225 A, 14/18/20/25 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ PowerPact™ JDA36225 Molded Case Circuit Breaker, 600 VAC/250 VDC, 225 A, 14/18/20/25 kA Interrupt, 3 Poles
SKU224177
MFGR #JDA36225
Your Cost: $1,827.28/ea
List: Square D JDA36225 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 225A,-13F and 158F (-25 C and +70 C),225A,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,J-Frame,Low 1125A - High 2250A,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Square D JDA36225 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 225A,-13F and 158F (-25 C and +70 C),225A,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,J-Frame,Low 1125A - High 2250A,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Alternate Catalog Number JDA36225 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number JDA36225 Connection I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC Connection Type I-Line® Lug Country of Origin MX Currency USD Dimensions 7.52 in H x 4.12 in W x 5 in D EU RoHS Indicator Y Frame J Frequency Rating 50/60 Hz Gross Volume Per Pack 926.25 Gross Volume per Pack Metric 15178.46 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 6.5900 lb Gross Weight per Pack Metric 2.99 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 15.2400 in Height [Metric] 15.2400 cm Item Group 01112 Length 37.5920 in Length [Metric] 37.5920 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=424989&lang=en-us Mounting Type Plug-On Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Phase 3 pH Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number S29386 Temperature Rating -13 to 158 °F Trip Range 1125 to 2250 A Type Type JDA UNSPSC 39121601 UPC 11 78590183416 UPC 12 785901834168 Warranty Description Contractual Warranty:18 months Width 21.5900 in Width [Metric] 21.5900 cm Wire Size 3/0 AWG to 350 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 225 A Interrupt Rating 14/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE PLUG-ON 25 kA at 240 VAC, 18 kA at 480 VAC interrupt rating I-Line® connection (ON end) - lugs (off end) ABC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | JDA36225 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | JDA36225 |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Connection Type | I-Line® Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7.52 in H x 4.12 in W x 5 in D |
| EU RoHS Indicator | Y |
| Frame | J |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 926.25 |
| Gross Volume per Pack Metric | 15178.46 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 6.5900 lb |
| Gross Weight per Pack Metric | 2.99 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 15.2400 in |
| Height [Metric] | 15.2400 cm |
| Item Group | 01112 |
| Length | 37.5920 in |
| Length [Metric] | 37.5920 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=424989&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29386 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 1125 to 2250 A |
| Type | Type JDA |
| UNSPSC | 39121601 |
| UPC 11 | 78590183416 |
| UPC 12 | 785901834168 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.5900 in |
| Width [Metric] | 21.5900 cm |
| Wire Size | 3/0 AWG to 350 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 225 A |
| Interrupt Rating | 14/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| 25 kA at 240 VAC, 18 kA at 480 VAC interrupt rating |
| I-Line® connection (ON end) - lugs (off end) ABC |
