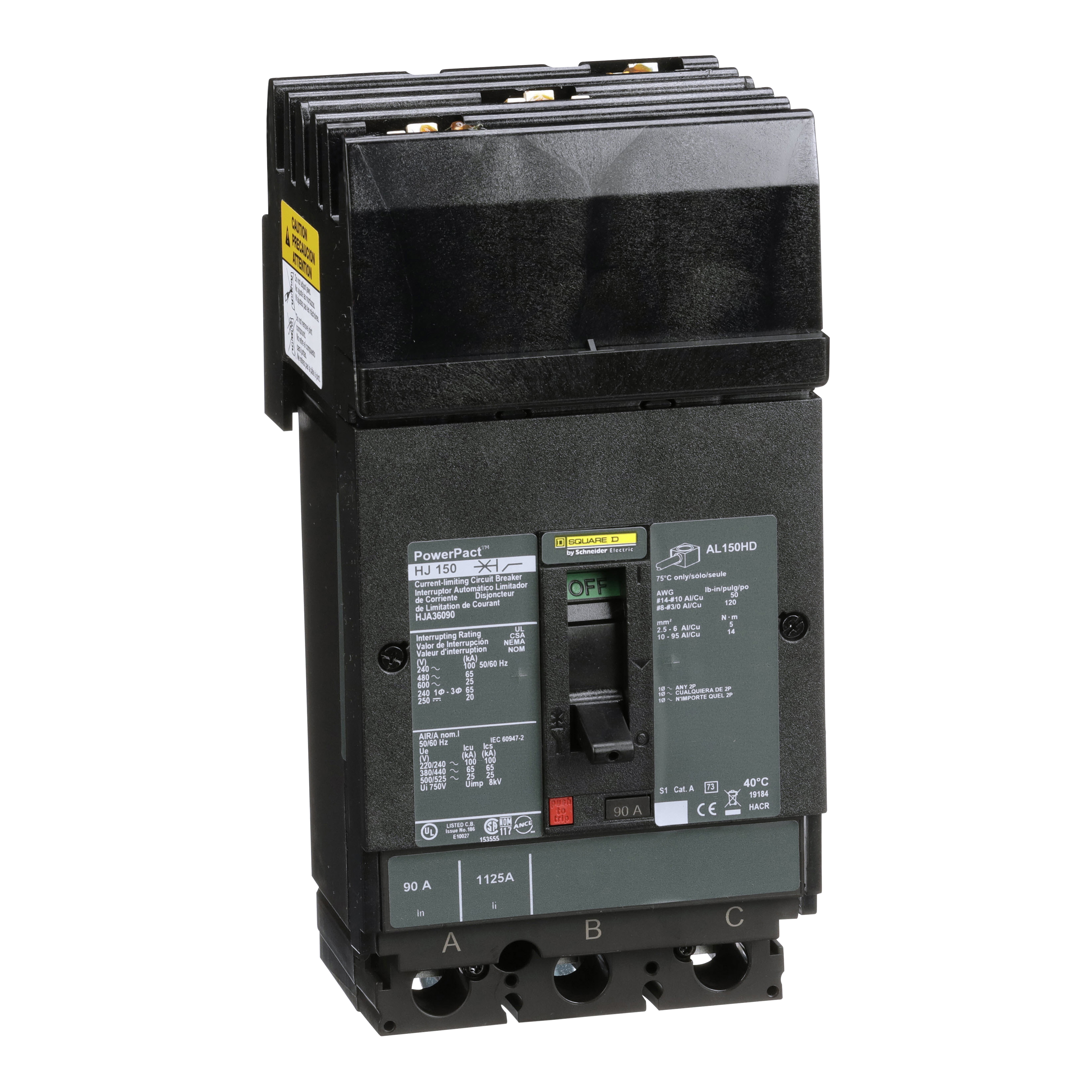

Square D™ PowerPact™ HJA36090 Molded Case Circuit Breaker, 600 VAC/250 VDC, 90 A, 20/25/65/100 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ HJA36090 Molded Case Circuit Breaker, 600 VAC/250 VDC, 90 A, 20/25/65/100 kA Interrupt, 3 Poles
SKU233426
MFGR #HJA36090
Your Cost: $1,418.11/ea
List: Square D HJA36090 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 90A,-13F and 158F (-25 C and +70 C),100kA240VAC - 65kA480VAC - 25kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,90A,H-Frame,Hold 800A - Trip 1450A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Square D HJA36090 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 90A,-13F and 158F (-25 C and +70 C),100kA240VAC - 65kA480VAC - 25kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,90A,H-Frame,Hold 800A - Trip 1450A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Actuator Toggle Alternate Catalog Number HJA36090 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number HJA36090 Connection I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC Connection Type I-Line™/Load Lug Country of Origin CA Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 719.78 Gross Volume per Pack Metric 11795.04 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.5300 lb Gross Weight per Pack Metric 2.51 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 15.5000 in Height [Metric] 15.5000 cm Item Group 01117 Length 38.1000 in Length [Metric] 38.1000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423477&lang=en-us Mounting Type Plug-On Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Phase 3 pH Returnable Y Series HJA Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number PDC3HD2 Temperature Rating -13 to 158 °F Trip Range 800 A Hold, 1450 A Type MOLDED CASE CIRCUIT BREAKER UNSPSC 39121616 UPC 11 78590150724 UPC 12 785901507246 Warranty Description Contractual Warranty:18 months Width 21.3000 in Width [Metric] 21.3000 cm Wire Size 14 to 3/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 90 A Interrupt Rating 20/25 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC Distribution I-LINE PLUG-ON
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | HJA36090 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HJA36090 |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Connection Type | I-Line™/Load Lug |
| Country of Origin | CA |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 719.78 |
| Gross Volume per Pack Metric | 11795.04 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.5300 lb |
| Gross Weight per Pack Metric | 2.51 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 15.5000 in |
| Height [Metric] | 15.5000 cm |
| Item Group | 01117 |
| Length | 38.1000 in |
| Length [Metric] | 38.1000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423477&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Phase | 3 pH |
| Returnable | Y |
| Series | HJA |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | PDC3HD2 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 800 A Hold, 1450 A |
| Type | MOLDED CASE CIRCUIT BREAKER |
| UNSPSC | 39121616 |
| UPC 11 | 78590150724 |
| UPC 12 | 785901507246 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.3000 in |
| Width [Metric] | 21.3000 cm |
| Wire Size | 14 to 3/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 90 A |
| Interrupt Rating | 20/25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| Distribution |
| I-LINE PLUG-ON |
