Square D™

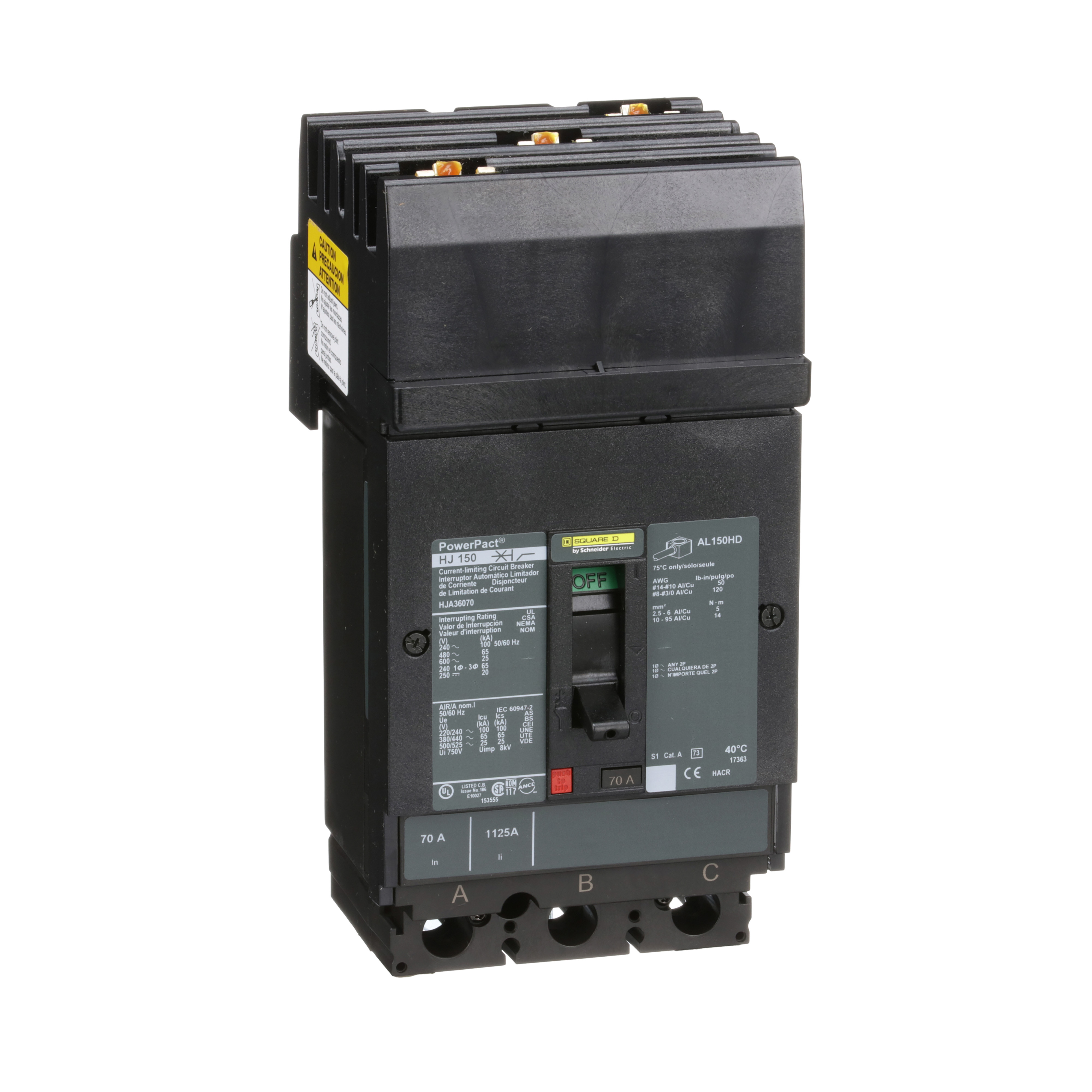

Square D™ PowerPact™ HJA36070 Molded Case Circuit Breaker, 600 VAC/250 VDC, 70 A, 20/25/65/100 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ PowerPact™ HJA36070 Molded Case Circuit Breaker, 600 VAC/250 VDC, 70 A, 20/25/65/100 kA Interrupt, 3 Poles
SKU234428
MFGR #HJA36070
Your Cost: $1,418.11/ea
List: Square D HJA36070 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 70A,-13F and 158F (-25 C and +70 C),100kA240VAC - 65kA480VAC - 25kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,70A,H-Frame,Hold 800A - Trip 1450A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Square D HJA36070 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 70A,-13F and 158F (-25 C and +70 C),100kA240VAC - 65kA480VAC - 25kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,70A,H-Frame,Hold 800A - Trip 1450A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Alternate Catalog Number HJA36070 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number HJA36070 Connection I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC Country of Origin CA Currency USD EU RoHS Indicator Y Frame H-FRAME Frequency Rating 50/60 Hz Gross Volume Per Pack 779.96 Gross Volume per Pack Metric 12781.20 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.4500 lb Gross Weight per Pack Metric 2.47 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 14.7000 in Height [Metric] 14.7000 cm Item Group 01117 Length 37.8000 in Length [Metric] 37.8000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423457&lang=en-us Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Phase ABC Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number S29371 Trip Range HOLD: 800A - TRIP: 1450A Type MOLDED CASE CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590170066 UPC 12 785901700661 Warranty Description Contractual Warranty:18 months Width 21.3000 in Width [Metric] 21.3000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 70 A Interrupt Rating 100KA240VAC - 65KA480VAC - 25KA600VAC - 20KA250VDC Trip Type THERMAL-MAGNETIC Voltage Rating 600//250 VAC//VDC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE PLUG-ON
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HJA36070 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HJA36070 |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Country of Origin | CA |
| Currency | USD |
| EU RoHS Indicator | Y |
| Frame | H-FRAME |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 779.96 |
| Gross Volume per Pack Metric | 12781.20 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.4500 lb |
| Gross Weight per Pack Metric | 2.47 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 14.7000 in |
| Height [Metric] | 14.7000 cm |
| Item Group | 01117 |
| Length | 37.8000 in |
| Length [Metric] | 37.8000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423457&lang=en-us |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Phase | ABC |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29371 |
| Trip Range | HOLD: 800A - TRIP: 1450A |
| Type | MOLDED CASE CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590170066 |
| UPC 12 | 785901700661 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.3000 in |
| Width [Metric] | 21.3000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 70 A |
| Interrupt Rating | 100KA240VAC - 65KA480VAC - 25KA600VAC - 20KA250VDC |
| Trip Type | THERMAL-MAGNETIC |
| Voltage Rating | 600//250 VAC//VDC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
