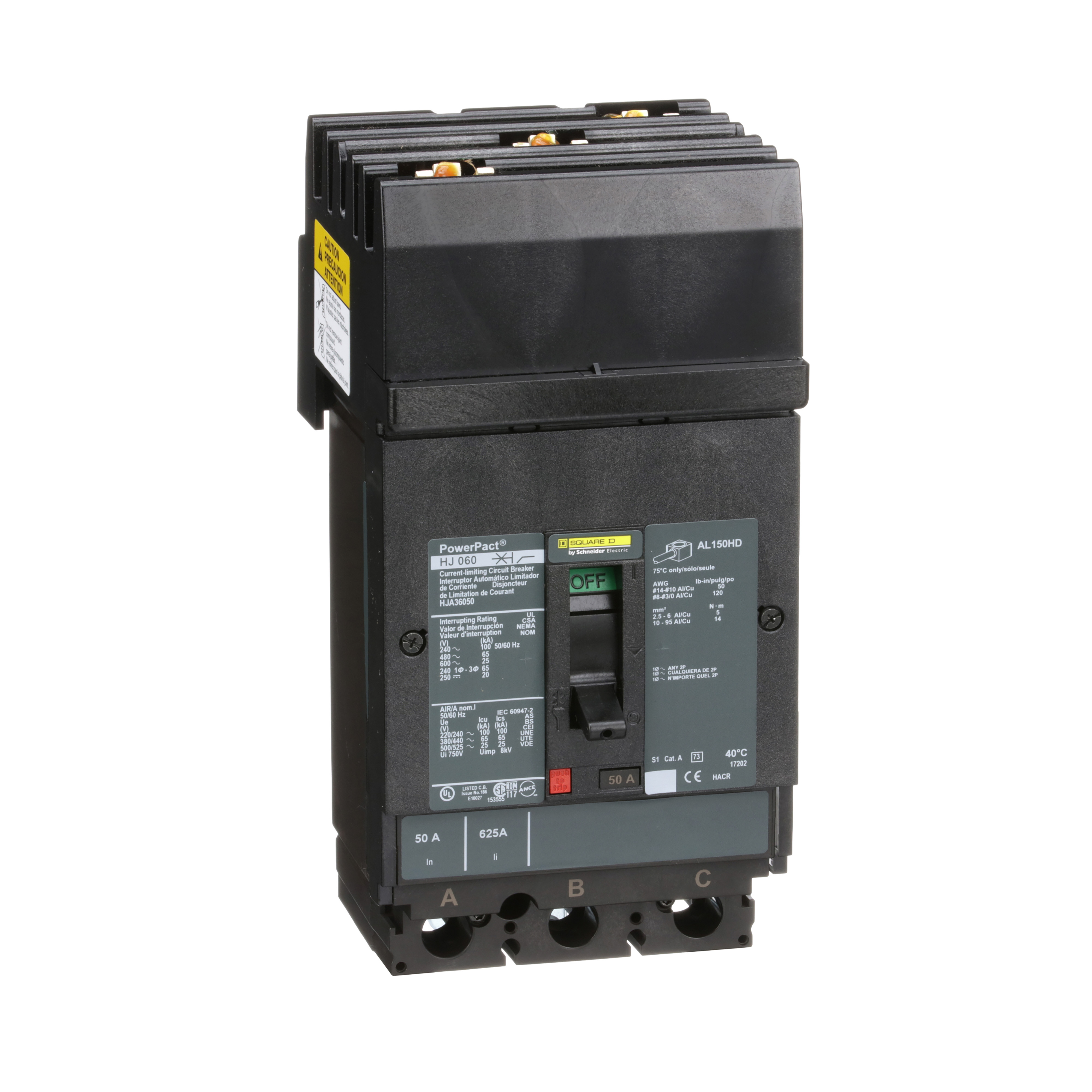

Square D™ PowerPact™ HJA36050 Molded Case Circuit Breaker, 600 VAC/250 VDC, 50 A, 20/25/65/100 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ HJA36050 Molded Case Circuit Breaker, 600 VAC/250 VDC, 50 A, 20/25/65/100 kA Interrupt, 3 Poles
SKU234430
MFGR #HJA36050
Your Cost: $1,267.06/ea
List: Square D HJA36050 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 50A,-13F and 158F (-25 C and +70 C),100kA240VAC - 65kA480VAC - 25kA600VAC - 20kA250VDC,3,50/60Hz,50A,600 Vac/250 Vdc,H-Frame,Hold 400A - Trip 850A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Square D HJA36050 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 50A,-13F and 158F (-25 C and +70 C),100kA240VAC - 65kA480VAC - 25kA600VAC - 20kA250VDC,3,50/60Hz,50A,600 Vac/250 Vdc,H-Frame,Hold 400A - Trip 850A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Alternate Catalog Number HJA36050 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number HJA36050 Connection I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC Connection Type I-Line® Lug Country of Origin CA Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 828.75 Gross Volume per Pack Metric 13580.73 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.5600 lb Gross Weight per Pack Metric 2.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 16.5100 in Height [Metric] 16.5100 cm Item Group 01117 Length 38.1000 in Length [Metric] 38.1000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423437&lang=en-us Mounting Type Plug-On Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Phase 3 pH Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number S29371 Temperature Rating -13 to 158 °F Trip Range 400 to 850 A Type Type HJA UNSPSC 39121601 UPC 11 78590150718 UPC 12 785901507185 Warranty Description Contractual Warranty:18 months Width 21.5900 in Width [Metric] 21.5900 cm Wire Size 14 to 3/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 50 A Interrupt Rating 25/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE PLUG-ON I-Line® connection (On end) - lugs (Off end) ABC 14 to 3/0 AWG aluminum copper wire 20 kA at 250 VDC, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC interrupt rating 400 A hold, 850 A trip Standard
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HJA36050 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HJA36050 |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Connection Type | I-Line® Lug |
| Country of Origin | CA |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 828.75 |
| Gross Volume per Pack Metric | 13580.73 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.5600 lb |
| Gross Weight per Pack Metric | 2.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 16.5100 in |
| Height [Metric] | 16.5100 cm |
| Item Group | 01117 |
| Length | 38.1000 in |
| Length [Metric] | 38.1000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423437&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29371 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 400 to 850 A |
| Type | Type HJA |
| UNSPSC | 39121601 |
| UPC 11 | 78590150718 |
| UPC 12 | 785901507185 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.5900 in |
| Width [Metric] | 21.5900 cm |
| Wire Size | 14 to 3/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 50 A |
| Interrupt Rating | 25/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| I-Line® connection (On end) - lugs (Off end) ABC |
| 14 to 3/0 AWG aluminum copper wire |
| 20 kA at 250 VDC, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC interrupt rating |
| 400 A hold, 850 A trip |
| Standard |
