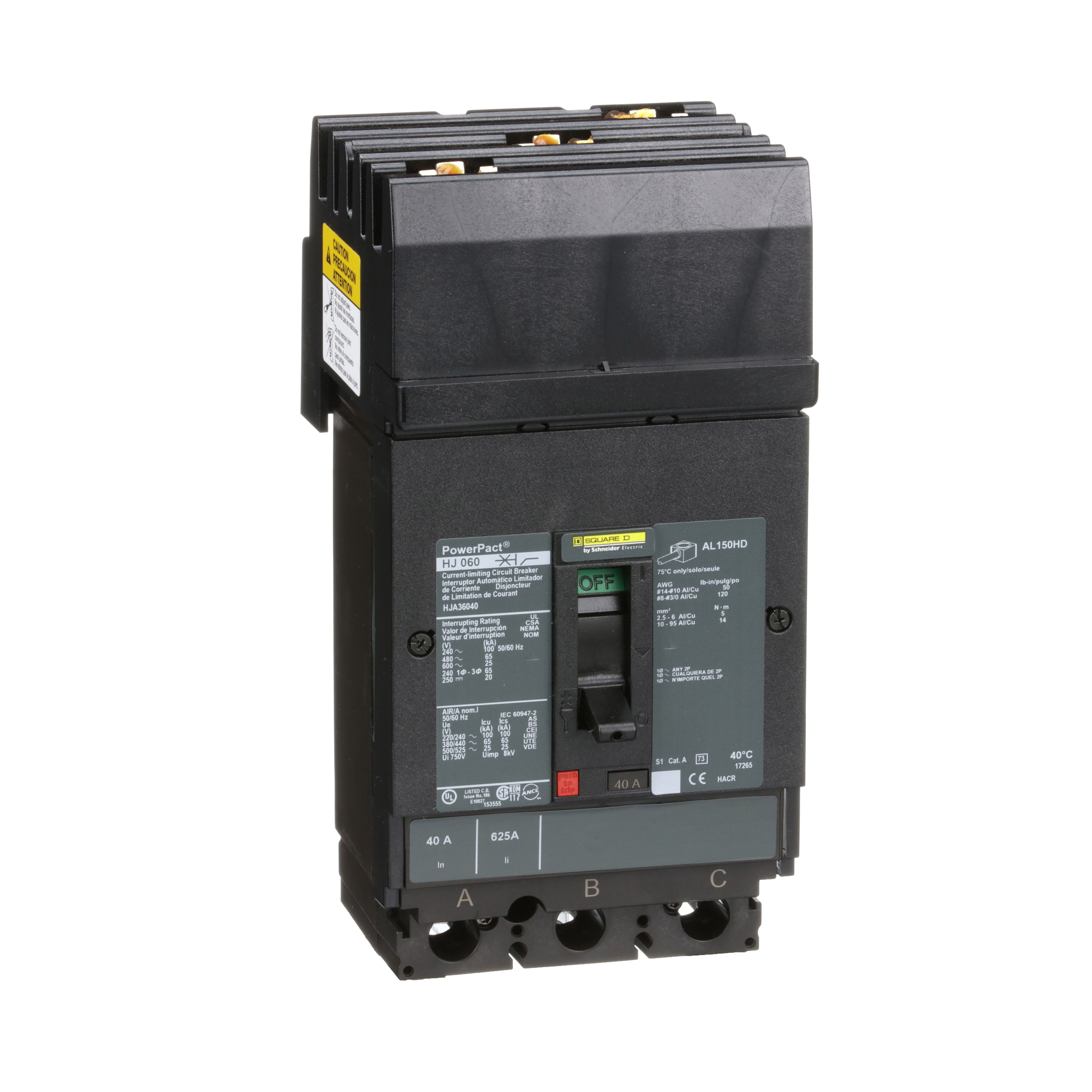

Square D™ PowerPact™ HJA36040 Molded Case Circuit Breaker, 600 VAC/250 VDC, 40 A, 20/25/65/100 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
234434
MFG #: HJA36040
Square D™
1267.06000
/ ea
Square D HJA36040 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 40A,-13F and 158F (-25 C and +70 C),100kA240VAC - 65kA480VAC - 25kA600VAC - 20kA250VDC,3,40A,50/60Hz,600 Vac/250 Vdc,H-Frame,Hold 400A - Trip 850A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
- 360 Degree View URL - index.html?pid=11003&id=8074700360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=HJA36040(3D Rendering URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_86e26fd7091d91eac4712e605cbef2835e4eb44b75b1f59c013fd6082b480e4e.pdf(Catalog URL)
- Compliance Cert URL - Square_D_HJA36040_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=HJA36040_2D+Bottom+View.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_53YTUREX8MABDKHV.pdf(Install Instructions 1 URL)
- Install Instructions URL - files?p_Doc_Ref=48940-207-03(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_OHXSF8E4N5AQMWR2.pdf(Service Manual URL)
- Spec Sheet URL - 11003_R3CWDXNY59V7Q61P.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_VRP57W264AQSK31L.pdf(Tech Bulletin URL)
- User Manual URL - 11003_X4QGCHKPU1SLW5TD.pdf(User Manual URL)
- Video - https://youtube.com/embed/65pcjiB4F1U(Video)
- Tech Drawing URL - 11003_FMVY4SJ61DP0LRGH.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/4wUOBk4oUmk(Video)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| I-Line connection (ON end) - lugs (OFF end) ABC |
| 14 - 3/0 AWG copper/aluminum |
| 20 kA at 250 VDC, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC |
| 400 A hold, 850 A trip |
| Standard |
