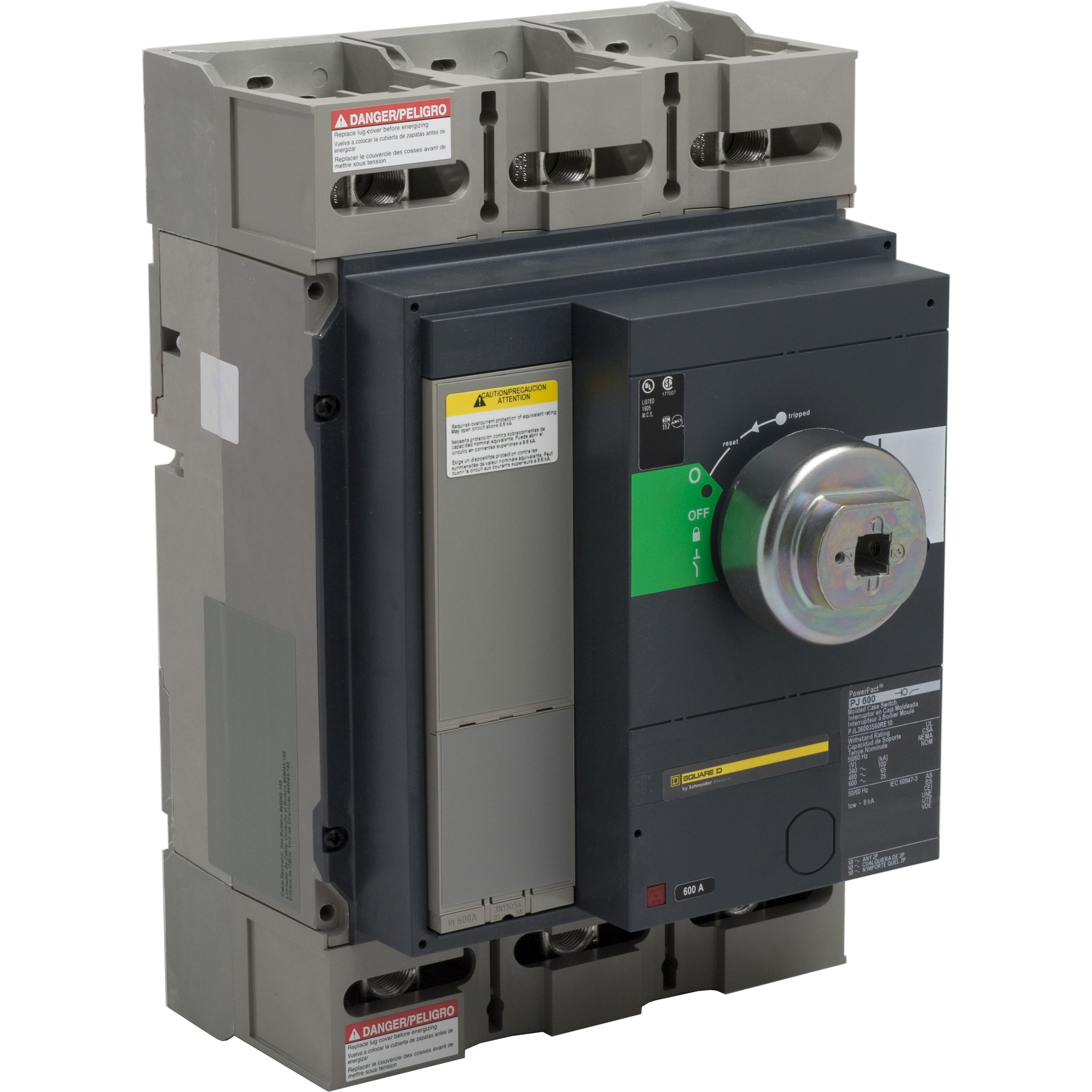

Square D™ PJL36000S80RE10 AUTOMATIC MOLDE
Custom_Product_Images_Illustration
Square D™
Square D™ PJL36000S80RE10 AUTOMATIC MOLDE
SKU377826
MFGR #PJL36000S80RE10
Call For Price
List: Square D PJL36000S80RE10 AUTOMATIC MOLDED CASE SWITCH 600V 800A,600 Vac,800A,Lugs (Both Ends) (3)#3/0 to 500 AWG/kcmil(Al/Cu),Molded Case Switch,P-Frame 3-Pole,Powerpact,UL Listed - CSA Certified - IEC Rated,plug-on
Square D PJL36000S80RE10 AUTOMATIC MOLDED CASE SWITCH 600V 800A,600 Vac,800A,Lugs (Both Ends) (3)#3/0 to 500 AWG/kcmil(Al/Cu),Molded Case Switch,P-Frame 3-Pole,Powerpact,UL Listed - CSA Certified - IEC Rated,plug-on
Actuator Type Rotary Handle Alternate Catalog Number PJL36000S80RE10 ARRA Compliant N Buy American Compliant N Catalog Number PJL36000S80RE10 Connection AWG 3/0...500 KCMIL ALUMINIUM/COPPER)3,LUGS LINE-LUGS LOAD Connection Type Feed-Through/Line/Load Lug/Plug-On Country of Origin US Currency USD Dimensions 16.24 in H x 16.54 in W x 14.49 in D EU RoHS Indicator Y Frame P Gross Weight Per Pack 0.1452 lb Gross Weight per Pack Metric 14.52 Gross Weight UOM Metric kg Height 29.8450 CM Height [Metric] 29.8450 cm Item Group 01215 Length 51.4350 CM Length [Metric] 51.4350 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432659&lang=en-us Mounting UNIT MOUNT Mounting Type Unit Number Of Poles 3 Phase 3 pH Returnable N Size 14.49 IN,16.24 IN,16.54 IN in Standard IEC-CSA-UL LISTED Sub Brand POWERPACT Type Automatic UNSPSC 39122245 UPC 11 78590167853 UPC 12 785901678533 Warranty Description Contractual Warranty:18 months Width 30.0000 CM Width [Metric] 29.5280 cm Wire Size 3/0 AWG to 500 kcmil (Al/Cu) Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 800 A Interrupt Rating 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Trip Type Magnetic Voltage Rating 600 VAC LUGS LOAD-LUGS LINE
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Rotary Handle |
| Alternate Catalog Number | PJL36000S80RE10 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PJL36000S80RE10 |
| Connection | AWG 3/0...500 KCMIL ALUMINIUM/COPPER)3,LUGS LINE-LUGS LOAD |
| Connection Type | Feed-Through/Line/Load Lug/Plug-On |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 16.24 in H x 16.54 in W x 14.49 in D |
| EU RoHS Indicator | Y |
| Frame | P |
| Gross Weight Per Pack | 0.1452 lb |
| Gross Weight per Pack Metric | 14.52 |
| Gross Weight UOM Metric | kg |
| Height | 29.8450 CM |
| Height [Metric] | 29.8450 cm |
| Item Group | 01215 |
| Length | 51.4350 CM |
| Length [Metric] | 51.4350 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432659&lang=en-us |
| Mounting | UNIT MOUNT |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | N |
| Size | 14.49 IN,16.24 IN,16.54 IN in |
| Standard | IEC-CSA-UL LISTED |
| Sub Brand | POWERPACT |
| Type | Automatic |
| UNSPSC | 39122245 |
| UPC 11 | 78590167853 |
| UPC 12 | 785901678533 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 30.0000 CM |
| Width [Metric] | 29.5280 cm |
| Wire Size | 3/0 AWG to 500 kcmil (Al/Cu) |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 800 A |
| Interrupt Rating | 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC |
| Trip Type | Magnetic |
| Voltage Rating | 600 VAC |
| LUGS LOAD-LUGS LINE |
