Square D™ PCSPCTFCL150054 AccuSine Split core, 1500 A primary, 5 A secondary, 720 VAC, 400 Hz
Current Transformers
PDW~11755581
MFG #: PCSPCTFCL150054
Square D™
0.00000
/ ea

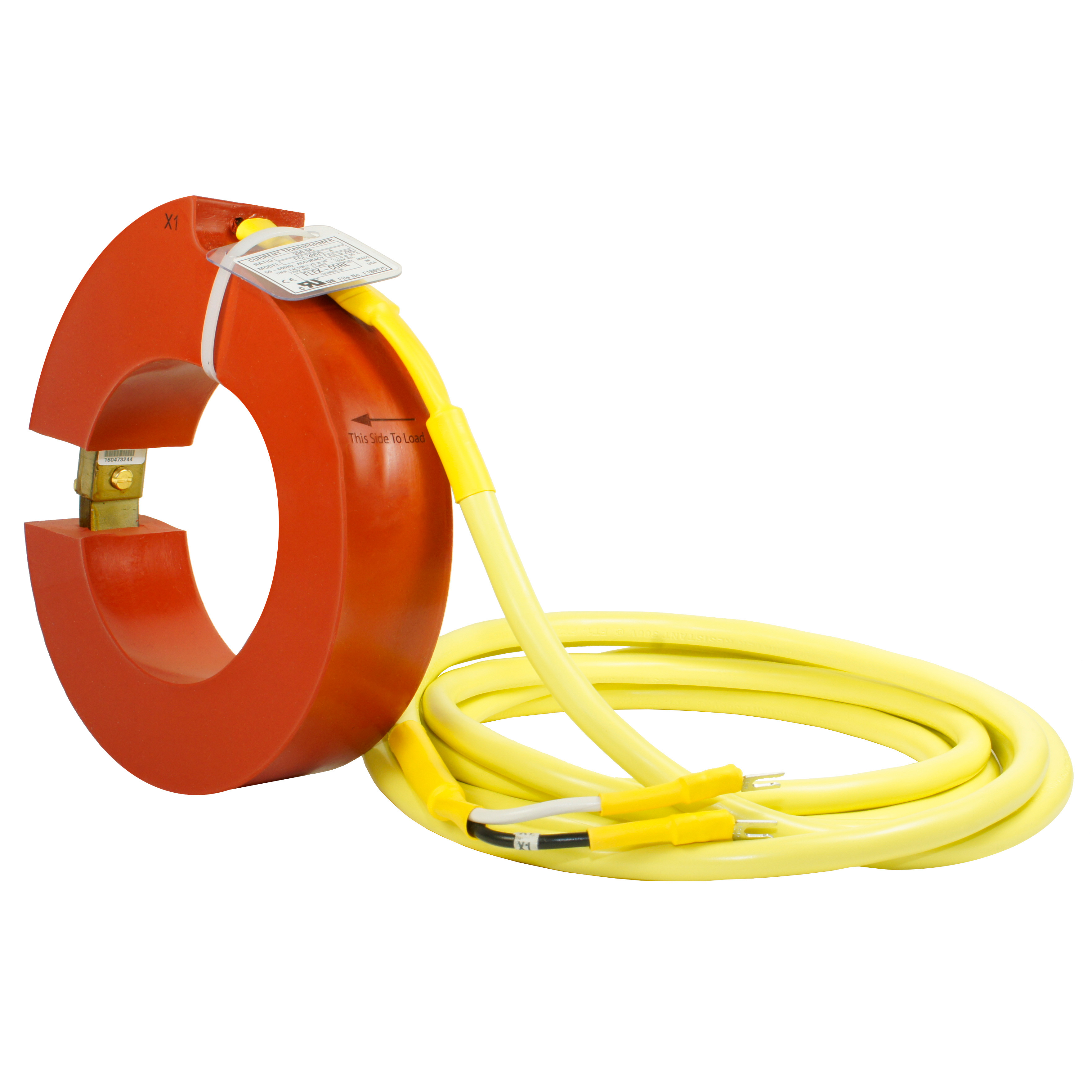

Square D™ PCSPCTFCL150054, Split core, AccuSine, 1500 A Primary Current, 5 A Secondary Current, 720 VAC, 400 Hz Frequency, 1 % Accuracy, Flying Lead Connection, -45 to 55 deg C
- Features
| AccuSine PVF+ can be operated as a displacement power factor correction and/or load balancing device |
| Optimized unity PF, Leading (capacitive) or lagging (inductive) power factor (Cos f) to target |
| Negative sequence current injected to balance fundamental current on the mains due to load imbalance (inherently corrects displacement PF (Cos ?)) |
| 25 ?s control response time |
| 1/4 cycle reactive correction time |
| 0-95 %, noncondensing relative humidity |
| 1000 m (derate 1 %/100 m above) operating altitude |
| Split core current transformer type |
| Round shape |
| 0.375 Ohm input impedance |
| 0.375 Ohm input impedance |
| 1.25 86 deg F (30 deg C)1 131 deg F (55 deg C) thermal factor |
| 1 % measurement accuracy |
| 10 kV 50 s) uimp rated impulse withstand voltage |
| Inner 40 in (101.6 mm)Outer 6.50 in (165.1 mm) diameter |
| With toxic heavy metal free |
