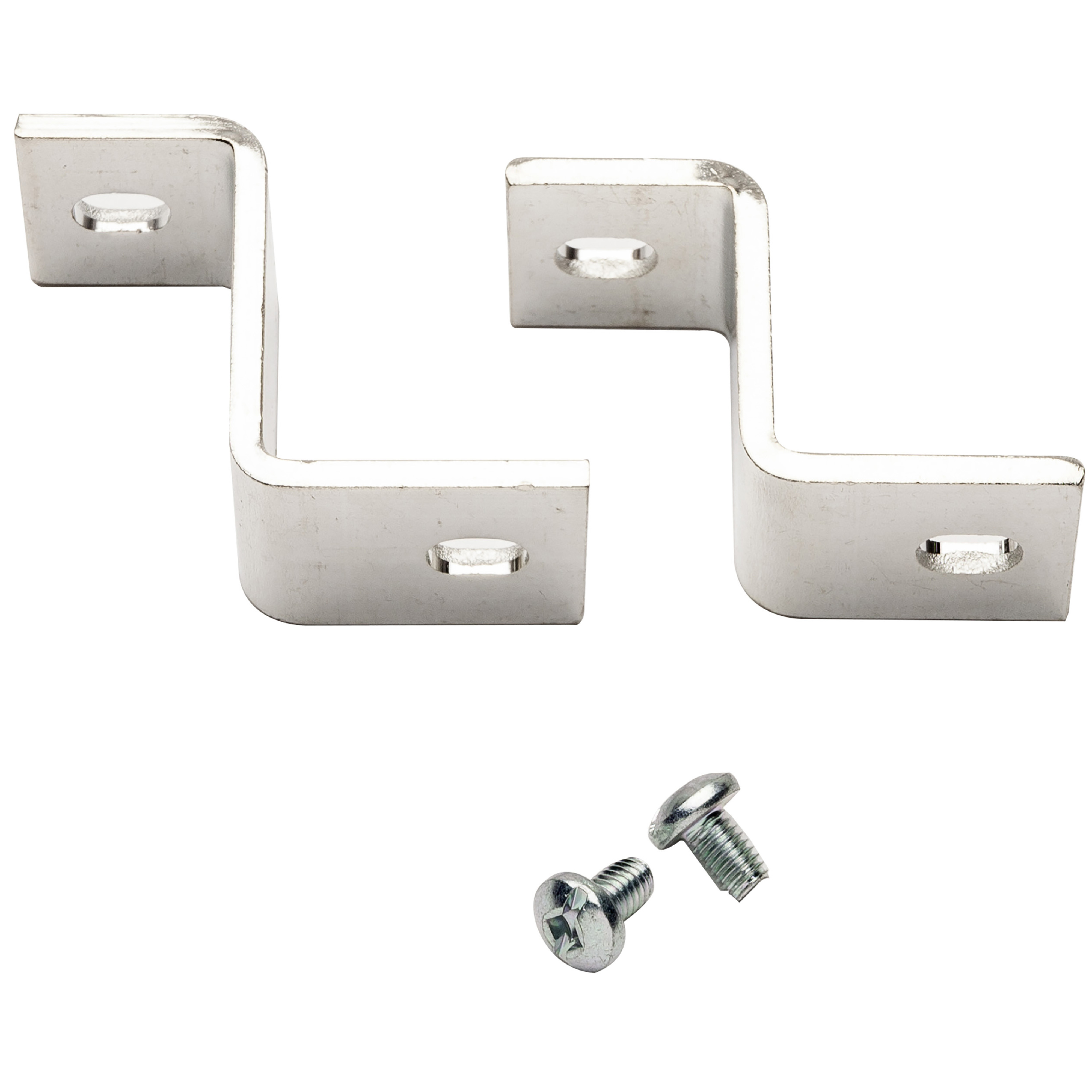

Square D™ NFNQCRBOND46 Mounting kit, For Use With NF panelboard interior/NQ panelboard interior
Panelboard Mounting Accessories
1350170
MFG #: NFNQCRBOND46
Square D™
193.77000
/ ea
- Brochure URL - 11003_2Y4ABWGQ1ZELR0J5.pdf(Brochure URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_8BU23JVRTY5Q40ZX.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_9ZSYQLUECR6A1FJ7.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_MIPO8VJYX9FCTSG5.pdf(Tech Drawing URL)
- User Manual URL - 11003_4L8BFTZ0QA3Y5V7O.pdf(User Manual URL)
- User Manual URL - 11003_5EL0QCPY84JKZDI7.pdf(User Manual URL)
- Applications
- Features
| For NF panelboard interior, NQ panelboard interior |
| Fully rated to 65 kA SCCR at 480Y/277 Volts (Series rated to 200 kA) |
| 15 - 125 Amp HACR rated bolt-on branch circuit breakers with VISI-TRIP indication (HID rated up to 50A; 1f SWD rated to 20A) |
| NEMA Type 1, 2, 3R, 4, 4X, 5 and 12 enclosures |
| Interiors are field convertible to top or bottom feed |
| Aluminum or Copper bus |
| Suitable for use as service equipment |
| Field installable main breaker accessories, undervoltage release, alarm switch and auxiliary contacts |
| Modular construction to accept field installable accessories and conversion kits |
| Split bus |
| Compression Lugs |
| Compression Lugs |
| Surge Protection Devices |
| Phenolic nameplates |
