Square D™

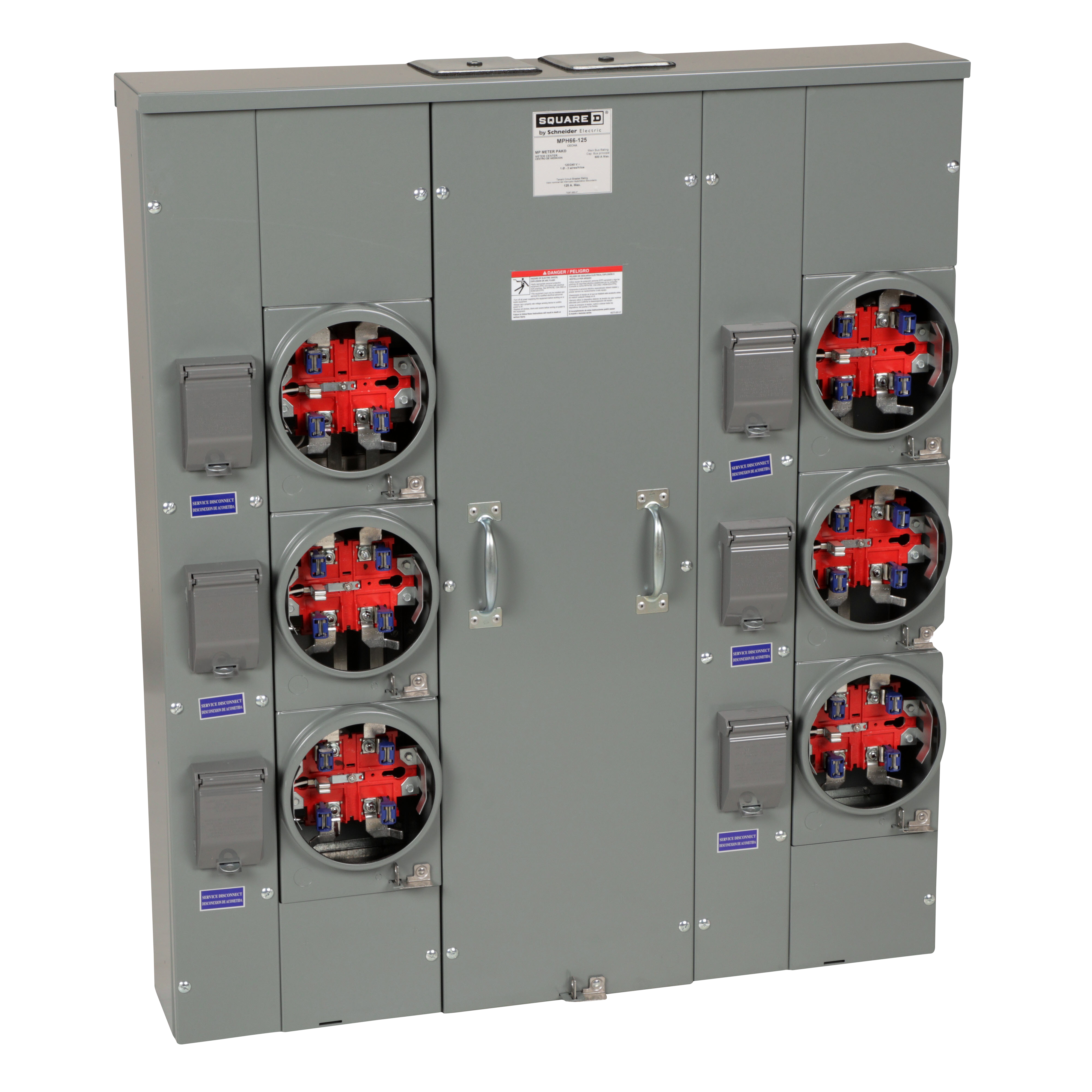

Square D™ Meter-Pak™ MP Series 6-Position Ringless Meter Socket, 240 VAC, 125 A, 1 Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™
Square D™ Meter-Pak™ MP Series 6-Position Ringless Meter Socket, 240 VAC, 125 A, 1 Phase, NEMA 3R Enclosure
SKU483908
MFGR #MPH66125
Your Cost: $1,877.22/ea
List: Square D MPH66125 MTR MP DEVICE RINGLESS HORN 125A 6 POS.,125 A,240 V AC,Meter Center,Meter-Pak,NEMA 3R,OH/UG,UL Listed,horn bypass,ringless,surface
Square D MPH66125 MTR MP DEVICE RINGLESS HORN 125A 6 POS.,125 A,240 V AC,Meter Center,Meter-Pak,NEMA 3R,OH/UG,UL Listed,horn bypass,ringless,surface
Alternate Catalog Number MPH66125 ARRA Compliant N Buy American Compliant N Bypass Type Horn bypass Cable Entry UG-OH Catalog Number MPH66125 Country of Origin MX Cover Type Ringless Currency USD Enclosure Steel EU RoHS Indicator Y Feed Type Overhead/Underground Gross Volume Per Pack 13549.68 Gross Volume per Pack Metric 222038.61 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 131.9900 lb Gross Weight per Pack Metric 59.87 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 21.5900 in Height [Metric] 21.6000 cm Hub Type (2) A-L Item Group 00021 Jaw Quantity 5 Length 109.7280 in Length [Metric] 109.7000 cm Line Side Wire Range AWG 1/0...600 kcmil 1 aluminium;AWG 1/0...600 kcmil 1 copper Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=359601&lang=en-us Mounting Surface Mounting Type Surface Number of Jaws 5 Number of Meter Positions 6 Returnable Y Series MP Series Standard UL LISTED Sub Brand METER-PAK Substitute Product Catalog Number 5J Type 6-Position 3-Wire Main Lug UNSPSC 39121102 UPC 11 78590120814 UPC 12 785901208143 Warranty Description Contractual Warranty:18 months Width 93.7260 in Width [Metric] 93.7000 cm Wire Size 1/0 AWG to 600 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125 A Enclosure Type NEMA 3R Phase 1 pH Voltage Rating 240 VAC MAIN LUGS,ALUMINIUM BUSBAR Enclosures are indoor/rainproof NEMA 3R construction Swingable mounting feet supplied at bottom of device Surface mount or convertible to semi-flush with field installed flange kit Aluminum busbar and steel enclosure 9 in meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures 400/500 A main rated and 600 A bus rated current (2) ACPL closing plate
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | MPH66125 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | Horn bypass |
| Cable Entry | UG-OH |
| Catalog Number | MPH66125 |
| Country of Origin | MX |
| Cover Type | Ringless |
| Currency | USD |
| Enclosure | Steel |
| EU RoHS Indicator | Y |
| Feed Type | Overhead/Underground |
| Gross Volume Per Pack | 13549.68 |
| Gross Volume per Pack Metric | 222038.61 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 131.9900 lb |
| Gross Weight per Pack Metric | 59.87 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 21.5900 in |
| Height [Metric] | 21.6000 cm |
| Hub Type | (2) A-L |
| Item Group | 00021 |
| Jaw Quantity | 5 |
| Length | 109.7280 in |
| Length [Metric] | 109.7000 cm |
| Line Side Wire Range | AWG 1/0...600 kcmil 1 aluminium;AWG 1/0...600 kcmil 1 copper |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=359601&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number of Jaws | 5 |
| Number of Meter Positions | 6 |
| Returnable | Y |
| Series | MP Series |
| Standard | UL LISTED |
| Sub Brand | METER-PAK |
| Substitute Product Catalog Number | 5J |
| Type | 6-Position 3-Wire Main Lug |
| UNSPSC | 39121102 |
| UPC 11 | 78590120814 |
| UPC 12 | 785901208143 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 93.7260 in |
| Width [Metric] | 93.7000 cm |
| Wire Size | 1/0 AWG to 600 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125 A |
| Enclosure Type | NEMA 3R |
| Phase | 1 pH |
| Voltage Rating | 240 VAC |
| MAIN LUGS,ALUMINIUM BUSBAR |
| Enclosures are indoor/rainproof NEMA 3R construction |
| Swingable mounting feet supplied at bottom of device |
| Surface mount or convertible to semi-flush with field installed flange kit |
| Aluminum busbar and steel enclosure |
| 9 in meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures |
| 400/500 A main rated and 600 A bus rated current |
| (2) ACPL closing plate |
