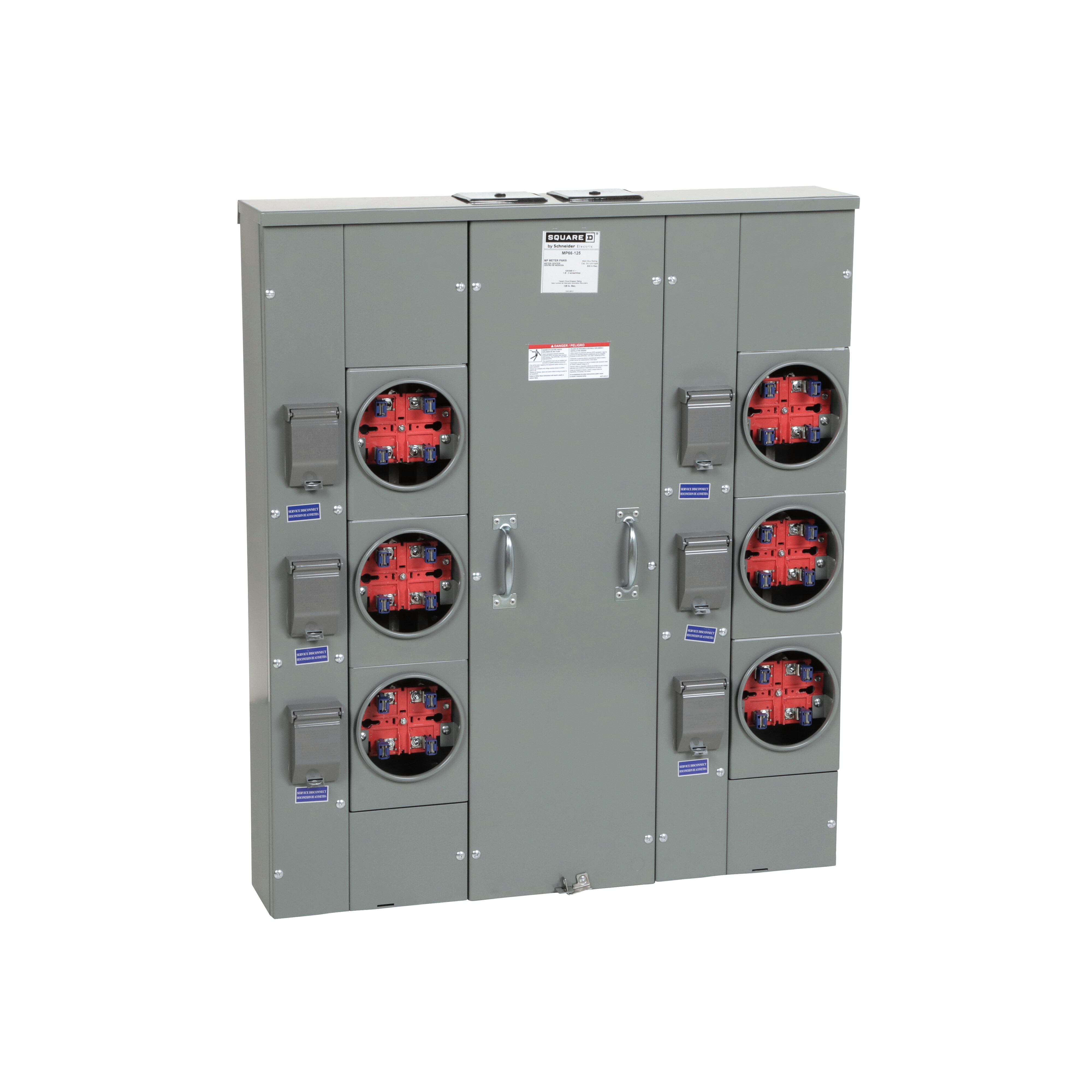

Square D™ Meter-Pak™ MP Series 6-Position Ringed Meter Socket, 240 VAC, 125 A, 1 Phase, NEMA 3R Enclosure
Meter Sockets - Multi Position
382218
MFG #: MP66125
Square D™
2415.00000
/ ea
Square D MP66125 METERING MP DEVICE RING 125A 6 POSITION,125 A,240 V AC,Meter Center,Meter-Pak,NEMA 3R,OH/UG,UL Listed,no bypass,ringed,surface
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8138789360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_O20ILD847ERGQUMN.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - 33ab9a14717b11dad88bedc7430215a7453c312f.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_L807O3EKQMDBTYUP.pdf(Install Instructions 1 URL)
- Install Instructions URL - SquareD_MPH22125_Installation_Instruction.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_4DY89QK3ITWCAVML.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_7KNR4ZQP8VXA5M2G.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_JCKY7BR8DHGTQ1VS.dwg(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=2250.dwg(Tech Drawing URL)
- Video - https://youtube.com/embed/ESGPy5Fuscg(Video)
- Features
| MAIN LUGS,ALUMINIUM BUSBAR |
| Enclosures are indoor/rainproof NEMA 3R construction |
| Swingable mounting feet supplied at bottom of device |
| Surface mount or convertible to semi-flush with field installed flange kit |
| Aluminum busbar and steel enclosure |
| 9 in meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures |
| 400/500 A main rated and 600 A bus rated current |
| Without bypass |
| (2) ACPL closing plate |
