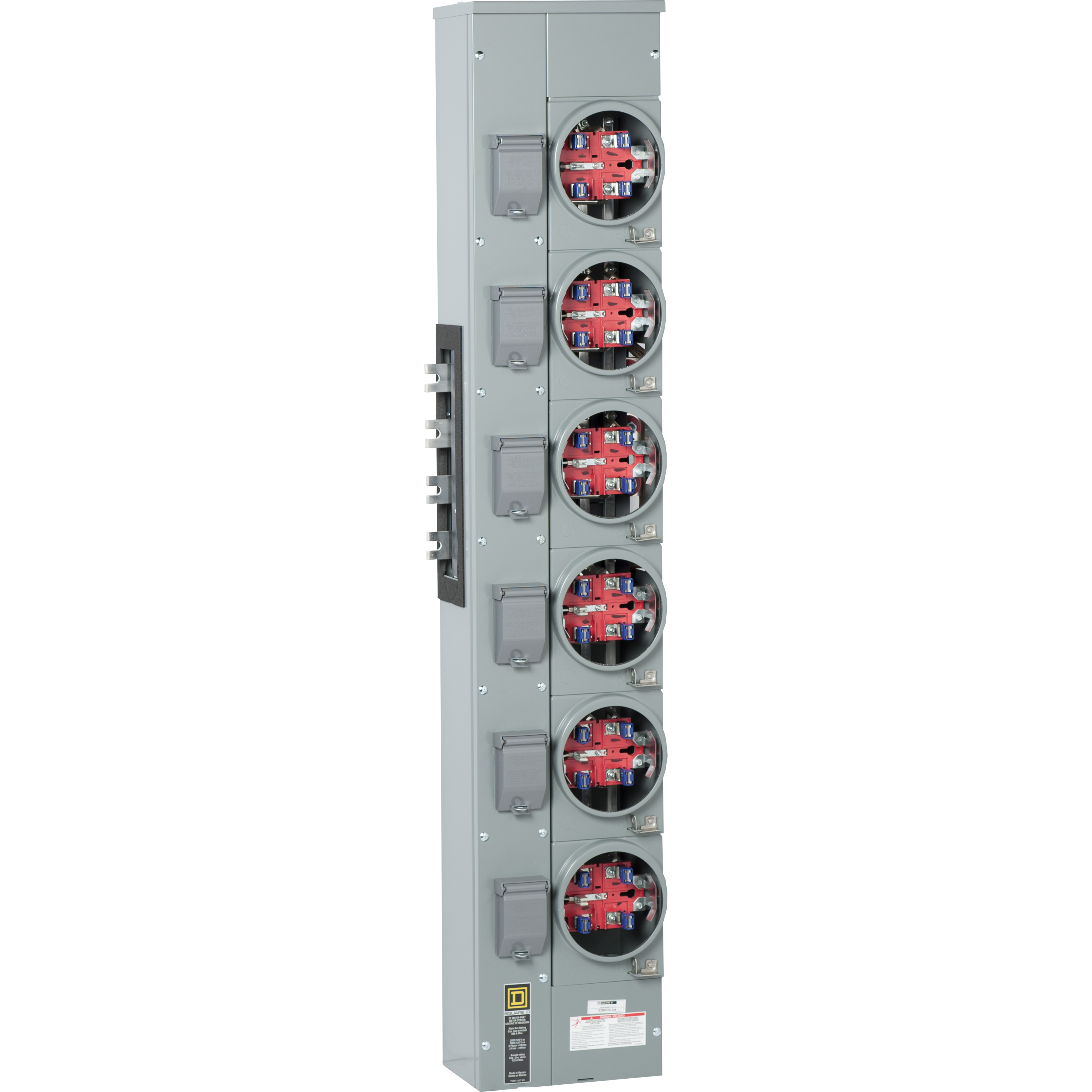

Square D™ Meter-Pak™ EZMR316125CUX 6-Position Meter Center Branch Unit, 208Y/120 VAC, 125 A, 1/3 ph Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™ Meter-Pak™ EZMR316125CUX 6-Position Meter Center Branch Unit, 208Y/120 VAC, 125 A, 1/3 ph Phase, NEMA 3R Enclosure
SKUPDW~6399926
MFGR #EZMR316125CUX
Your Cost: $1,374.34/ea
List: Square D™ Meter-Pak™ Meter Center Branch Unit, 6-Position, Series: EZM, 208Y/120 VAC, 125 A, 1/3 ph, 6 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 66.12 in H x 12.25 in W x 7.09 in D
Square D™ Meter-Pak™ Meter Center Branch Unit, 6-Position, Series: EZM, 208Y/120 VAC, 125 A, 1/3 ph, 6 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 66.12 in H x 12.25 in W x 7.09 in D
Alternate Catalog Number EZMR316125CUX Application For used as service equipment and use on the line side of service equipment ARRA Compliant N Buy American Compliant N Bypass Type No Bypass Catalog Number EZMR316125CUX Country of Origin MX Currency USD Enclosure NEMA 3R,STEEL EU RoHS Indicator Y Gross Weight Per Pack 114.4000 lb Gross Weight per Pack Metric 51.89 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 66.1417 in Height [Metric] 167.9000 cm Item Group 00020 Length 7.0866 in Length [Metric] 18.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358651&lang=en-us Mounting Surface Number of Meter Positions 6 Returnable N Size 12.25 IN,66.12 IN in Standard UL LISTED Sub Brand METER-PAK Substitute Product Catalog Number EZM31600TB Type METER CENTER BRANCH UNIT,RINGLESS UNSPSC 39121102 UPC 11 78590119811 UPC 12 785901198116 Upsell Product Catalog Number EZM31600GCBU Warranty Description Contractual Warranty:18 months Width 12.2047 in Width [Metric] 31.1000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1200 A,125 A Phase 1 PHASE OUT-3 PHASE IN Voltage Rating 120/208 VAC For used as service equipment and use on the line side of service equipment COPPER BUSBAR 3 phase 4-wire service feed, 1 phase 3-wire load feed 1200 A copper horizontal cross busbar Without jaw release Without bypass
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EZMR316125CUX |
| Application | For used as service equipment and use on the line side of service equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | No Bypass |
| Catalog Number | EZMR316125CUX |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 3R,STEEL |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 114.4000 lb |
| Gross Weight per Pack Metric | 51.89 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 66.1417 in |
| Height [Metric] | 167.9000 cm |
| Item Group | 00020 |
| Length | 7.0866 in |
| Length [Metric] | 18.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358651&lang=en-us |
| Mounting | Surface |
| Number of Meter Positions | 6 |
| Returnable | N |
| Size | 12.25 IN,66.12 IN in |
| Standard | UL LISTED |
| Sub Brand | METER-PAK |
| Substitute Product Catalog Number | EZM31600TB |
| Type | METER CENTER BRANCH UNIT,RINGLESS |
| UNSPSC | 39121102 |
| UPC 11 | 78590119811 |
| UPC 12 | 785901198116 |
| Upsell Product Catalog Number | EZM31600GCBU |
| Warranty Description | Contractual Warranty:18 months |
| Width | 12.2047 in |
| Width [Metric] | 31.1000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1200 A,125 A |
| Phase | 1 PHASE OUT-3 PHASE IN |
| Voltage Rating | 120/208 VAC |
| For used as service equipment and use on the line side of service equipment |
| COPPER BUSBAR |
| 3 phase 4-wire service feed, 1 phase 3-wire load feed |
| 1200 A copper horizontal cross busbar |
| Without jaw release |
| Without bypass |
