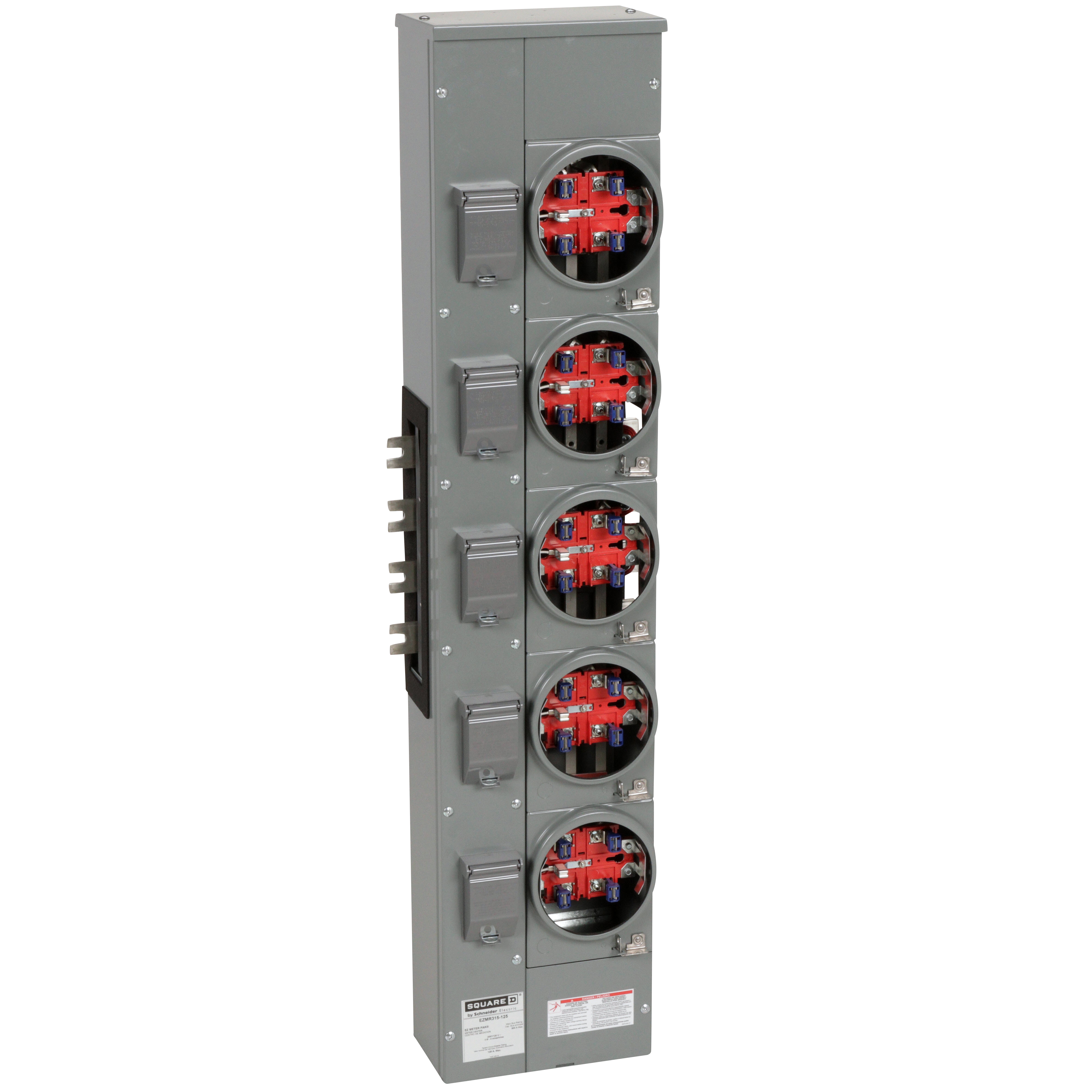

Square D™ Meter-Pak™ EZMR315125 5-Position 4-Wire Meter Center Branch Unit, 120/208Y VAC, 125/800 A, 1/3 Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™ Meter-Pak™ EZMR315125 5-Position 4-Wire Meter Center Branch Unit, 120/208Y VAC, 125/800 A, 1/3 Phase, NEMA 3R Enclosure
SKUPDW~6399916
MFGR #EZMR315125
Your Cost: $1,146.54/ea
List: Square D™ Meter-Pak™ Meter Center Branch Unit, 5-Position 4-Wire, Series: EZM, 120/208Y VAC, 125/800 A, 1/3 ph, Overhead/Underground Feed, 5 Jaws, Ringless Cover, Surface Mounting, NEMA 3R Enclosure, 57.12 in H x 12.25 in W x 7.09 in D Dimensions
Square D™ Meter-Pak™ Meter Center Branch Unit, 5-Position 4-Wire, Series: EZM, 120/208Y VAC, 125/800 A, 1/3 ph, Overhead/Underground Feed, 5 Jaws, Ringless Cover, Surface Mounting, NEMA 3R Enclosure, 57.12 in H x 12.25 in W x 7.09 in D Dimensions
Alternate Catalog Number EZMR315125 Application For service equipment ARRA Compliant N Buy American Compliant N Bypass Type No Bypass Catalog Number EZMR315125 Country of Origin US Cover Type Ringless Currency USD Depth 7.09 in Dimensions 57.12 in H x 12.25 in W x 7.09 in D Enclosure Steel EU RoHS Indicator Y Feed Type Overhead/Underground Gross Volume Per Pack 7451.84 Gross Volume per Pack Metric 122113.30 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.3493 lb Gross Weight per Pack Metric 34.93 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 22.3520 in Height [Metric] 22.4000 cm Item Group 00020 Length 147.3200 in Length [Metric] 147.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358625&lang=en-us Mounting Surface Mounting Type Surface Number of Jaws 5 Number of Meter Positions 5 Returnable Y Series EZM Size 57.12 in Standard UL LISTED Sub Brand METER-PAK Substitute Product Catalog Number MMLK500 Type 5-Position 4-Wire UNSPSC 39121102 UPC 11 78590140225 UPC 12 785901402251 Warranty Description Contractual Warranty:18 months Width 37.0840 in Width [Metric] 37.1000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125/800 Enclosure Type NEMA 3R Phase 1/3 Voltage Rating 120/208Y VAC For service equipment Aluminium busbar Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit Meter breaker units can be supplied with either 1-phase 3-wire or 3-phase 4-wire service The main bus on residential units with 40 to 200 A circuit breaker provisions is 800 or 1200 A in units using commercial 200 and 400 A branch circuit breakers To suit individual applications, residential and commercial devices may be interconnected Basic devices for connection to 3-phase 4-wire 120/208 VAC service are factory phase balanced to save installation time The phase balancing may be modified in the field to meet most system variations Aluminum horizontal cross busbar 3-phase 4-wire service feed, 1-phase 3-wire load feed Without jaw release
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EZMR315125 |
| Application | For service equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | No Bypass |
| Catalog Number | EZMR315125 |
| Country of Origin | US |
| Cover Type | Ringless |
| Currency | USD |
| Depth | 7.09 in |
| Dimensions | 57.12 in H x 12.25 in W x 7.09 in D |
| Enclosure | Steel |
| EU RoHS Indicator | Y |
| Feed Type | Overhead/Underground |
| Gross Volume Per Pack | 7451.84 |
| Gross Volume per Pack Metric | 122113.30 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.3493 lb |
| Gross Weight per Pack Metric | 34.93 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 22.3520 in |
| Height [Metric] | 22.4000 cm |
| Item Group | 00020 |
| Length | 147.3200 in |
| Length [Metric] | 147.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358625&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number of Jaws | 5 |
| Number of Meter Positions | 5 |
| Returnable | Y |
| Series | EZM |
| Size | 57.12 in |
| Standard | UL LISTED |
| Sub Brand | METER-PAK |
| Substitute Product Catalog Number | MMLK500 |
| Type | 5-Position 4-Wire |
| UNSPSC | 39121102 |
| UPC 11 | 78590140225 |
| UPC 12 | 785901402251 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 37.0840 in |
| Width [Metric] | 37.1000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125/800 |
| Enclosure Type | NEMA 3R |
| Phase | 1/3 |
| Voltage Rating | 120/208Y VAC |
| For service equipment |
| Aluminium busbar |
| Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit |
| Meter breaker units can be supplied with either 1-phase 3-wire or 3-phase 4-wire service |
| The main bus on residential units with 40 to 200 A circuit breaker provisions is 800 or 1200 A in units using commercial 200 and 400 A branch circuit breakers |
| To suit individual applications, residential and commercial devices may be interconnected |
| Basic devices for connection to 3-phase 4-wire 120/208 VAC service are factory phase balanced to save installation time |
| The phase balancing may be modified in the field to meet most system variations |
| Aluminum horizontal cross busbar |
| 3-phase 4-wire service feed, 1-phase 3-wire load feed |
| Without jaw release |
