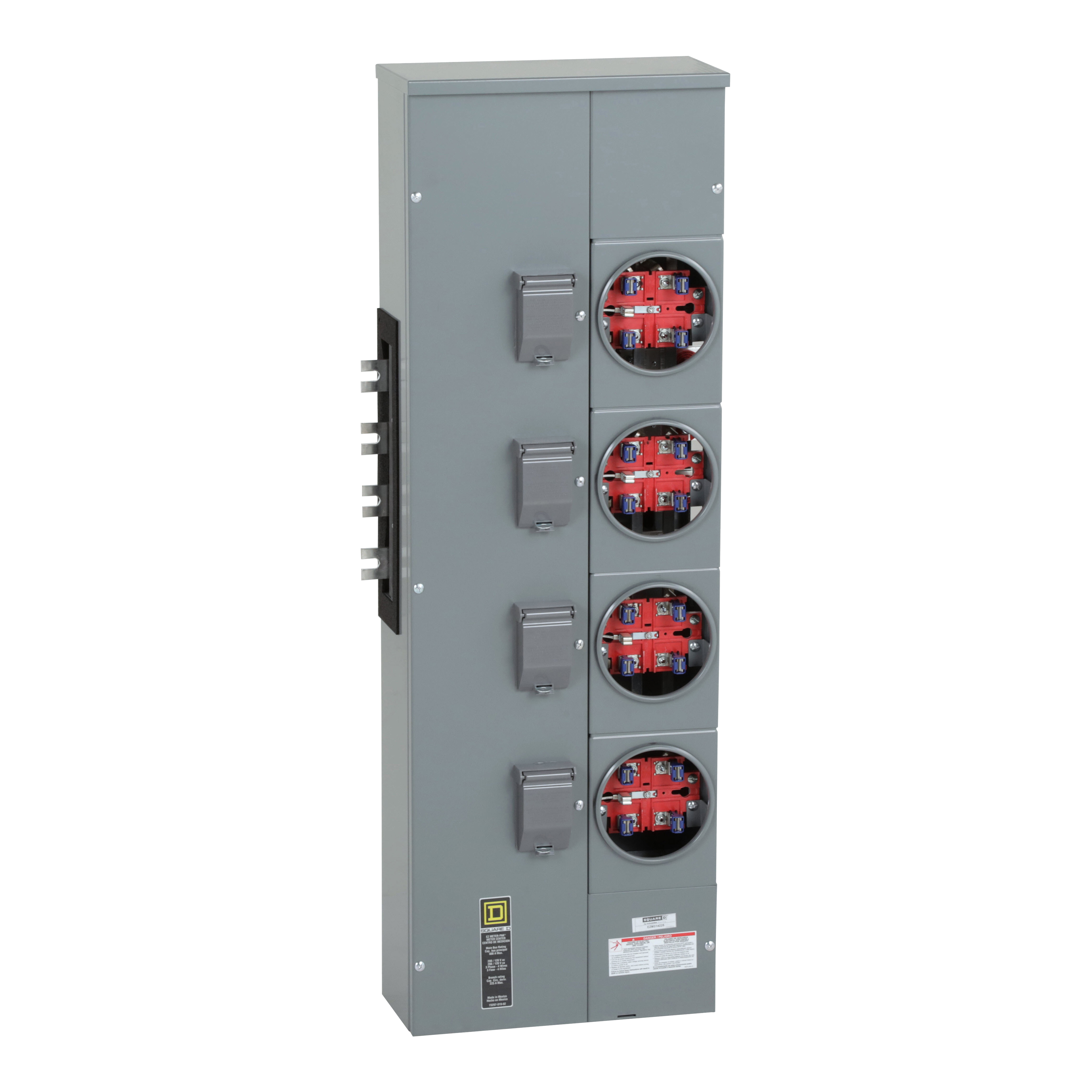

Square D™ Meter-Pak™ EZM314225 EZM 4-Position Meter Center Branch Unit, 208Y/120 VAC, 225 A, 1/3 ph Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™ Meter-Pak™ EZM314225 EZM 4-Position Meter Center Branch Unit, 208Y/120 VAC, 225 A, 1/3 ph Phase, NEMA 3R Enclosure
SKU1160597
MFGR #EZM314225
Your Cost: $1,788.70/ea
List: Square D™ Meter-Pak™ Meter Center Branch Unit, 4-Position, Series: EZM, 208Y/120 VAC, 225 A, 1/3 ph Phase, 5 Jaws, Ring Cover, Surface Mount, NEMA 3R, 52 in H x 17.38 in W x 8.09 in D
Square D™ Meter-Pak™ Meter Center Branch Unit, 4-Position, Series: EZM, 208Y/120 VAC, 225 A, 1/3 ph Phase, 5 Jaws, Ring Cover, Surface Mount, NEMA 3R, 52 in H x 17.38 in W x 8.09 in D
Alternate Catalog Number EZM314225 Application For used as service equipment and use on the line side of service equipment ARRA Compliant N Buy American Compliant N Bypass Type No Bypass Catalog Number EZM314225 Country of Origin MX Currency USD Depth 8.09 in Enclosure Steel EU RoHS Indicator Y Gross Volume Per Pack 10179.18 Gross Volume per Pack Metric 166806.22 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 95.0000 lb Gross Weight per Pack Metric 43.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 24.6000 in Height [Metric] 24.6000 cm Item Group 00020 Length 134.6000 in Length [Metric] 134.6000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357731&lang=en-us Mounting Surface Returnable Y Standard UL LISTED Type Ringed;Meter Center Branch Unit UNSPSC 39121102 UPC 11 78590133327 UPC 12 785901333272 Warranty Description Contractual Warranty:18 months Width 50.3000 in Width [Metric] 50.3000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Phase 3 phase in;1 phase out For used as service equipment and use on the line side of service equipment Aluminium: busbar 3 phase 4-wire service feed, 1 phase 3-wire load feed Aluminum horizontal cross busbar Without bypass
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EZM314225 |
| Application | For used as service equipment and use on the line side of service equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | No Bypass |
| Catalog Number | EZM314225 |
| Country of Origin | MX |
| Currency | USD |
| Depth | 8.09 in |
| Enclosure | Steel |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 10179.18 |
| Gross Volume per Pack Metric | 166806.22 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 95.0000 lb |
| Gross Weight per Pack Metric | 43.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 24.6000 in |
| Height [Metric] | 24.6000 cm |
| Item Group | 00020 |
| Length | 134.6000 in |
| Length [Metric] | 134.6000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357731&lang=en-us |
| Mounting | Surface |
| Returnable | Y |
| Standard | UL LISTED |
| Type | Ringed;Meter Center Branch Unit |
| UNSPSC | 39121102 |
| UPC 11 | 78590133327 |
| UPC 12 | 785901333272 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 50.3000 in |
| Width [Metric] | 50.3000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Phase | 3 phase in;1 phase out |
| For used as service equipment and use on the line side of service equipment |
| Aluminium: busbar |
| 3 phase 4-wire service feed, 1 phase 3-wire load feed |
| Aluminum horizontal cross busbar |
| Without bypass |
