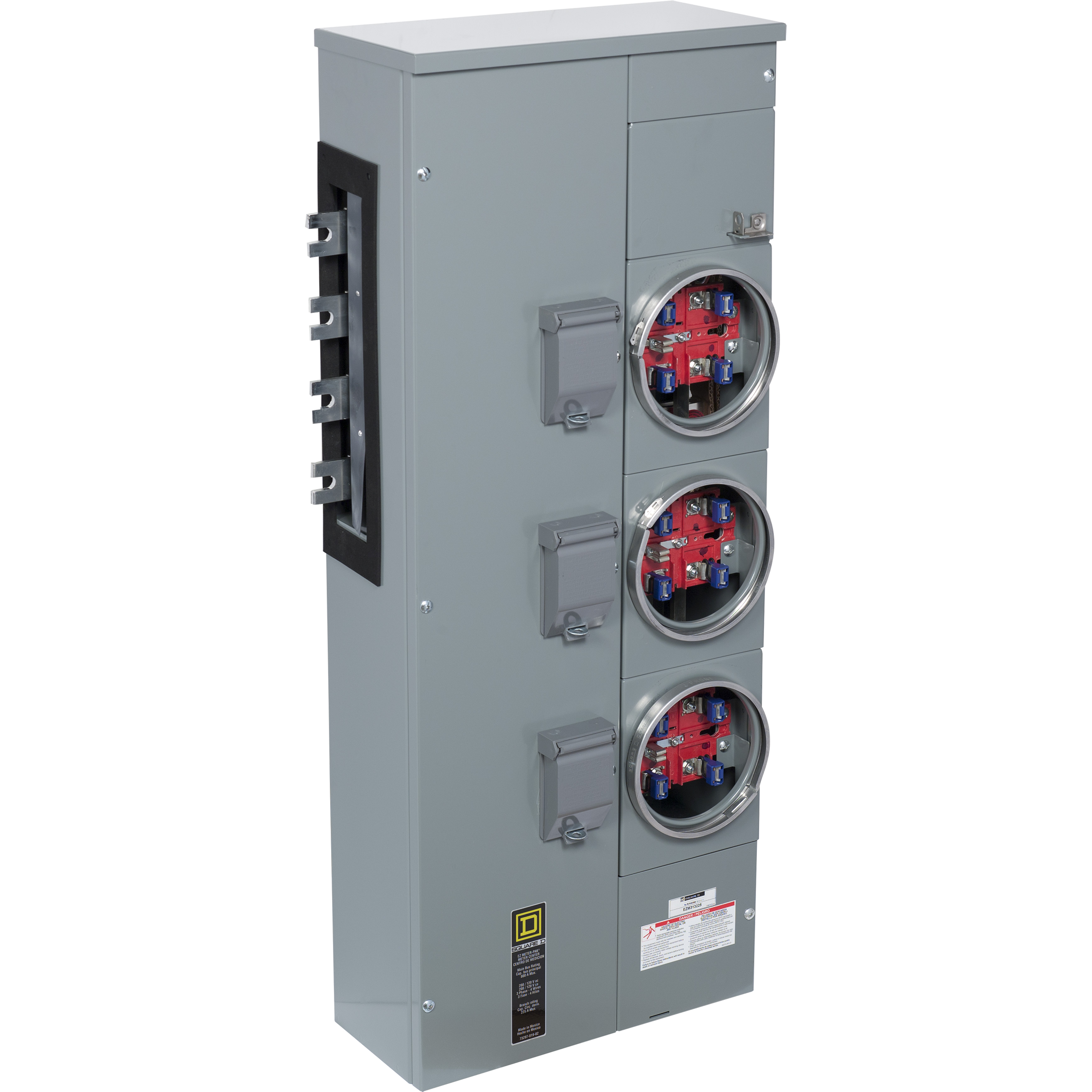

Square D™ Meter-Pak™ EZM313225X 3-Position Meter Center Branch Unit, 208Y/120 VAC, 225 A, 1/3 ph Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™ Meter-Pak™ EZM313225X 3-Position Meter Center Branch Unit, 208Y/120 VAC, 225 A, 1/3 ph Phase, NEMA 3R Enclosure
SKUPDW~6400104
MFGR #EZM313225X
Your Cost: $1,372.13/ea
List: Square D™ Meter-Pak™ Meter Center Branch Unit, 3-Position, Series: EZM, 208Y/120 VAC, 225 A, 1/3 ph, 5 Jaws, Ring Cover, Surface Mount, NEMA 3R, 43.41 in H x 17.38 in W x 8.09 in D
Square D™ Meter-Pak™ Meter Center Branch Unit, 3-Position, Series: EZM, 208Y/120 VAC, 225 A, 1/3 ph, 5 Jaws, Ring Cover, Surface Mount, NEMA 3R, 43.41 in H x 17.38 in W x 8.09 in D
Alternate Catalog Number EZM313225X Application For used as service equipment and use on the line side of service equipment ARRA Compliant N Buy American Compliant N Bypass Type No Bypass Catalog Number EZM313225X Country of Origin US Cover Type Ring Currency USD Depth 8.09 in Dimensions 43.41 in H x 17.38 in W x 8.09 in D Enclosure NEMA 3R,STEEL EU RoHS Indicator Y Gross Weight Per Pack 0.4309 lb Gross Weight per Pack Metric 43.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 110.3000 in Height [Metric] 110.3000 cm Item Group 00020 Length 20.5000 in Length [Metric] 20.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357699&lang=en-us Mounting Surface Mounting Type Surface Number of Jaws 5 Number of Meter Positions 3 Returnable N Series EZM Size 17.38 IN,43.41 IN in Standard UL LISTED Sub Brand METER-PAK Type METER CENTER BRANCH UNIT,RINGED UNSPSC 39121102 UPC 11 78590156953 UPC 12 785901569534 Warranty Description Contractual Warranty:18 months Width 44.1000 in Width [Metric] 44.1000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1200 A,225 A Enclosure Type NEMA 3R Phase 1 PHASE OUT-3 PHASE IN Voltage Rating 120/208 VAC For used as service equipment and use on the line side of service equipment ALUMINIUM/COPPER BUSBAR 3 phase 4-wire service feed, 1 phase 3-wire load feed 1200 A copper horizontal cross busbar Without bypass
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EZM313225X |
| Application | For used as service equipment and use on the line side of service equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | No Bypass |
| Catalog Number | EZM313225X |
| Country of Origin | US |
| Cover Type | Ring |
| Currency | USD |
| Depth | 8.09 in |
| Dimensions | 43.41 in H x 17.38 in W x 8.09 in D |
| Enclosure | NEMA 3R,STEEL |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.4309 lb |
| Gross Weight per Pack Metric | 43.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 110.3000 in |
| Height [Metric] | 110.3000 cm |
| Item Group | 00020 |
| Length | 20.5000 in |
| Length [Metric] | 20.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357699&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number of Jaws | 5 |
| Number of Meter Positions | 3 |
| Returnable | N |
| Series | EZM |
| Size | 17.38 IN,43.41 IN in |
| Standard | UL LISTED |
| Sub Brand | METER-PAK |
| Type | METER CENTER BRANCH UNIT,RINGED |
| UNSPSC | 39121102 |
| UPC 11 | 78590156953 |
| UPC 12 | 785901569534 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 44.1000 in |
| Width [Metric] | 44.1000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1200 A,225 A |
| Enclosure Type | NEMA 3R |
| Phase | 1 PHASE OUT-3 PHASE IN |
| Voltage Rating | 120/208 VAC |
| For used as service equipment and use on the line side of service equipment |
| ALUMINIUM/COPPER BUSBAR |
| 3 phase 4-wire service feed, 1 phase 3-wire load feed |
| 1200 A copper horizontal cross busbar |
| Without bypass |
