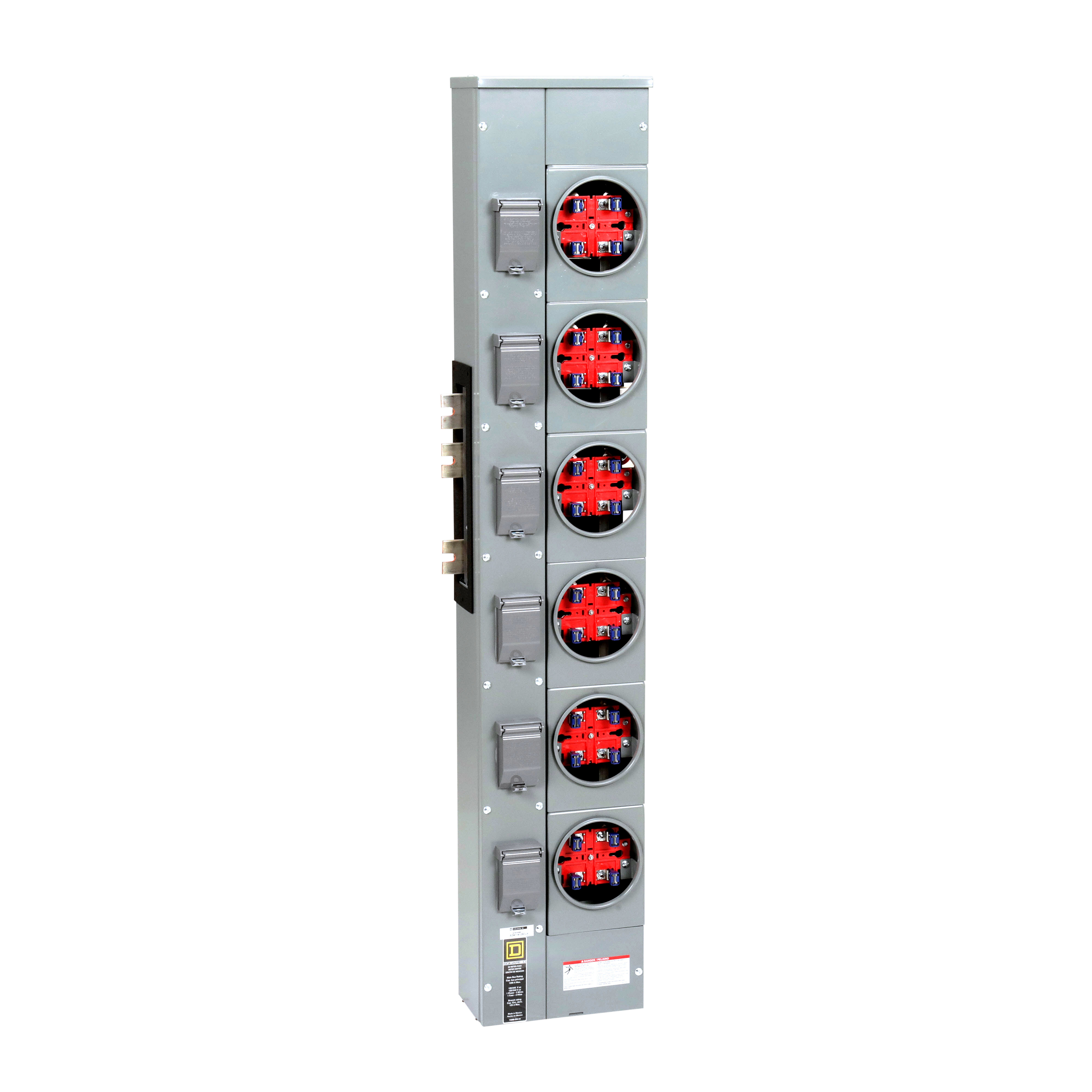

Square D™ Meter-Pak™ EZM116125CUX 6-Position Meter Center Branch Unit, 120/240 VAC, 125 A, 1 ph Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™ Meter-Pak™ EZM116125CUX 6-Position Meter Center Branch Unit, 120/240 VAC, 125 A, 1 ph Phase, NEMA 3R Enclosure
SKUPDW~6907782
MFGR #EZM116125CUX
Your Cost: $4,589.29/ea
Square D™ Meter-Pak™ Meter Center Branch Unit, 6-Position, Series: EZM, 120/240 VAC, 125 A, 1 ph, 4 Jaws, Ring Cover, Surface Mount, NEMA 3R, 66.12 in H x 12.25 in W x 7.09 in D
Square D™ Meter-Pak™ Meter Center Branch Unit, 6-Position, Series: EZM, 120/240 VAC, 125 A, 1 ph, 4 Jaws, Ring Cover, Surface Mount, NEMA 3R, 66.12 in H x 12.25 in W x 7.09 in D
Alternate Catalog Number EZM116125CUX Application For used as service equipment and use on the line side of service equipment ARRA Compliant N Buy American Compliant N Catalog Number EZM116125CUX Country of Origin MX Currency USD Enclosure NEMA 3R,STEEL EU RoHS Indicator Y Gross Weight Per Pack 109.1900 lb Gross Weight per Pack Metric 49.53 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 66.1417 in Height [Metric] 167.9000 cm Item Group 00025 Length 7.0866 in Length [Metric] 18.0000 cm Material COPPER BUSBAR Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357407&lang=en-us Mounting Surface Returnable N Size 12.25 IN,66.12 IN,7.09 IN in Standard UL LISTED Substitute Product Catalog Number 5J Type METER CENTER BRANCH UNIT UNSPSC 39121103 UPC 11 78590118220 UPC 12 785901182207 Upsell Product Catalog Number EZM12000CBU Warranty Description Contractual Warranty:18 months Width 12.2047 in Width [Metric] 31.1000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125 A Phase 1 PHASE IN-1 PHASE OUT Voltage Rating 120/240 VAC For used as service equipment and use on the line side of service equipment COPPER BUSBAR,NO BYPASS 1 ph 3-wire service/load feed 1200 A copper horizontal cross busbar Without bypass
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EZM116125CUX |
| Application | For used as service equipment and use on the line side of service equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EZM116125CUX |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 3R,STEEL |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 109.1900 lb |
| Gross Weight per Pack Metric | 49.53 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 66.1417 in |
| Height [Metric] | 167.9000 cm |
| Item Group | 00025 |
| Length | 7.0866 in |
| Length [Metric] | 18.0000 cm |
| Material | COPPER BUSBAR |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357407&lang=en-us |
| Mounting | Surface |
| Returnable | N |
| Size | 12.25 IN,66.12 IN,7.09 IN in |
| Standard | UL LISTED |
| Substitute Product Catalog Number | 5J |
| Type | METER CENTER BRANCH UNIT |
| UNSPSC | 39121103 |
| UPC 11 | 78590118220 |
| UPC 12 | 785901182207 |
| Upsell Product Catalog Number | EZM12000CBU |
| Warranty Description | Contractual Warranty:18 months |
| Width | 12.2047 in |
| Width [Metric] | 31.1000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125 A |
| Phase | 1 PHASE IN-1 PHASE OUT |
| Voltage Rating | 120/240 VAC |
| For used as service equipment and use on the line side of service equipment |
| COPPER BUSBAR,NO BYPASS |
| 1 ph 3-wire service/load feed |
| 1200 A copper horizontal cross busbar |
| Without bypass |
