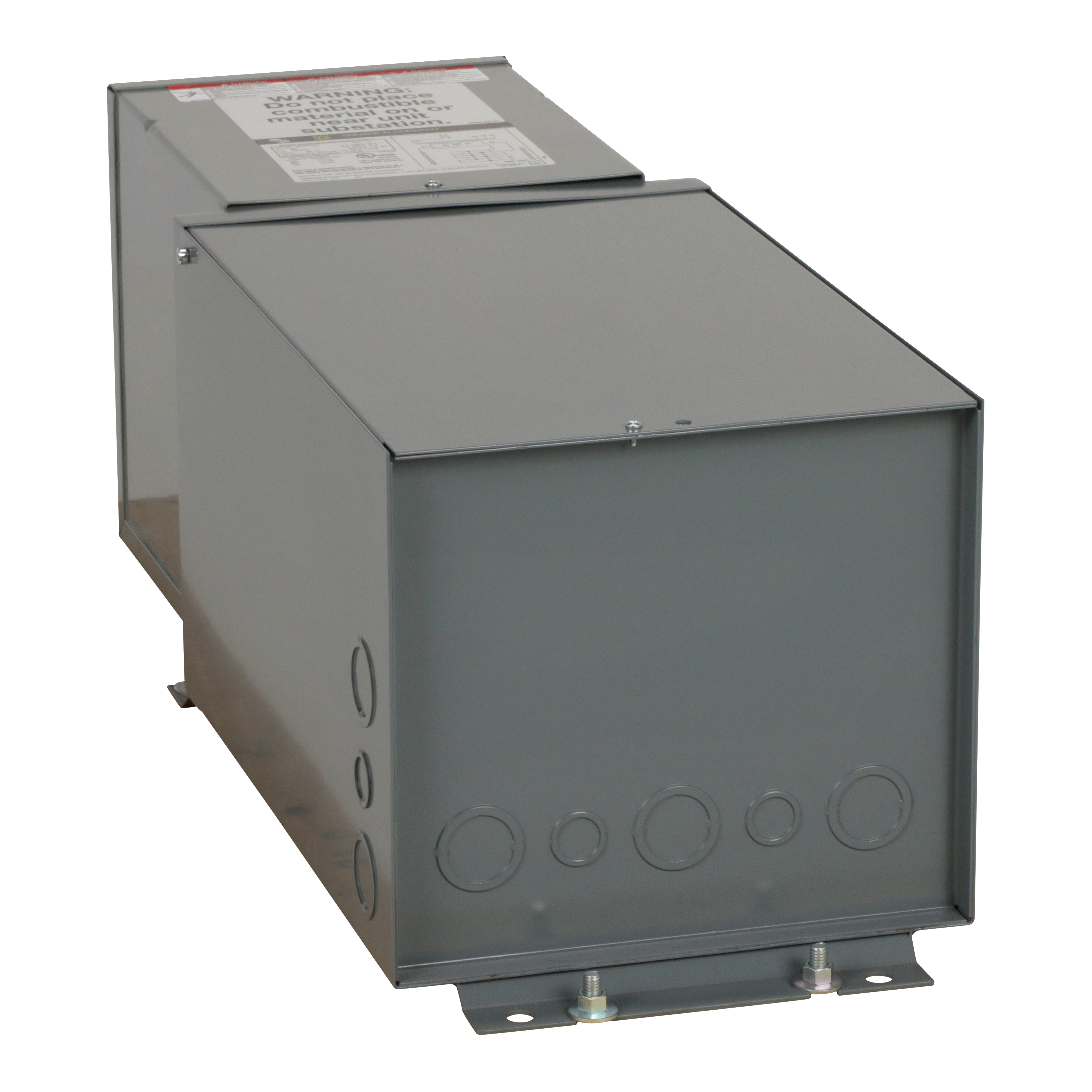

Square D™ MPZ7S40F Sealed Mini Power Transformer, 480 VAC Primary, 120/240 VAC Secondary, 7.5 kVA, 60 Hz, 1 Phase
Custom_Product_Images_Illustration
Square D™
Square D™ MPZ7S40F Sealed Mini Power Transformer, 480 VAC Primary, 120/240 VAC Secondary, 7.5 kVA, 60 Hz, 1 Phase
SKU34707
MFGR #MPZ7S40F
Your Cost: $6,826.65/ea
Square D MPZ7S40F Mini Power Zone 7.5kVA 480-120/240,1 phase,115C,120/240Vac,18 kAIR,185 deg.C,480Vac,7.5 kVA,Mini Power-Zone,Provides the requirements for a portable, compact power supply for small loads,Sealed Transformer,Standard Hot-Rolled Steel (powder coat painted) NEMA 3R - Rainproof and Ice/Sleet proof (Indoor/Outdoor),UL Listed,copper
Square D MPZ7S40F Mini Power Zone 7.5kVA 480-120/240,1 phase,115C,120/240Vac,18 kAIR,185 deg.C,480Vac,7.5 kVA,Mini Power-Zone,Provides the requirements for a portable, compact power supply for small loads,Sealed Transformer,Standard Hot-Rolled Steel (powder coat painted) NEMA 3R - Rainproof and Ice/Sleet proof (Indoor/Outdoor),UL Listed,copper
Alternate Catalog Number MPZ7S40F Application PROVIDES THE REQUIREMENTS FOR A PORTABLE, COMPACT POWER SUPPLY FOR SMALL LOADS ARRA Compliant N Buy American Compliant N Catalog Number MPZ7S40F Country of Origin US Dimensions 32.7 in H x 12 in W x 11.9 in D Enclosure A Enclosure Type NEMA 3R EU RoHS Indicator Y Fuse Rating PRIMARY MAIN BREAKER-SECONDARY MAIN BREAKER-FEEDER BREAKER Gross Weight Per Pack 143.0000 lb Gross Weight per Pack Metric 64.86 Gross Weight UOM Metric kg Height 17.24 in Height [Metric] 44.1960 cm Housing Material Copper Item Group 16275 KVA Rating 7.5 Length 12.18 in Length [Metric] 31.2420 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=457007&lang=en-us Mounting Type Floor/Wall Number Of Taps 2 Returnable N Standard UL Listed Sub Brand MINI POWER-ZONE Temperature Rating 115 °C Type Sealed UNSPSC 39121001 UPC 11 78590183895 UPC 12 785901838951 Warranty Description Contractual Warranty: 18 months Width 31.70 in Width [Metric] 81.2800 cm Winding Copper Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 60 Hz Phase 1 Power Rating 7.5 kVA Primary Voltage 480 VAC Secondary Voltage 120/240 VAC PROVIDES THE REQUIREMENTS FOR A PORTABLE, COMPACT POWER SUPPLY FOR SMALL LOADS SEALED TRANSFORMER,COPPER Mini power-zone range of product 18 kA short circuit current 24 number of spaces 24 number of circuit NEMA 3R hot rolled steel enclosure (2) 5% FCBN taps Standard hot rolled steel (powder coat painted) NEMA 3R Rainproof and ice/sleet proof (indoor outdoor)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | MPZ7S40F |
| Application | PROVIDES THE REQUIREMENTS FOR A PORTABLE, COMPACT POWER SUPPLY FOR SMALL LOADS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | MPZ7S40F |
| Country of Origin | US |
| Dimensions | 32.7 in H x 12 in W x 11.9 in D |
| Enclosure | A |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Fuse Rating | PRIMARY MAIN BREAKER-SECONDARY MAIN BREAKER-FEEDER BREAKER |
| Gross Weight Per Pack | 143.0000 lb |
| Gross Weight per Pack Metric | 64.86 |
| Gross Weight UOM Metric | kg |
| Height | 17.24 in |
| Height [Metric] | 44.1960 cm |
| Housing Material | Copper |
| Item Group | 16275 |
| KVA Rating | 7.5 |
| Length | 12.18 in |
| Length [Metric] | 31.2420 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=457007&lang=en-us |
| Mounting Type | Floor/Wall |
| Number Of Taps | 2 |
| Returnable | N |
| Standard | UL Listed |
| Sub Brand | MINI POWER-ZONE |
| Temperature Rating | 115 °C |
| Type | Sealed |
| UNSPSC | 39121001 |
| UPC 11 | 78590183895 |
| UPC 12 | 785901838951 |
| Warranty Description | Contractual Warranty: 18 months |
| Width | 31.70 in |
| Width [Metric] | 81.2800 cm |
| Winding | Copper |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 7.5 kVA |
| Primary Voltage | 480 VAC |
| Secondary Voltage | 120/240 VAC |
| PROVIDES THE REQUIREMENTS FOR A PORTABLE, COMPACT POWER SUPPLY FOR SMALL LOADS |
| SEALED TRANSFORMER,COPPER |
| Mini power-zone range of product |
| 18 kA short circuit current |
| 24 number of spaces |
| 24 number of circuit |
| NEMA 3R hot rolled steel enclosure |
| (2) 5% FCBN taps |
| Standard hot rolled steel (powder coat painted) NEMA 3R |
| Rainproof and ice/sleet proof (indoor outdoor) |
